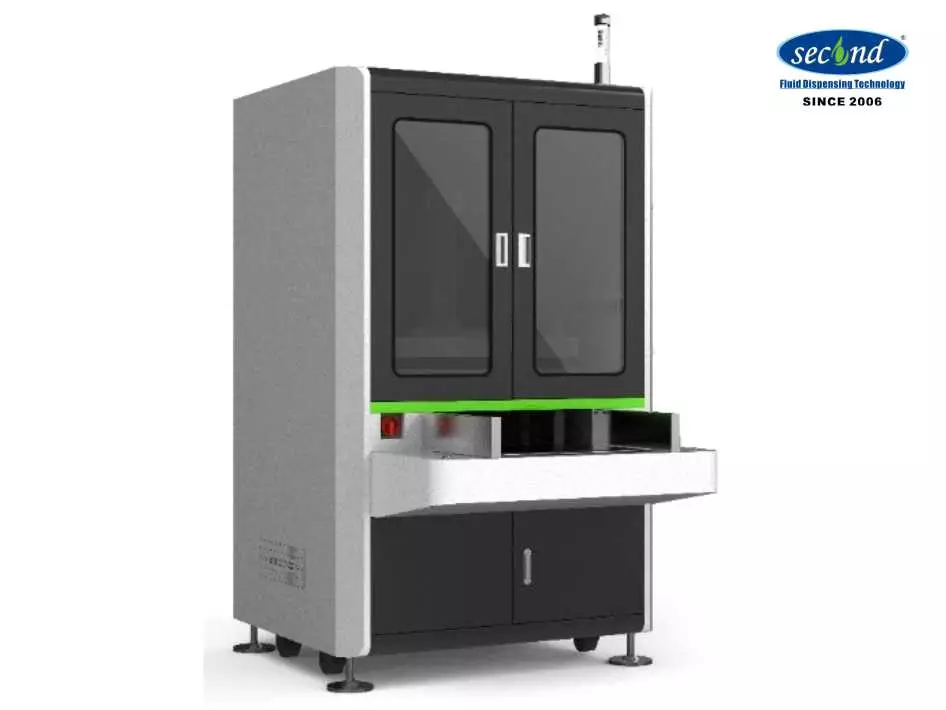

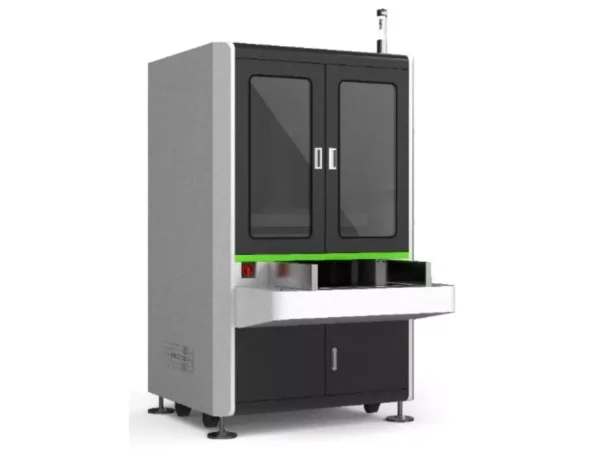

Air tightness testing machine (compatible with bipolar plate, and MEA air tightness testing need, multi-purposes) – SEC-H500-AT

Air tightness testing machine (compatible with bipolar plate, and MEA air tightness testing need, multi-purposes) – SEC-H500-AT

This is multi-purposes machine, it can realize the air tightness detection of hydrogen fuel cell bipolar plate, MEA monolithic, and multi-sheet/layers of air-tightness test.

Description

Introduction

Hydrogen fuel cell battery is getting more important as an alternative power source for automotive vehicles, and also more and more stationary power supply are being developed. It is also a type of green energy, it has zero emission. Most of the machines and production lines we listed on this web-site have been built and sold to many clients already, and they have been proved success and reliable.

The company has begun to enter into the field of hydrogen fuel cell equipment in 2014. After years of researches and developments, combined the good experience in automated adhesives dispensing knowledge and the hydrogen fuel cell battery fabricating know-how, the company has successfully developed and sold various type of PEM FC bipolar plate automatic dispensing, sealing, and packaging machines as well as production lines. We also provide the membrane electrode assembling, packaging, machine, and production lines as well as automatic battery stacking machine, air tightness testing machine, testing and inspecting machines, fully automatic stack system, assembly production lines and other related equipment. We have established a subsidiary company name Suzhou Second Hydrogen Energy Technology Co., Ltd for this section of business, Shenzhen Second Intelligent Equipment Co. Ltd. is the mother-company. Please feel free to contact us, we provide free evaluation, proposal, and looking into long-term cooperation partnership to develop the businesses, and gives the Earth one more green energy option.

Equipment introduction

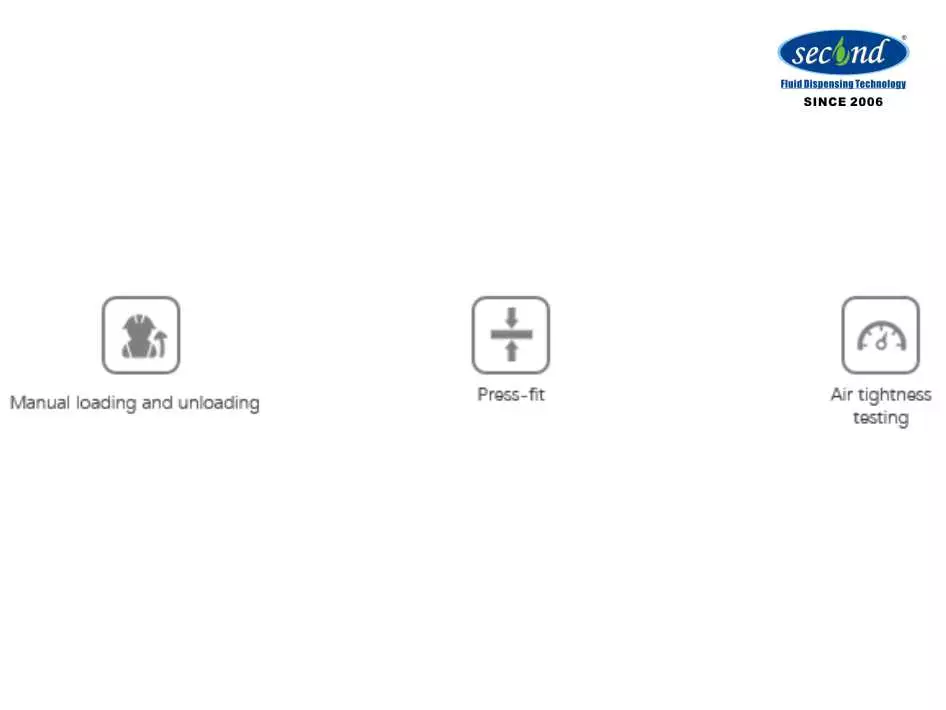

  • One working station to implement air tightness testing.
  • Smart positioning system to realize the pre-positioning of the tested material.
  • Sealing system to seal the cavity of the material to be tested.

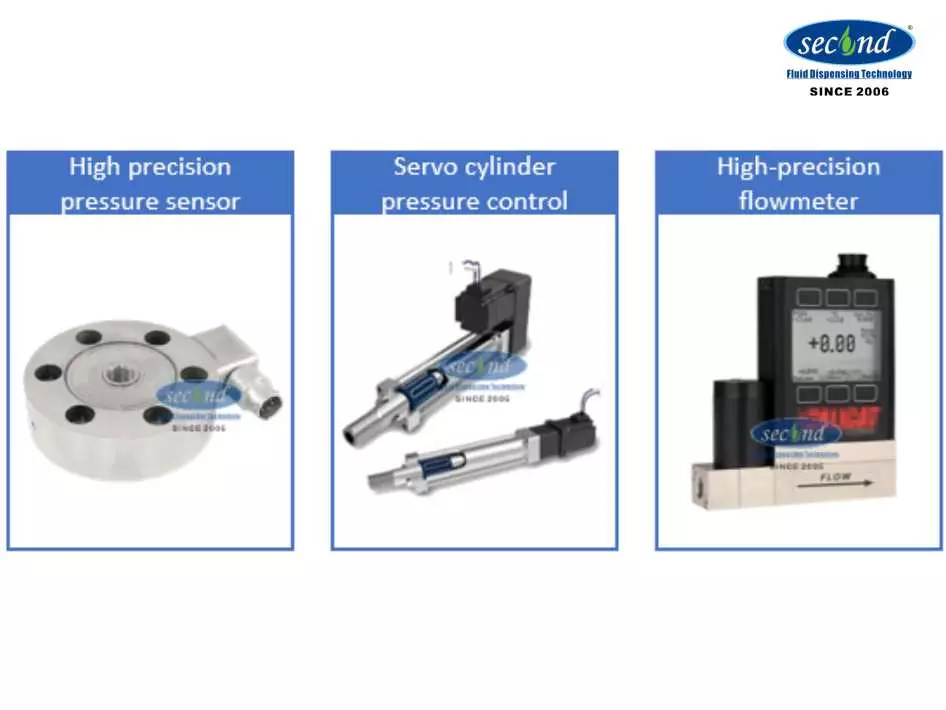

  • Smart detection system with pressure gauge and flow meter.
  • High quality servo pressing system adopts servo electric cylinder to control the air tightness detection position.
  • Advance pressure control system, which can use displacement or pressure mode to effectively control the pressure on the product.
  • Smart information management system can realize the transmission and automatic storage of process data such as movement, glue supply and dispensing, compatible with MES system and CIM system data communication, and supports one-key backup.

Main functions

  • Auto positioning system
  • Material auto in and out conveying system
  • Sealing system
  • Smart detection Systems
  • Servo pressing system
  • Pressure control system
  • Smart information management system

Optional functions

  • Barcode scanner

Specification

Model

SEC-H500-AT

Applicable product range

500(X)╳300(Y) ╳100(Z)mm

Electric cylinder running speed

0~40mm/s

Rated preset pressure

3T

Air pressure measurement range

0-300kpa

Pressure gauge sensitivity

≤0.1kPa

Flow able range

0~2mL/min or 0~5mL/min

Detection method

Flow method

Inspection media

Air / Nitrogen

Flowmeter resolution

0.001mL/min

Detection time

0~5min (Adjustable)

Operating control

PLC

Power supply

AC220V,50-60HZ  3Kw

Machine footprint

L1200╳W1100╳H2000mm

Machine weight

About 1000Kg

Working environment

Humidity:20-90%,  Temperature: 0-40℃
