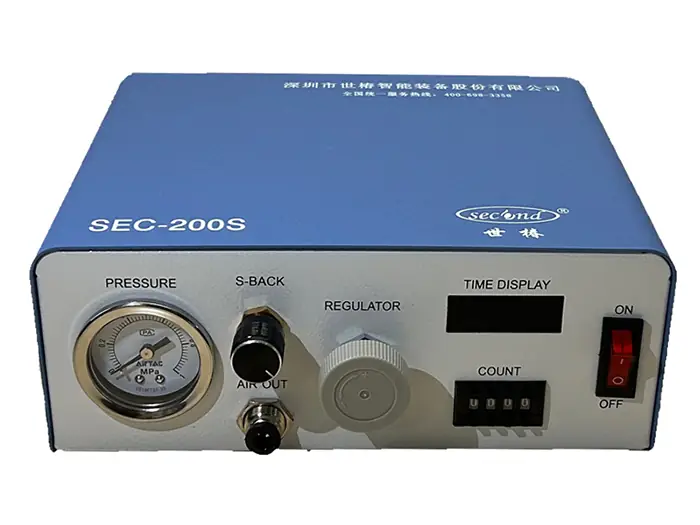

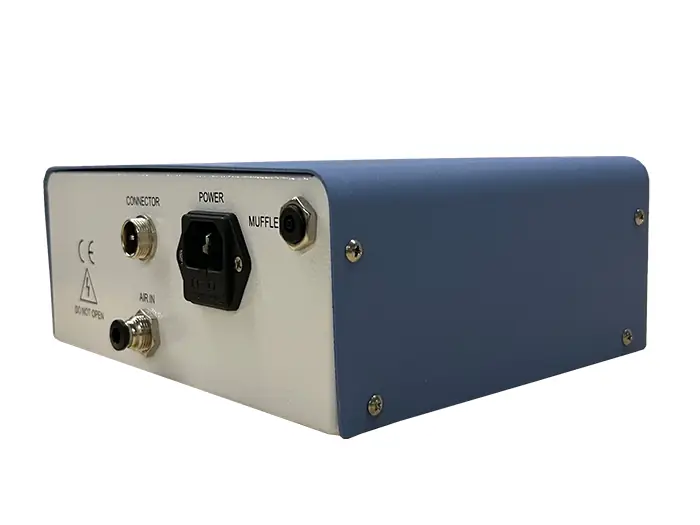

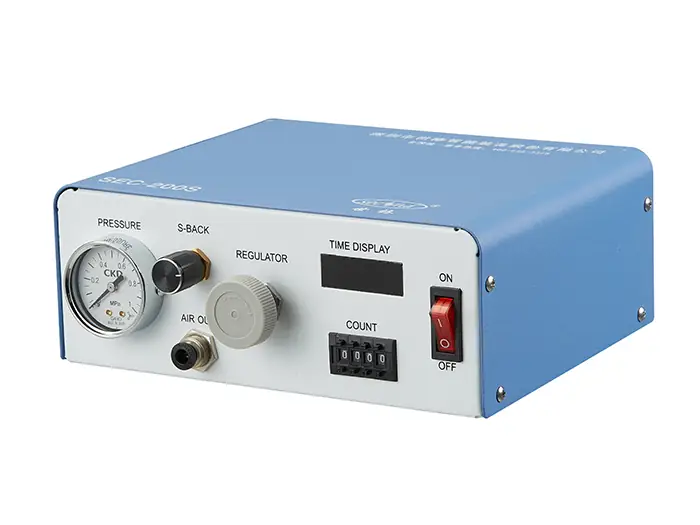

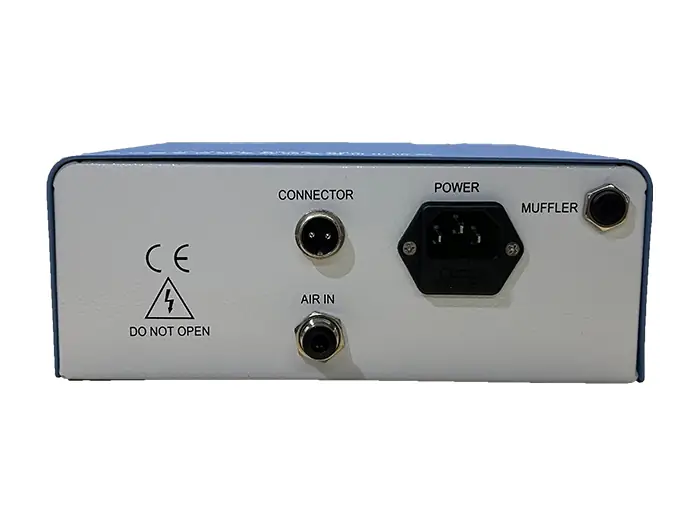

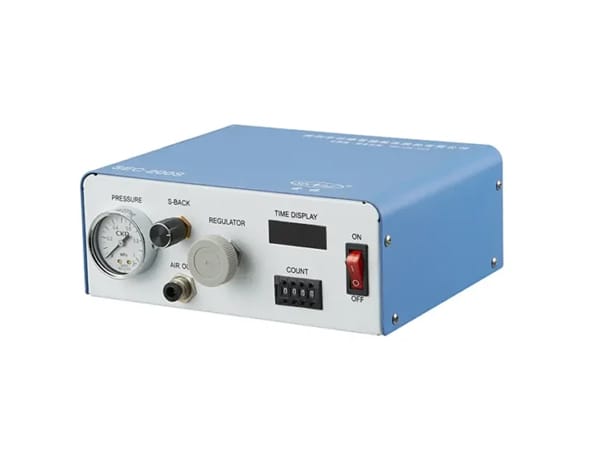

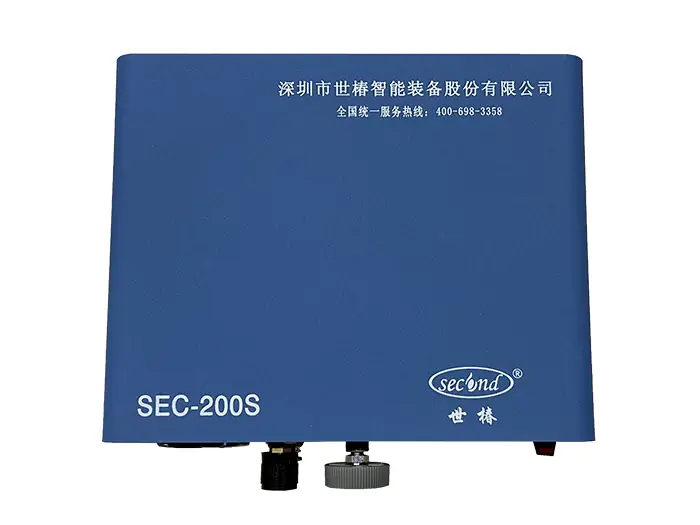

High-precision liquid dispensing controller for glue dispensing machine SEC-200S

Home|MACHINES|Glue Dispenser Controller|High-precision liquid dispensing controller for glue dispensing machine SEC-200S
liquid dispensing controller
Glue-Dispenser-Controller
glue-dispensing-controller
Glue-Dispensering-Controller
liquid dispensing controller

High-precision liquid dispensing controller for glue dispensing machine SEC-200S

Product Introduction：

SEC-200S digital display high-precision glue dispenser adopts the latest single-chip microcomputer technology and is professionally produced in China. It is widely used in electronics, aviation, optics, automobiles, watches, medical, petroleum, packaging, jewelry and machinery.
The biggest feature of the SEC-200S high-precision glue dispenser is that it can easily dispense uniform amounts of liquid that have been precisely adjusted, bringing high-quality products, improving production efficiency, and ensuring both quality and quantity in the production process.
The glue dispenser is small in size, easy to use, can work reliably for a long time under various environmental conditions, and has a long service life. Because it is equipped with a full set of different accessories, it can be applied to different industries.

Using the novel SEC-200S precision glue dispenser controller can bring you perfect and ingenious craftsmanship.

Category: Tags: , , , ,

Description

Features:

Extremely user-friendly, the time quantitative value can be input directly from the panel buttons and can be increased or decreased. When gluing, the display will jump from zero to the set time.

Product parameters:

1. Microcomputer control
2. Timing time display 0.001 to 9.999
3. Repeat accuracy 0.005 seconds
4. Learn the TEACCH function

5. Time memory does not disappear

6. Adjustable fluid pressure, 0 to 120 PSI (0 to 8.0KG)

Technical performance indicators

Time display: four-digit LED display
Liquid supply time: 0.001S-9.999S, 0.01S-99.99S ​​(set by the switch inside the machine)
Input air pressure: 0.5Mpa–0.7Mpa
Output air pressure: 0.01Mpa–0.7Mpa
Repeat time error: ±0.1%
Minimum drop volume: 0.005ml
Working speed: > 600 times/min
Input voltage: 110V/220V±10% 50Hz
Power consumption: <15W
Weight: <3Kg
Standard accessories: host, power cord, air compressor tube, syringe stand, manual switch, foot switch,

Key attributes
Other attributes

Place of OriginGuangdong,China
ConditionNew
Weight (kG)4
Video outgoing-inspectionProvided
Machinery Test ReportProvided
Marketing TypeOrdinary Product
Warranty of core components1 Year
Core Componentscontroller
Warranty1 Year
Applicable IndustriesEnergy & Mining
Showroom LocationNone
Brand NameSecond
ModelSEC-200S
Timer display:0.001 to 9.999
repeating accouracy:0.005sec
repeating accuracy:0.005sec
adjustable fluid pressure:0 to 120 PSI(0.-8.0KG)
GuarantY1 year

Principle

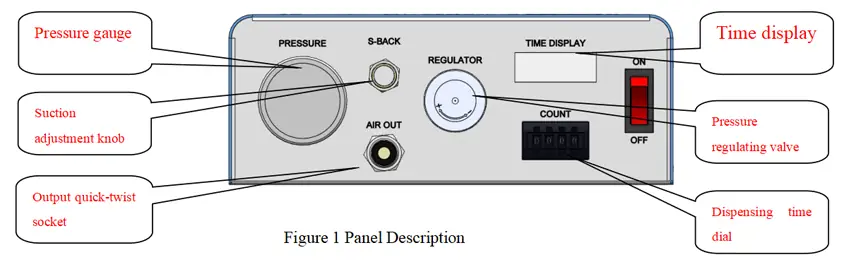

The main engine is composed of an adjustable pressure reducing gas circuit, a pneumatic control device, a vacuum control circuit, a programmable timing circuit, a display and a power supply, etc. The panel is illustrated in Figure 1.

glue-dispensing-controller

The compressed air pressure in the factory is connected to the YD1800 type pressure reducing air circuit through a quick connector. On the other hand, the negative pressure generated by the vacuum control circuit generates negative pressure in the syringe through the solenoid valve to prevent liquid leakage. Since the pneumatic control device is controlled and converted by a programmable controller, the air pressure drives the liquid to drip out automatically through the control device. See the figure for the installation instructions of the whole machine

You may ask

Main Features and Parameters

Model: SEC-200S Timer display: 0.001 to 9.999 repeating accouracy: 0.005sec Function of learning teach Ever-lasting time memory adjustable fluid pressure: 0 to 120 PSI(0.-8.0KG) Gurantee for 1 year

Automatic dispensing machine controllers

Glue-Dispenser-Controller

Production workshop

automatic hot glue dispenser

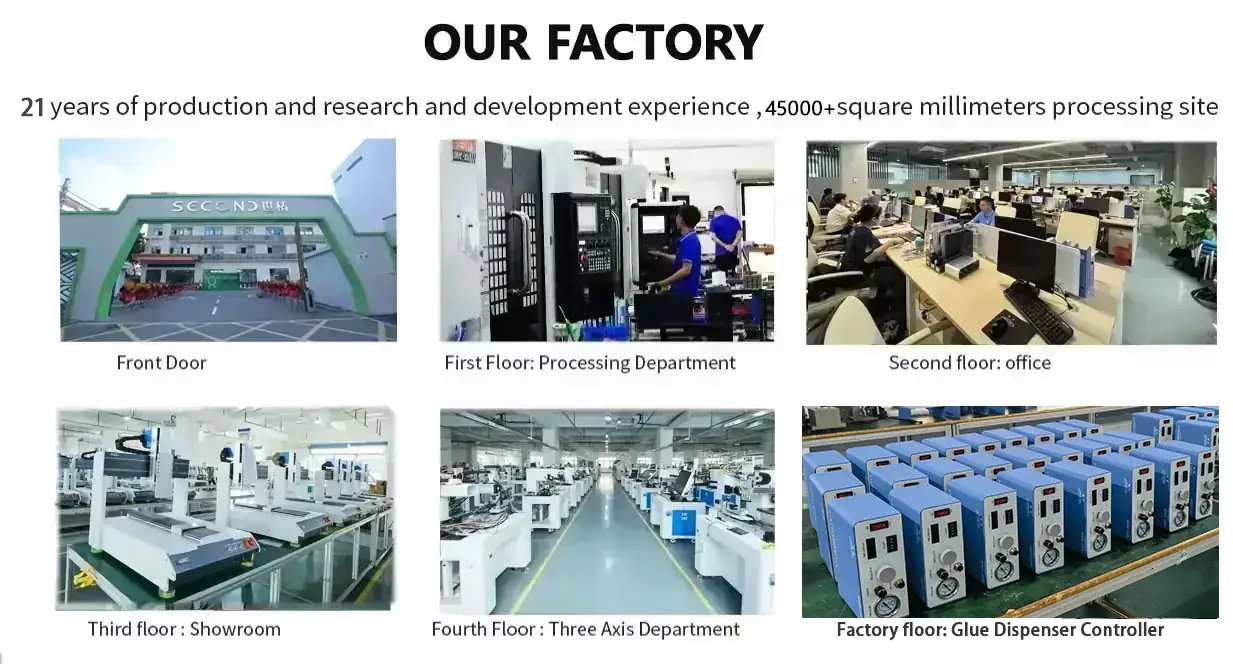

OUR FACTORY (A3)

cnc-glue-dispenser-machines

Logistics packaging collection

hot-melt-dispensing-equipment

SOLUTION

2-parts AB adhesive materials 1

Material

Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.

This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).

Control

1. The machine is user friendly, and operating by Window base software.

2.The software is design and developed by Second Intelligent.

3.With over 15 years in dispensing and potting, the software has included all of the functions that meets dispensing and potting needs. And it has been fine tuned and debugged well to provide good quality output.

4.The software has English instruction, and we welcome your language as well.

5.It is absolutely user friendly. With this computer system, it comes with an internet remote control access function, this allow us to help operator to conduct troubleshooting of the software, and can be used as an online instruction as well. It is welcomed, easy and helpful for international service and support.

silicone glue dispensing machine
liquid glue dispensing machine
liquid glue dispensing machine

LED Driver, Power-supply

Our two-component vacuum chamber potting machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

liquid glue gun dispenser

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

robot glue dispensing machine

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

glue applicator machine manufacturers

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).

FAQ

1.Are you trading company or manufacturer?2021-08-26T11:19:43+08:00

We are direct manufacturer.

2.What is your terms of packing?2021-08-26T11:20:44+08:00

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?2021-08-26T11:21:07+08:00

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?2021-08-26T11:24:19+08:00

EXW, FOB,CIF…

5.Can you produce according to the sample testing?2021-08-26T11:22:35+08:00

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?2021-08-26T11:22:44+08:00

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?2021-08-26T11:22:53+08:00

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?2021-08-26T11:24:59+08:00

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?2021-08-26T11:25:18+08:00

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?2021-08-26T11:26:02+08:00

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
