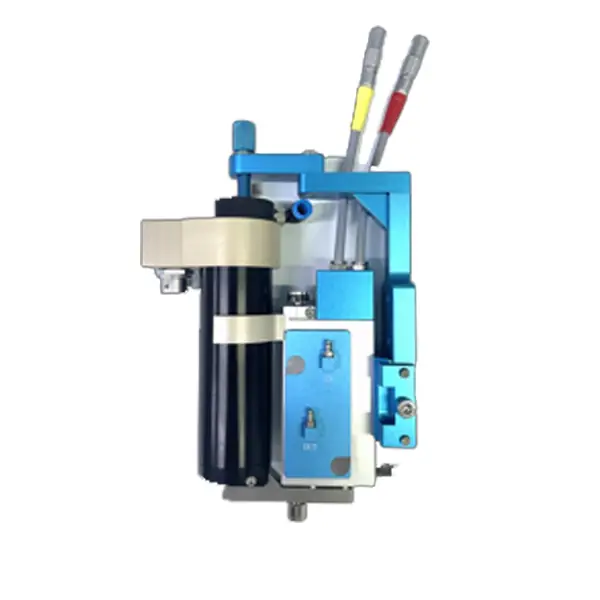

High-precision pneumatic stainless steel Pneumatic jet glue dispensing valve

Features:

1. Used for fluid metering and shut-off action in the flow channel, with a firing pin type shut-off glue.
2. Suitable for low and medium viscosity fluids.
3. High precision glue volume control.
4. Electronic volume control.
5. Rich optional configuration.
6. Compared with the pneumatic injection valve has a faster speed, higher precision.

Description

Specifications:

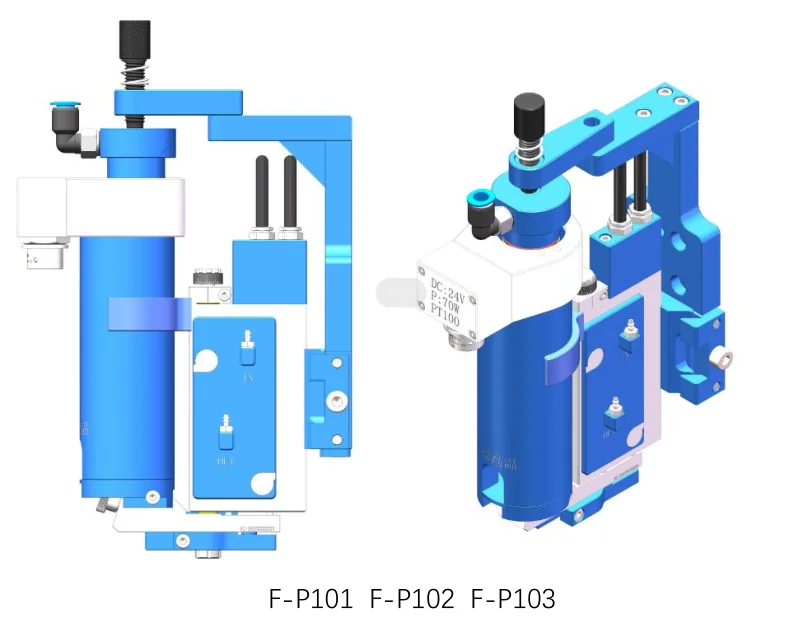

ModelF-P101F-P102F-P103
Dimensions220*55*105mm220*55*105mm220*55*135mm
Weight540g600g850g
Driving methodMotorized
Runner Stainless steel
Nozzle and needle materialTungsten steel/Ceramic
Applicable glue viscosity0-100000cps
 Seal materialPEEK/PTFE/PE/FKM
Maximum working frequency
800HZ
Minimum single point diameter
0.2mm
Minimum scribing size0.25mm
Seals Life one week
 nozzle firing pin life
 three months
minimum glue volume2nl/Point
Point line width accuracy
±3%
nozzle heating temperature20~180℃
glue cylinder heating temperature
20~200℃
CE certification
Italy, Spain
Glue spotting must be verified
Yes, including (Appearance, size, type: airtightness, flow testing, etc.)

Packaging and delivery

Packaging Detailswooden case or as your request

Supply Ability

Supply Ability300 Set/Sets per Month

Lead time

Quantity (sets)1 – 12 – 10> 10
Lead time (days)1630To be negotiated
