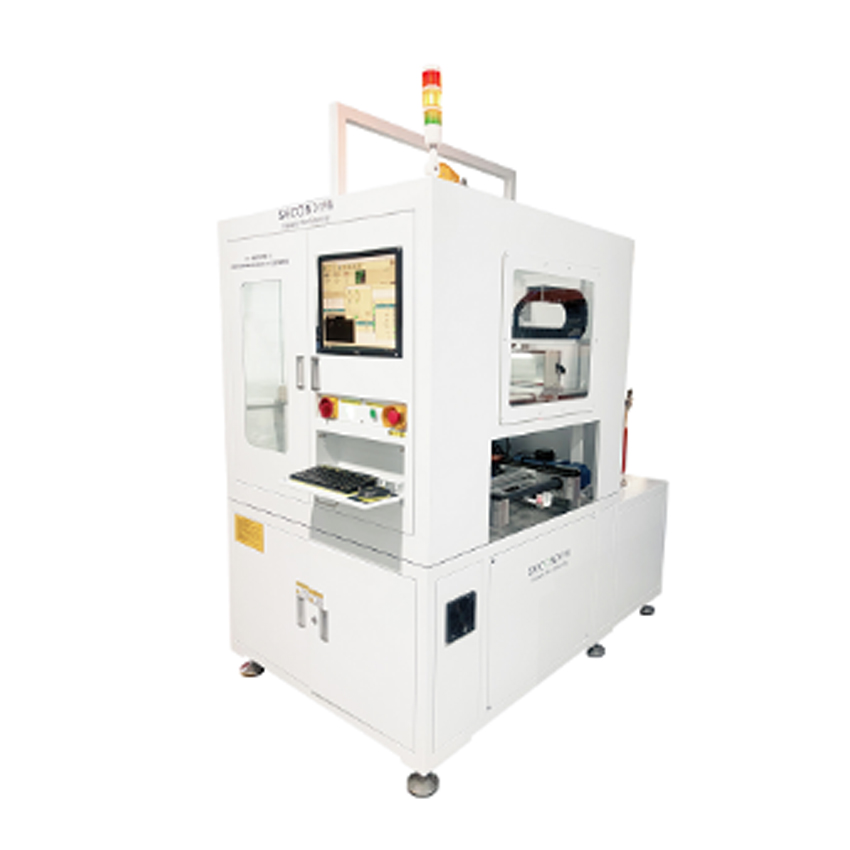

Feature:
● IPC + Second intelligent motion control card integrated with advanced algorithms, together with high-precision three-axis manipulator, realizes three-dimensional high-speed and precise movement.
● Inline potting and rail conveying can be connected to equipment such as docking stations and curing ovens to achieve fully automatic assembly line operations.
● Through precise control of the metering motor, it can achieve precise proportioning, automatic mixing and automatic potting of two-component glue.
● With vacuum feeding, vacuum degassing, optional heating, stirring, automatic cleaning, pressure monitoring and other functions, cancope with a variety of complex glue environment.
● Unique industrial design, generous appearance, compact structure, genuine windows system, stable machine, friendly operation interface, cost-effective!
PRODUCT DETAILS
1.Closed-loop Precise Metering, Reducing Material Waste
The machine uses stepper motors + gear pumps/screw pumps for metering, with an adhesive mixing ratio infinitely adjustable from 1:1 to 10:1 . The ratio and dispensing accuracy can reach ±2%, far superior to the ±5% or greater error of manual operations, effectively preventing defects such as incomplete curing, cracking, and yellowing. The equipment is equipped with vacuum feeding, vacuum degassing, optional heating, stirring, automatic cleaning, and monitoring functions. It has completed validation and Mass Production with over 2,000 complex adhesive formulations , effectively reducing adhesive waste.
2.Three-Axis Flexible Movement, Adapting to Multi-Variety Production
Equipped with Seki Smart’s self-developed motion controller + IPC + display, combined with a high-precision three-axis manipulator, the machine achieves high-speed three-dimensional precision movement. Effective travel is 500×500×100 mm , XY axis speed is 0–500 mm/s , and potting speed is 1–30 g/s . It can perform three-dimensional trajectory potting on irregularly shaped workpieces and deep-cavity components. The machine features a bilingual (Chinese/English) operating system and can store hundreds of production programs, perfectly adapting to factories’ needs for small-batch, multi-variety production.
3.Modular Design, Supporting 24/7 Stable Mass Production
Comes with an adjustable-width conveyor track that can connect to upstream and downstream workstations for automated operation. The standard vacuum degassing unit eliminates bubbles in the adhesive, enhancing component protection. The system runs stably with a user-friendly interface and has proven capabilities for both independent workstation operation and inline automation integration. Production efficiency is increased by 3–5 times compared to manual operations, ensuring uninterrupted 24/7 production.
4.Strong Compatibility, Suited for Local Eurasian Industries
Suitable for automatic potting of various two-component adhesives with viscosity < 20,000 cps , widely used in automotive electronics and new energy, industrial electronics and power supplies, home appliances, consumer electronics and telecommunications, semiconductors, medical and aerospace , and many other fields. A single machine can interface with multiple production lines, helping companies reduce fixed asset investment.
Supporting Systems
Material
Two parts silicone, resin, epoxy, polyurethane and other AB fluids, adhesive glues material that require to be automatic degassing, mixing, potting, casting base on ratio and dosing continuously, homogenously.
MANUFACTURING
As two-component materials’ applications are getting more and more important for various types of manufacturing demands, the needs of the automated mixing and potting machines are increased also.
CASE
In this case, customer needs to dispense 2-parts AB adhesive materials to seal off the LED lights for waterproof. Our engineer recommended S3030C. The machine equips with automatic CNC Cartesian robot, and AB materials onboard material prepping tanks. The machine provides automatic material drawing, degassing, metering, mixing, and dosing function, which allows the machine to perform automatically and free the operator for other work. Moreover, dosing materials on such small items can cause repeating work-injury, so with robot, it is safe and effective. Contact us for free evaluation and proposal.

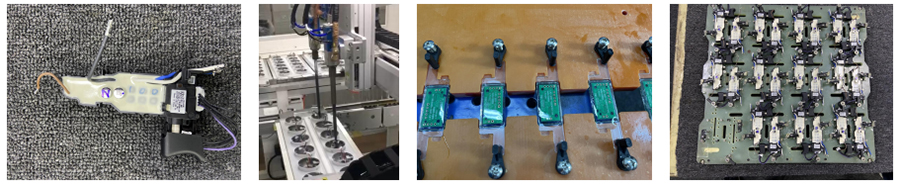

Dispensing process:
Multi-valve picture display
Advantages
- It doesn’t require special dispensing pallets, so that saves a lot of NPI cost.
- Provides great convenience for the production line with a variety of products.
- This machine equips with an inline conveyor, easy to convey pallets in and out automatically.
- Seamless integration into different manufacturing line.
- Works well in medium, large scale of factories to provide high level automation production.
Industry Applications:
In-line automatic potting, high degree of automation, various types of two-component glue automatic potting, PCB board industry, electronic component industry, electric light source industry, small household appliance industry, ignition industry, automotive supply industry, vacuum cleaner industry, filter industry and many other fields
Suitable for automatic potting of various two-component adhesives with viscosity < 20,000 cps, widely used in automotive electronics and new energy, industrial electronics and power supplies, home appliances, consumer electronics and telecommunications, semiconductors, medical and aerospace, and many other fields. A single machine can interface with multiple production lines, helping companies reduce fixed asset investment.
SOLUTION
Material
Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.
This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which is able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).
Control
1. The machine is user friendly, and operating by Window base software.
2.The software is designed and developed by Second Intelligent.
3.With over 15 years in dispensing and potting, the software has included all of the functions that meet dispensing and potting needs. And it has been fine tuned and debugged well to provide good quality output.
4.The software has English instruction, and we welcome your language as well.
5.It is absolutely user friendly. With this computer system, it comes with an internet remote control access function, this allow us to help operator to conduct troubleshooting of the software, and can be used as an online instruction as well. It is welcomed, easy and helpful for international service and support.
