Description

Introduction：
Hydrogen fuel cell battery is getting more important as an alternative power source for automotive vehicles, and also more and more stationary power supply are being developed. It is also a type of green energy, it has zero emission. Most of the machines and production lines we listed on this web-site have been built and sold to many clients already, and they have been proved success and reliable.
The company has begun to enter into the field of hydrogen fuel cell equipment in 2014. After years of researches and developments, combined the good experience in automated adhesives dispensing knowledge and the hydrogen fuel cell battery fabricating know-how, the company has successfully developed and sold various type of PEM FC bipolar plate automatic dispensing, sealing, and packaging machines as well as production lines. We also provide the membrane electrode assembling, packaging, machine, and production lines as well as automatic battery stacking machine, air tightness testing machine, testing and inspecting machines, fully automatic stack system, assembly production lines and other related equipment. We have established a subsidiary company name Suzhou Second Hydrogen Energy Technology Co., Ltd for this section of business, Shenzhen Second Intelligent Equipment Co. Ltd. is the mother-company. Please feel free to contact us, we provide free evaluation, proposal, and looking into long-term cooperation partnership to develop the businesses, and gives the Earth one more green energy option.

Equipment introduction：

High precision bipolar plate dispensing station.

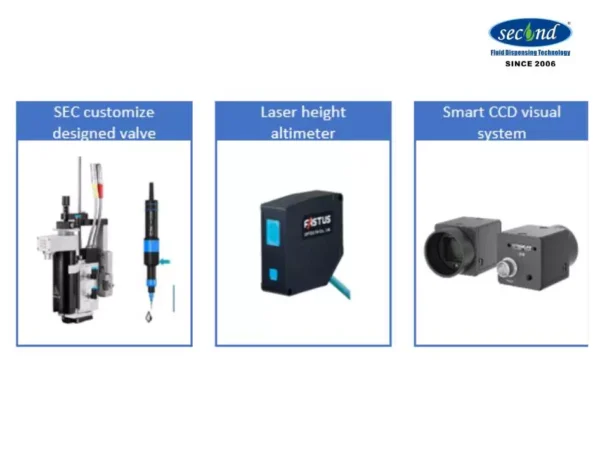

Smart CCD visual system, which can realize positioning, size measurement, QR code scanning, and auxiliary programming;
Smart laser height measurement system, which can realize the optimization of product deformation adaptive dispensing trajectory;
Air-suction dispensing table, can realize product positioning, compatible with graphite plate, composite plate, metal plate;
Smart material feeding system, which can realize glue shortage alarm, low air pressure alarm, and abnormal temperature alarm;
Precision dispensing system, which can achieve a minimum glue amount of 0.001ml, glue application accuracy CPK>1.33, adapt to glue viscosity <40000cps;
Automatic nozzle cleaning system, automatically and regularly clean the nozzle;
Smart information management system can realize the transmission and automatic storage of process data such as movement, glue supply and dispensing, compatible with MES system and CIM system data communication, and supports one-key backup;
Smart dispensing software control system, supports automatic import of CAD files, and supports 3D interpolation

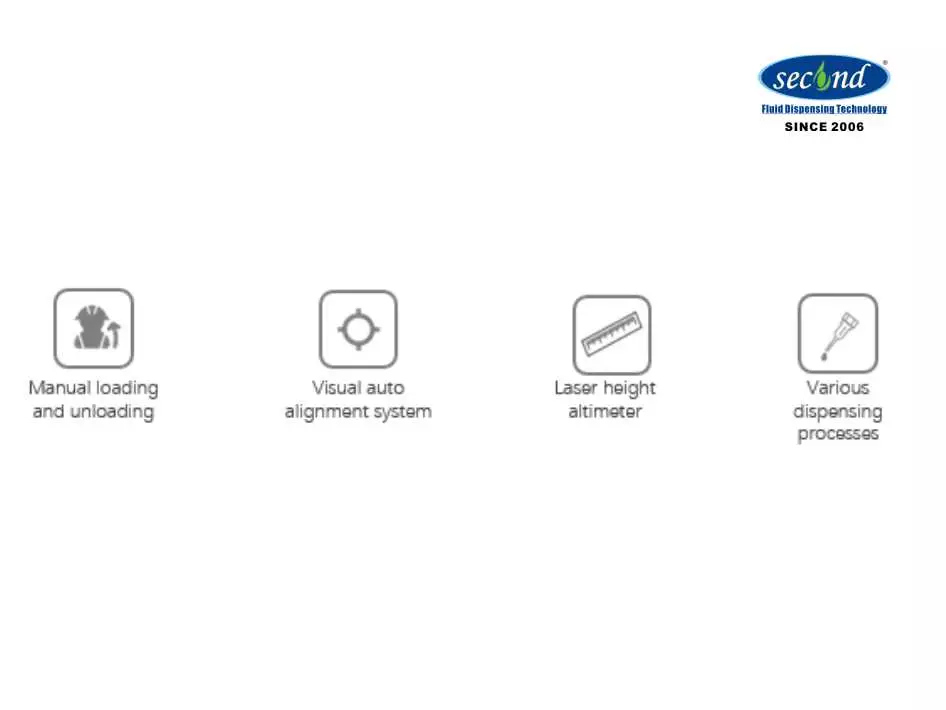

Main functions:

Digital material weighing system
Dedicated precise positioning platform
Automatic nozzle alignment system

Optional functions：

Digital material weighing system
Dedicated precise positioning platform
Automatic nozzle alignment system

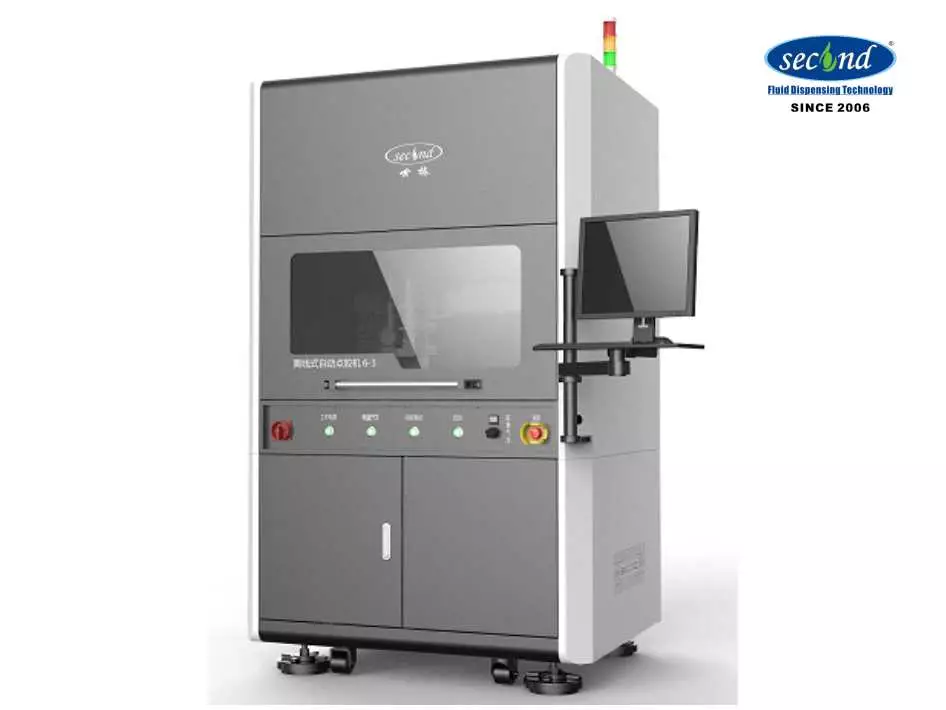

Specification

Model	SEC-H500
Max working range	500(X)╳300(Y)╳100(Z)mm
XY speed	Max：1000mm/sec
XY accelerate speed	Max：1.0g
Repeat accuracy	±0.01mm
CCD positioning camera	130 pix.
Laser height altimeter	±0.005mm
Monitor	17’
Material feeding systems	30CC/50CC/330CC Syringe or cartridge
Material cartridge and valve temperature control precision	±1℃
Operating system	Windows 10
Power supply	AC220V，50-60HZ 1.5Kw
Machine footprint	L1200╳W1100╳H2000mm
Machine weight	About 900kg
Working environments	Humidity：20-90%， Temperature: 0-40℃

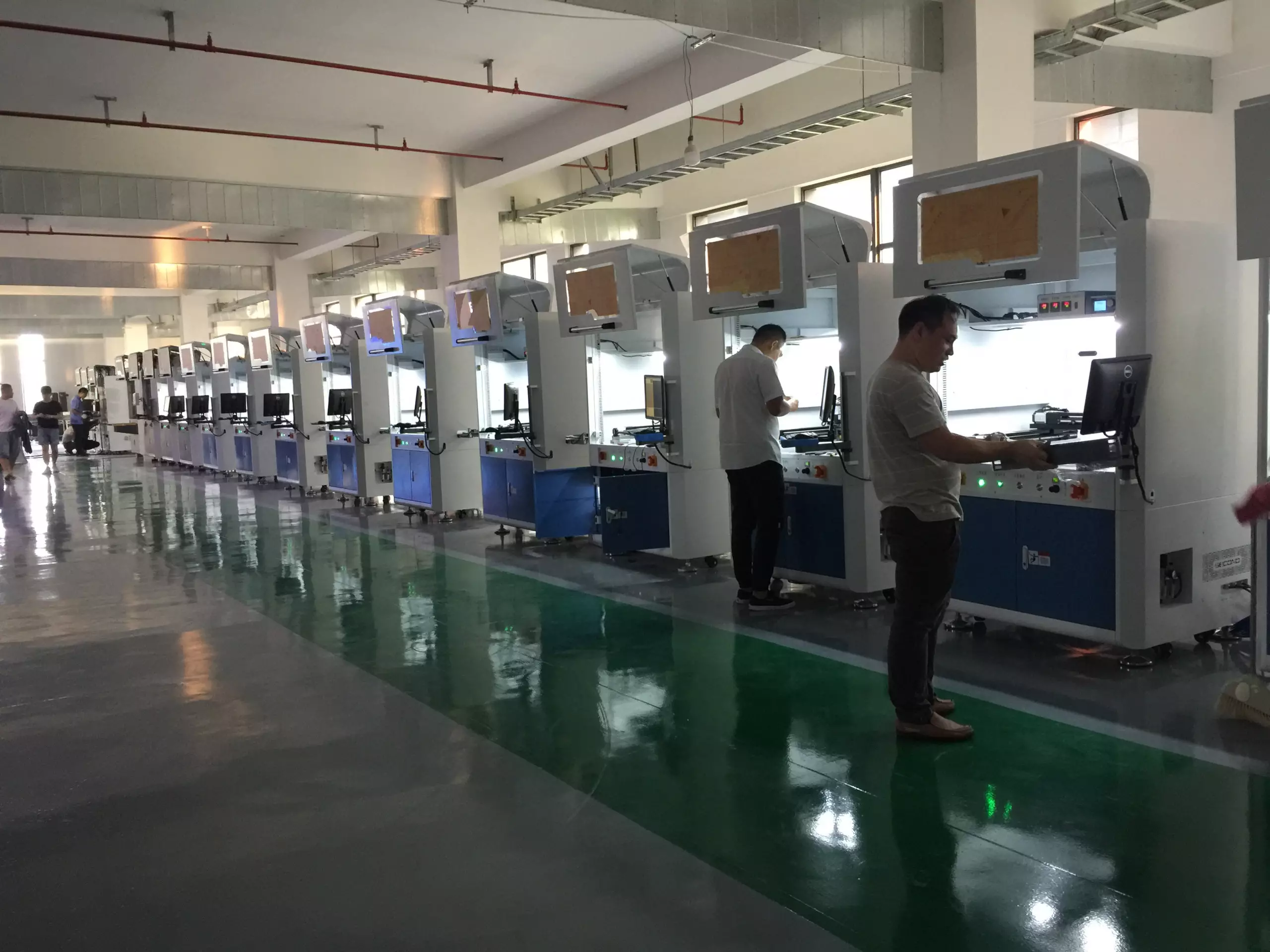

PEM H2 fuel cell battery fabricating machine 1

Supportive dispensing systems

PEM H2 fuel cell battery fabricating machine 2

Hydrogen fuel cells have been developed for many years, and the current technology is very mature, and the scientists have solved many technical problems. Now it is necessary to break through the bottleneck of mass production, so that the cost of each battery stack can be greatly reduced. To achieve this, automatic equipment production must be employed. We have prepared it for you here. Welcome your inquiry, we provide standard equipment and custom equipment. Whether it is for business operation or environmental protection, it is beneficial for us to have more green new energy like H2FC.
