The CIPG/FIPG thermal paste dispenser is an automated device specifically designed for the precise application of thermal interface materials (TIMs), primarily used for heat management in electronic products. The CIPG/FIPG thermal paste dispenser’s application characteristics can be summarized as follows: It uses a highly automated and intelligent method to stably, consistently, and efficiently apply high-viscosity, high-performance thermal paste in a pre-set, precise three-dimensional pattern to the designated locations of complex electronic products. Deeply integrated with automated production lines, it ultimately aims to achieve a reliable, repeatable, and efficient heat dissipation assembly process in large-scale manufacturing. These features make it a critical piece of equipment for ensuring the thermal reliability and production quality of high-end electronic products.
Automatic feeding by platen pump + Glue processing in transit tanks
+ piston pump for metering + Dispensing Valve
The lithium battery cell coating process is a precise and continuous core manufacturing process. Its core lies in coating the positive and negative electrode slurries of the battery onto the metal foil current collector with extremely high consistency and a preset thickness through precise methods such as slit extrusion. The coating is then immediately placed into a segmented temperature-controlled oven for drying to cure the coating and evaporate the solvent. The entire process ensures that the areal density, blank size and surface quality of the electrode sheet are uniform and stable through fully automatic tension control, online real-time thickness measurement and defect detection, thereby preparing a reliable and defect-free electrode substrate for subsequent processes.
RTV effectively suppresses the movement of plug-in components.
●Easy to operate, simple and easy to use
●Glue stirring, prevent precipitation, vacuum degassing, nitrogen protection
●Piston rod glue supply, first-in-first-out, ceramic lever, high wear resistance
●TC distribution valve, few parts, easy to clean

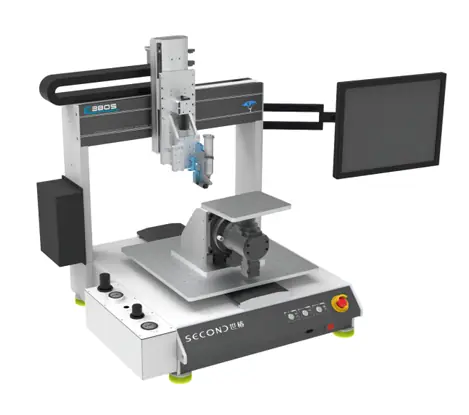

Multi-functional five-axis dispensing platform, with a powerful motion control system, support a variety of standard curves, arbitrary axis straight line, space arc, space helix, space ellipse, space involute, and space spline curve interpolation. Can be applied to circular, shaped products dispensing
The device has the function of Mark point positioning and edge positioning, automatically calculates the central position of the product, corrects and compensates the amount of exercise of each axis, and automatically identifies the phenomenon of product leakage and misplacement
● Powerful spatial dispensing trajectory movement
● Mineral casting platform, with higher precision and greater stability
● Powerful expansion function to further realize multi-directional andmulti-angle dispensing process.
Module features:
● Higher precision and stability: the platform and X/Y module holders are
made of mineral casting; the key parts are processed by grinding;
● The platform in/out structure is more convenient for product pick and
place operation;
● Higher stability: the independent structure of X and Y axes can minimize
the movement inertia of the robotic arm.
● Multi-functional dispensing system with powerful industrial PC platform
compatible with six-axis dispensing + auxiliary detection
Module features :
● Adoption of high-precision servo motor + grinding ball
screws
● E series vision dispensing platform has more advanced and
powerful functions, can be equipped with vision positioning,
● automatic calibration, dispensing detection, laser height
measurement and compensation, product information scanning,
MES system docking and other functions, to meet a variety of
industries and multi-scenario use.
Do not hesitate to contact us for further information, thanks in advance for your support!
