SEC- Semi-automatic stacking machine

SECSemi-automatic stacking machine

Compact space, mature and stable, cost-effective

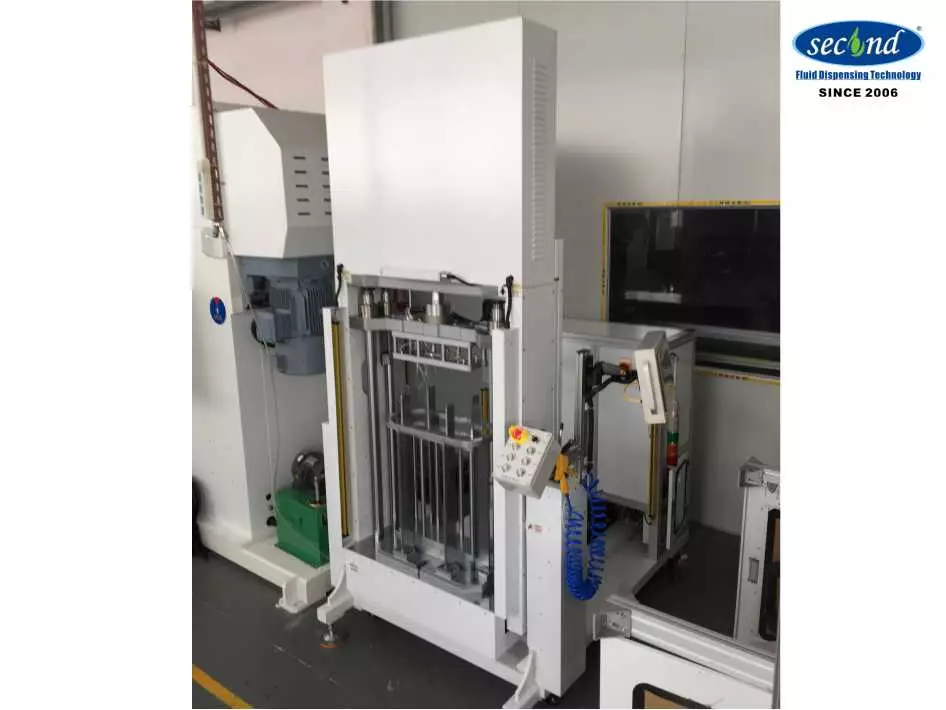

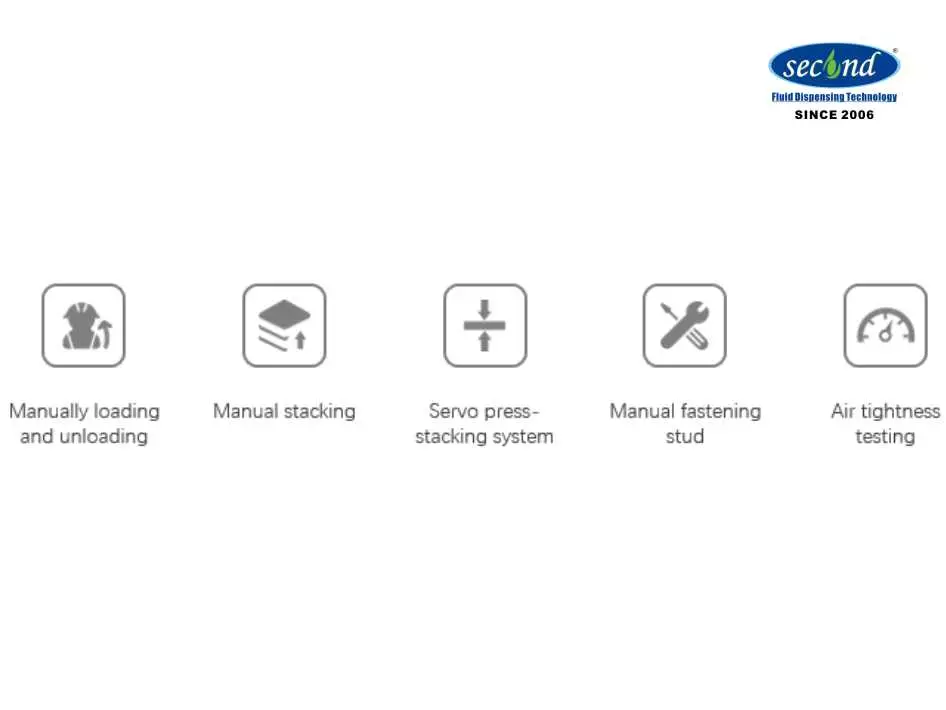

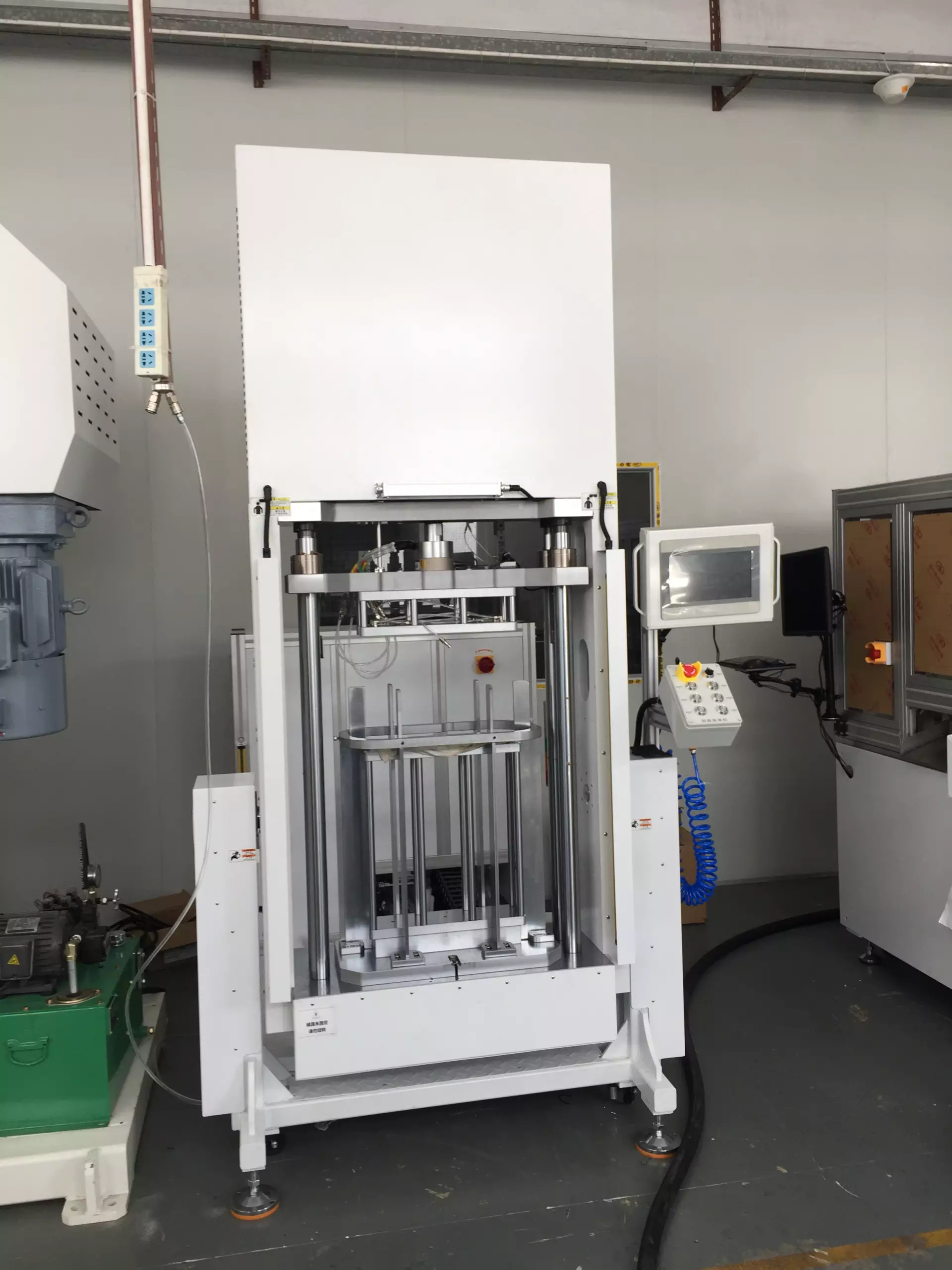

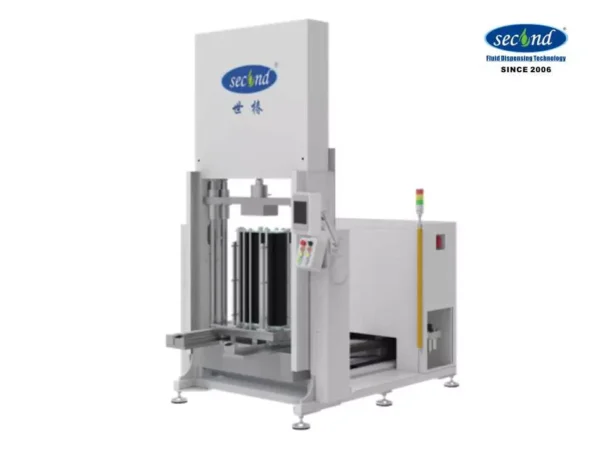

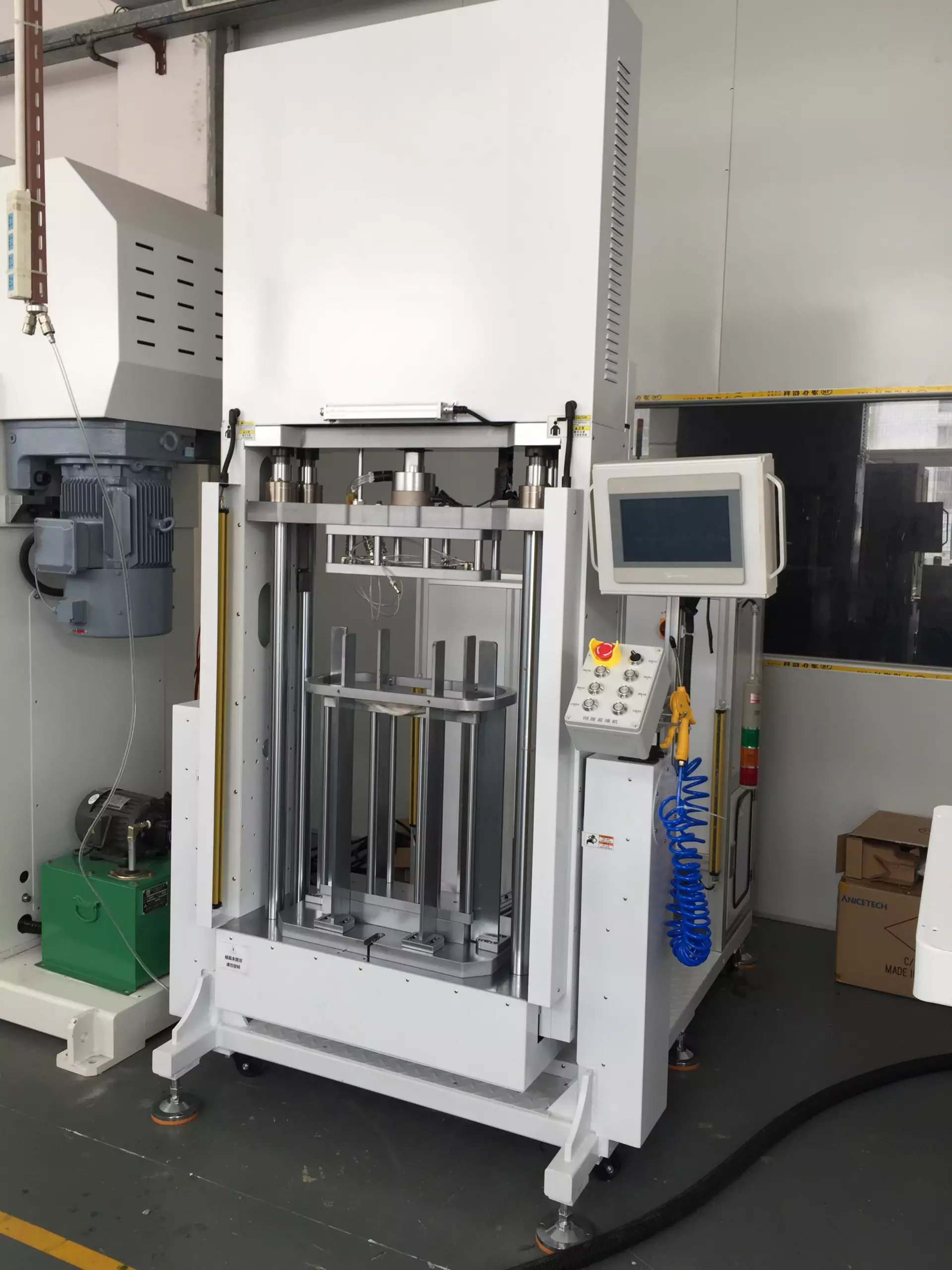

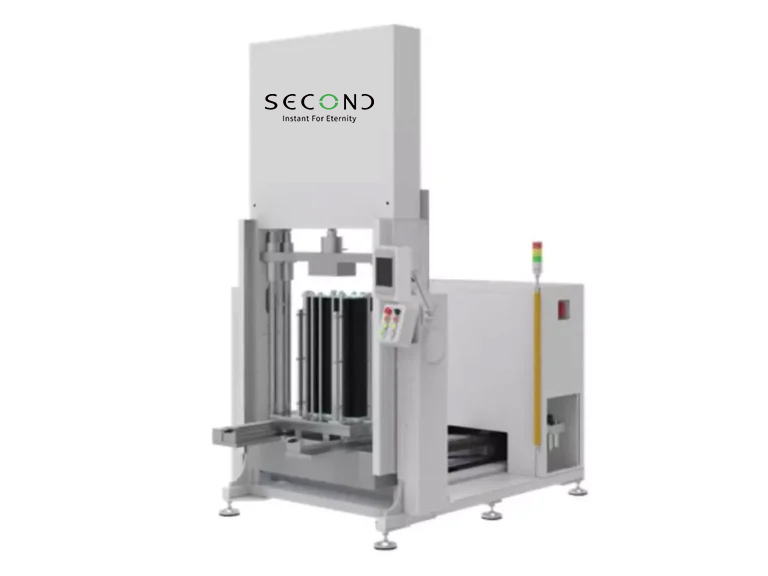

The semi-automatic stacker is designed to develop a convenient and semi-automatic stacking equipment for stacking and assembling hydrogen fuel cell stacks. The stacking is done manually, the gravity-tilt function to ensure the uniformity of the material stacking, the high-precision servo pressing system to ensure the precise pressure of the stack, the studs are manually locked, and the stack is tested for multi-directional air tightness by the flow method.

Description

Introduction

Hydrogen fuel cell battery is getting more important as an alternative power source for automotive vehicles, and also more and more stationary power supply are being developed. It is also a type of green energy, it has zero emission. Most of the machines and production lines we listed on this web-site have been built and sold to many clients already, and they have been proved success and reliable.

The company has begun to enter into the field of hydrogen fuel cell equipment in 2014. After years of researches and developments, combined the good experience in automated adhesives dispensing knowledge and the hydrogen fuel cell battery fabricating know-how, the company has successfully developed and sold various type of PEM FC bipolar plate automatic dispensing, sealing, and packaging machines as well as production lines. We also provide the membrane electrode assembling, packaging, machine, and production lines as well as automatic battery stacking machine, air tightness testing machine, testing and inspecting machines, fully automatic stack system, assembly production lines and other related equipment. We have established a subsidiary company name Suzhou Second Hydrogen Energy Technology Co., Ltd for this section of business, Shenzhen Second Intelligent Equipment Co. Ltd. is the mother-company. Please feel free to contact us, we provide free evaluation, proposal, and looking into long-term cooperation partnership to develop the businesses, and gives the Earth one more green energy option.

Equipment introduction

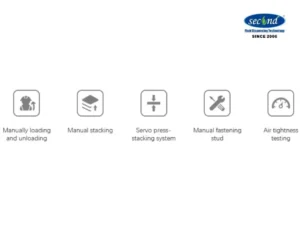

  • It can realize the assembly and inline air tightness detection for hydrogen fuel cell stack
  • Equips with two control modes, position mode and pressure mode
  • Stack system can be rotated 0-45° for easy assembly of bipolar plates and MEA
  • Able to record and load historical data, parameters can be traced back
  • Closed loop control system

Main functions

  • High-precision manipulating system

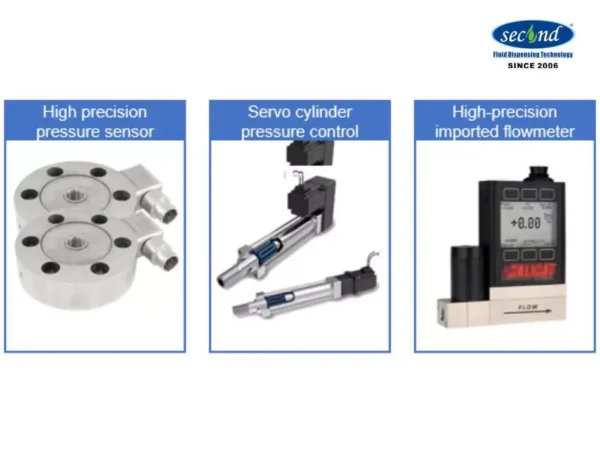

  • Flow method air tightness detection system
  • Integrated system for stack pre-compression, stacking and compression

Optional functions

  • Stacks automatic transfer logistics system
  • Finished product re-inspection system
  • Laser marking system

Specification

Machine footprint

Length*Width*Height:About 2000mm*1500mm*2720mm

Servo angle rotating

0-45°

Stating actuator

Servo electric cylinder

Rotary reducer

Turbo screw reducer

Parallelism of upper and lower table surfaces

Within ±0.05mm

Air tightness test method

Differential pressure method / flow method

Testing medium

Clean air or nitrogen

Air tightness testing time

10~30min (Adjustable)

Test pressure range

0-200kpa

Test function

Total leakage, three channels, serial leakage

Machine weight

2100kg

Power supply, air supply

AC220V   0.5-0.7Mpa

Power

3KW

Working environment

Humidity:40-80%,  Temperature: 22.5±1℃
