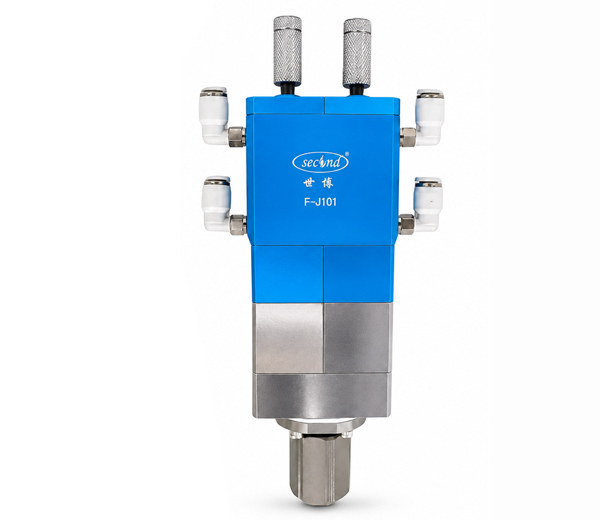

AB Double Liquid Pneumatic Dispensing Valve :
Key Features & Advantages
● High-Precision Mixing & Broad Viscosity Compatibility
● Premium Durability & Superior Sealing
● High Efficiency & Stable Pneumatic Operation
● Compact Design & Space-Saving
Engineered for precision and reliability, the Two Component Double Liquid Static Glue Dispensing Valve is a premium fluid control component designed for high-performance industrial applications. Featuring an advanced static mixing design, premium wear-resistant materials, and a compact pneumatic structure, this valve ensures highly accurate mixing ratios and exceptional sealing performance. Backed by our 20 years of industry expertise, it is the ideal solution for seamless integration into automated dispensing systems.
Backed by 20 years of dedicated experience in the fluid application industry, we are recognized as a National “Little Giant” Enterprise. Our manufacturing and quality management systems are fully certified to international standards, including ISO 9001, ISO 14001, TS 16949, CE, and LVD. This guarantees that every valve we deliver meets the highest global benchmarks for safety, durability, and performance.

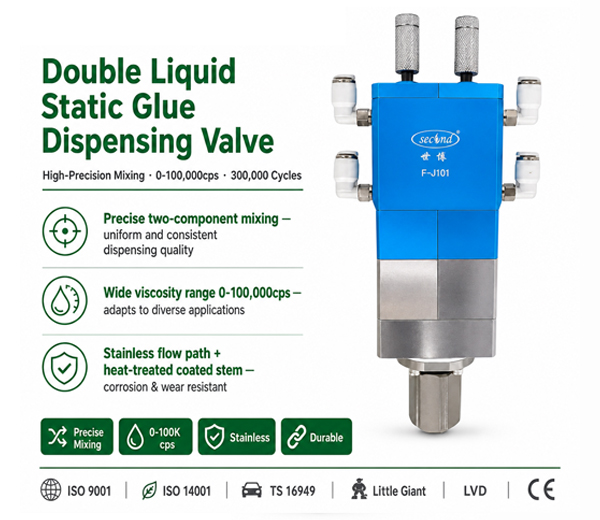

1. High-Precision Mixing & Broad Viscosity Compatibility
* Precision Static Mixing: The exquisitely designed valve body ensures highly accurate mixing of two-component adhesives, guaranteeing uniformity and consistency to elevate final product quality.
* Wide Viscosity Range: Exceptionally versatile, this valve effortlessly handles a broad spectrum of adhesives with viscosities ranging from ultra-low to high (0 – 100,000 cps), accommodating diverse application scenarios.
2. Premium Durability & Superior Sealing
* Wear-Resistant Construction: The fluid channel is crafted from high-grade stainless steel, while the valve stem undergoes specialized heat treatment and ceramic/coating processing, providing outstanding corrosion and abrasion resistance for an extended service life.
* Advanced Sealing Materials: Utilizing a premium composite seal combination of NBR + PTFE + PA, the valve delivers excellent sealing performance and superior anti-aging characteristics.

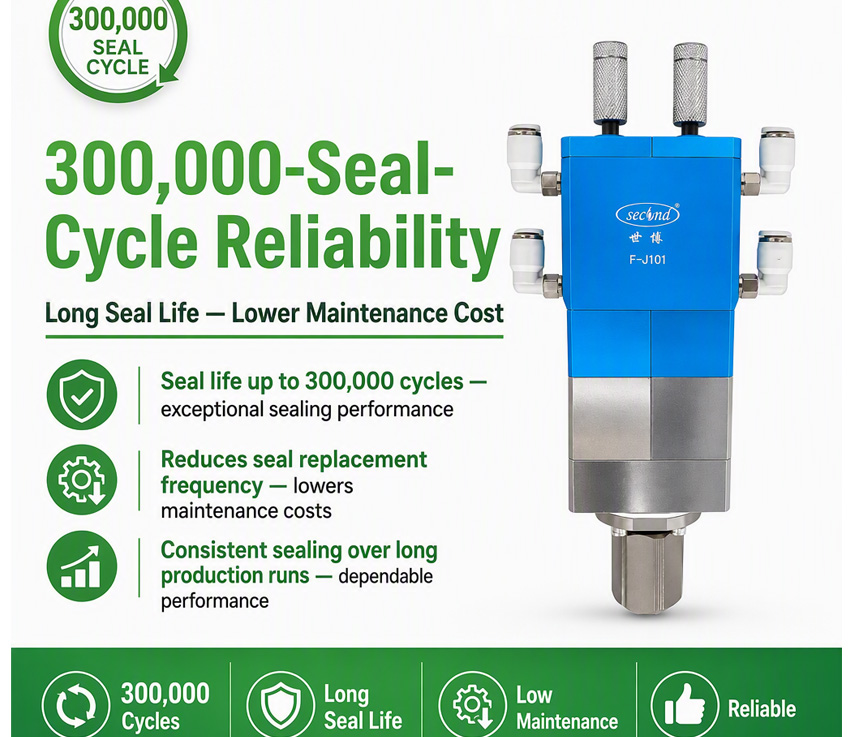

* Long Lifespan: Engineered for endurance, the sealing components can withstand up to 300,000 cycles, significantly reducing the frequency of seal replacements and lowering maintenance costs.

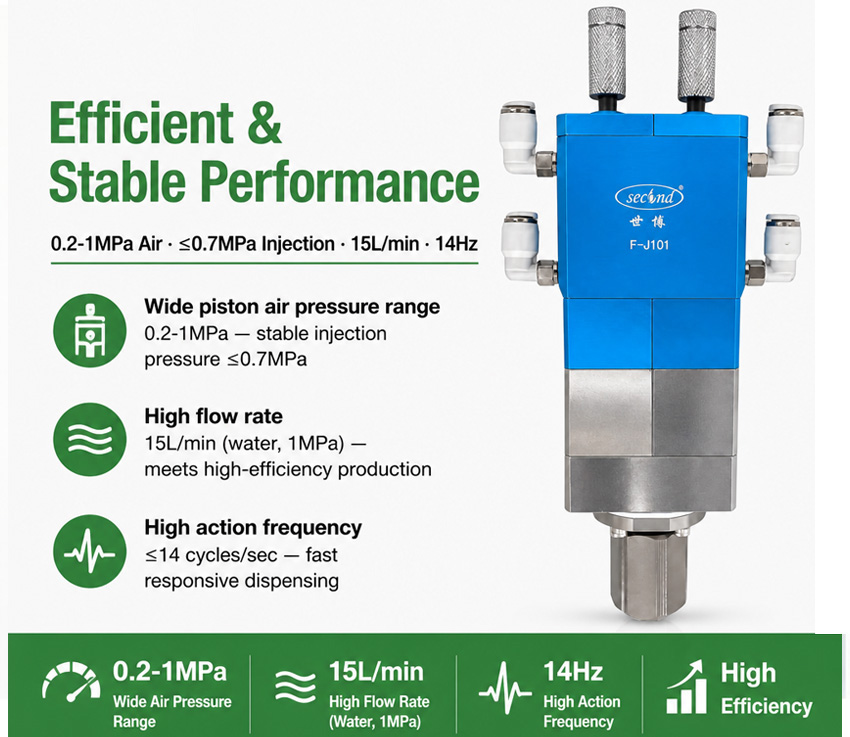

3. High Efficiency & Stable Pneumatic Operation
* High-Speed Performance: Capable of operating at high action frequencies of up to 14 cycles per second, ensuring rapid and efficient production cycles.
* Stable Flow Control: Operates with a wide pneumatic driving pressure range of 0.2 – 1.0 MPa and a stable injection pressure of ≤0.7 MPa. It delivers a high flow rate of 15 L/min (tested with water at 1 MPa), meeting the demands of high-volume manufacturing.

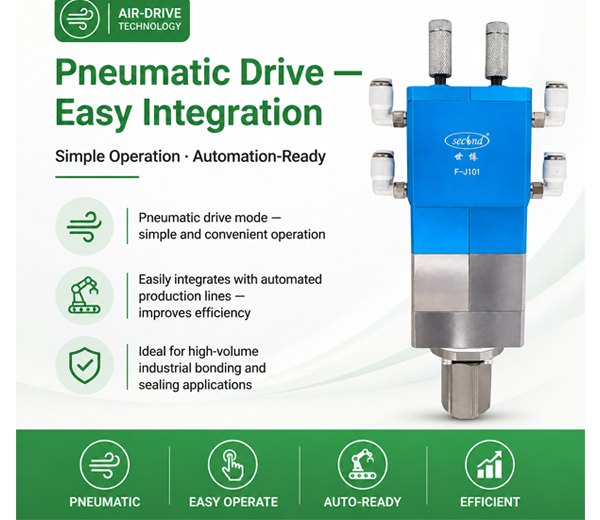

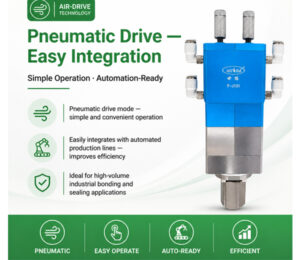

* Easy Automation Integration: The reliable pneumatic drive mechanism ensures simple operation and seamless integration with automated production lines to maximize throughput.
4. Compact Design & Space-Saving
* Lightweight & Portable: Featuring a highly compact footprint of just 230 × 105 × 40 mm and a moderate weight of 1700g, the valve is incredibly easy to install and relocate. It is perfectly suited for space-constrained production environments and complex robotic setups.
* Model: Two Component Double Liquid Static Glue Dispensing Valve
* Applicable Viscosity: 0 – 100,000 cps
* Driving Pressure Range: 0.2 – 1.0 MPa
* Injection Pressure: ≤ 0.7 MPa
* Max Flow Rate: 15 L/min (Water at 1 MPa)
* Max Action Frequency: ≤ 14 cycles/sec
* Seal Lifespan: Up to 300,000 cycles
* Seal Materials: NBR + PTFE + PA
* Valve Stem Material: Heat-Treated with Ceramic/Coating Processing
* Fluid Channel Material: Stainless Steel
* Dimensions: 230 × 105 × 40 mm
* Weight: 1700g
* Drive Mode: Pneumatic
By combining high-precision static mixing, premium wear-resistant materials, and a compact pneumatic design, this two-component valve sets the standard for reliable fluid dispensing. It maximizes production efficiency, ensures flawless mixing quality, and significantly lowers long-term maintenance costs. Upgrade your automated dispensing system with a durable, high-performance valve built for industrial excellence.
Commonly used for encapsulation protection Commonly used for encapsulation protection
in the electronics industry. in the electronics industry.
| Voltage | 220 V,110V | Power (W) | 1kW |
| core components | valve | machinery test report | Provided |
| warranty | 1 Year | video outgoing-inspection | Provided |
| place of origin | Guangdong. China | Weight (kg) | 1.7 |
| brand name | Second | Product name | Double liquid static glue dispensing valve |
| Model | F-J101 | Driving mode | pneumatic |
| Size | 33*33*190mm | Flow channel material | stainless steel |
| Stem material | stainless steel + heat treatment +plating/ceramic | Applicable glue viscosity | 0-100000cps |
| Seal material | NBR+PTFE+PA | Piston drive air pressure | 0.2~1Mpa |
| Injection pressure | ≤0.7Mpa | ||
Electronics manufacturing, Automotive components, Aerospace parts, Medical devices, Precision machinery
Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.
This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which is able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
We are direct manufacturer.
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).
CE, UL, ISO 9001, and RoHS compliance for global markets.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
3C electronics, EV batteries, LED packaging, solar panels, and biomedical devices.
Glue dispensing handle programmer editing teaching pendant :
Applicable Industries:
Manufacturing Plant, glue application industrial, Waterproof, encapsulating, gasket, Power adapter, Toys and gift, PCBA bonding, LCD screen
Close the glue in advance:
Value range: 0~99mm Recommended value:1~20mm
Open glue in advance:
Value range: 0~99mm Recommended value: based on the actual dispensing
Second Needle glue dispensing Valve Stainless steel needle
Module function:
a. The glue outlet aperture is large, suitable for medium and large glue dispensing operations.
b. The striker valve can adapt to a larger glue supply pressure without glue leakage.
c. Applicable glue: epoxy resin, polyurethane, silicone, etc.
Functional features:
Suitable for pumping high-filler and high-viscosity glue
● Provide high output pressure
With pneumatic motor, pressure output ratio is 43:1;
(Example: According to the factory standard air pressure of 0.6Mpa, it can provide 25.8Mpa glue supply pressure)
● Provide large displacement: one circulation pump can deliver 170CC of fluid
● Has excellent wear resistance
a. The plunger rod is made of specially treated carbon steel or ceramic material;
b. The key structure that withstands impact and abrasion is nested with tungsten steel;
● Unique sealing structure design and the use of special sealing materials;
The above characteristics can greatly extend the life of the seal
● Easy installation and maintenance
The plunger rod and seal are easy to replace; Optional maintenance kit;
Dual-Component Static Mixing Valve :
Second Double liquid static glue dispensing valve
FJ series two-liquid static glue dispensing valve is a two-component back-suction static mixing switch valve, which acts on the switch and mixing of two-component glue in the flow channel. It uses a back-suction switch to control the two glues A and B to enter the mixing tube, and then apply them to the product after static mixing! It is suitable for a variety of two-component component mixing and coating processes, 2 adhesive dispenser valve .
Features
● It acts on the switch and mixing of two-component fluids in the flow channel, using pull-back switch and static mixing.
● It controls the A and B liquids to enter the static mixing tube for mixing at the same time.
● It is suitable for medium and low viscosity fluids.
● It can be connected to various types of static or dynamic mixing tubes and is suitable for various forms of dual-liquid dispensing equipment.
