Two part component liquid silicone glue dispensing mixing potting filling machine SEC-8700-E

Home|MACHINES|Two Component Glue Potting Machine Solutions|Two part component liquid silicone glue dispensing mixing potting filling machine SEC-8700-E

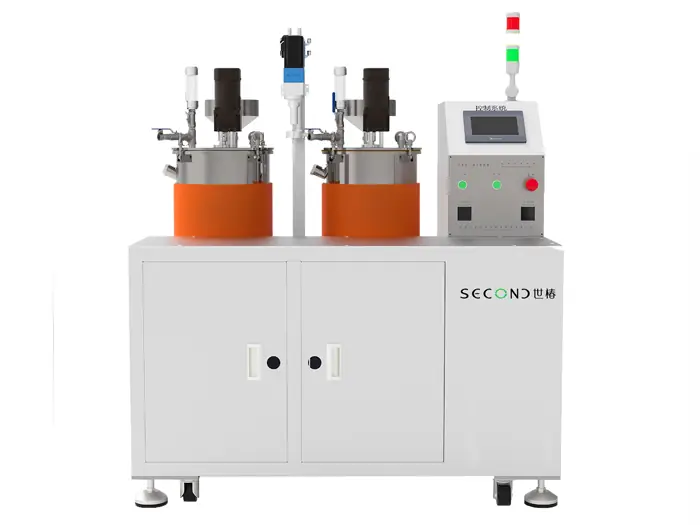

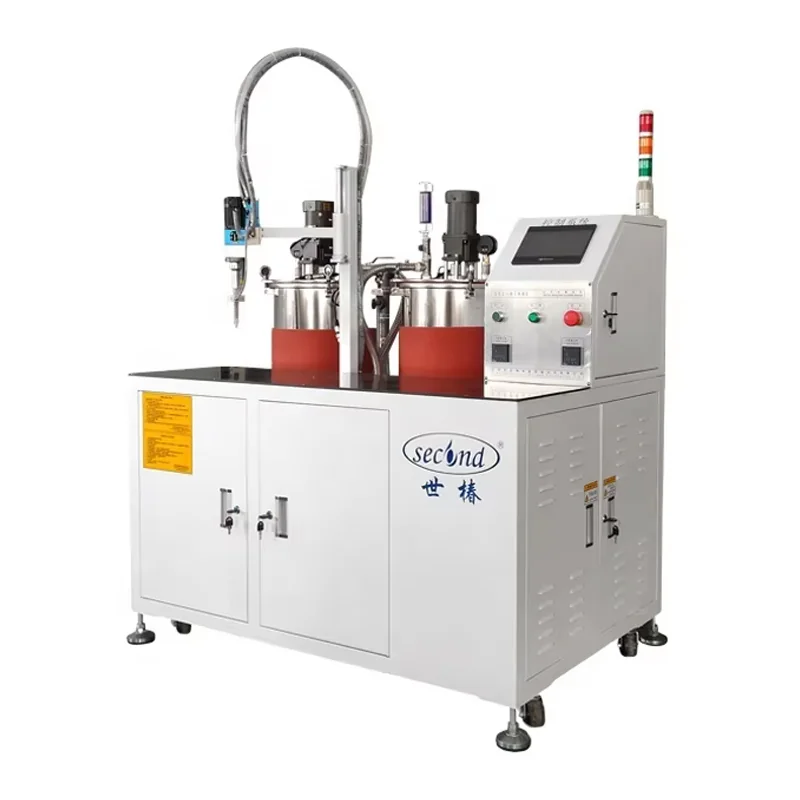

Two part component liquid silicone glue dispensing mixing potting filling machine SEC-8700-E

performance:

■ Through the precise control of the metering motor by PLC, the two-component glue can be accurately proportioned, automatically mixed, and automatically quantitatively discharged;
■ With functions such as vacuum feeding, vacuum degassing, heating, stirring, and automatic cleaning, it can cope with various complex glue environments; ■ Unique industrial design, elegant appearance, compact structure, stable operating system, friendly operating interface, and high cost performance;
■ Simple operation, greatly saving manual proportioning and mixing time, improving efficiency, saving costs, and high cost performance;
■ Optional 1.2-meter double-joint cantilever handheld glue pouring, flexible and easy to operate;

Description

Features:

● Intelligent glue control
Independent research and development of control software, easy to operate, CCD vision-assisted programming, metering control is precisely adjusted from 10:10 to 10:1.

● Core craft
The combination of multiple metering pumps meets the application of different glues; the maintenance-free two-liquid dynamic mixing valve solves the problems of leakage, blockage, sealing and other losses.



● Micro control

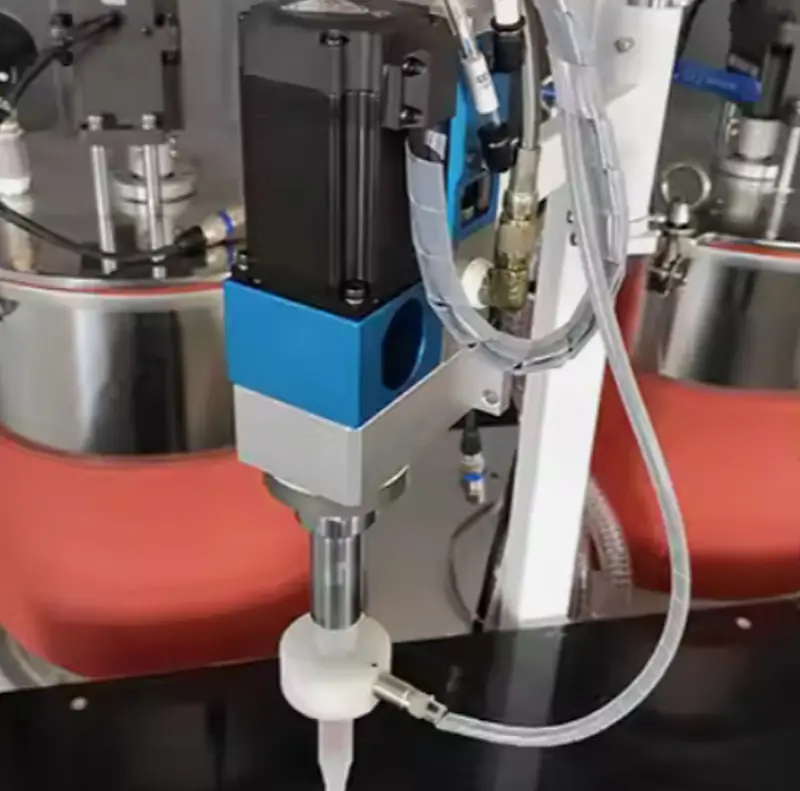

Independent research and development of micro piston pump, high precision, automatic proportioning, automatic mixing.

● Automatic alarm
Real-time monitoring of the mixing status, discover problems in time, and eliminate defective products.

Application:

Inline automatic glue filling, high degree of automation, all kinds of two-component glue, electrical (wire) road board industry, electronic components industry, electric light source industry, small household appliances industry, igniter industry, vehicle supplies industry, vacuum cleaner industry, filter industry and many other fields

Material ref.:
UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, silicone, RTV, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal paste, solder mask paste , clear paint, screw fixer, etc.

Benefits:

This is a compact machine but with flexible design to meet various daily small to medium scale of encapsulating production.
Reduces materials waste or product waste.
Easy for production operating and managing.
User-friendly and low maintenance machine.

Specification

ModelSEC-8700E
Operation patternsingle,automatic,continuous
Operable viscosity100000CPS
Mixing precision±2%
Potting precision±2%
Mixing ratio100:100~100:20 or 100:20~100:10
Potting speed1g/sec~15g/sec 5g/sec~30g/sec
Operation systemPLC+touch screen
Measuring modeStepping Motor/gear pump/rotary-plunger pump servo motor+piston pump
Operation modeFoot switch/auto switch
Feed systemmanual/semi-automatic(vacuum suction)
Time of preventing curing0-100sec
Power supplyAC220V 50HZ 2KW
Size1300(L) *900(W)*1650(H)mm
WeightAbout 200kg
Work conditionHumidity:20-90%, Temperature :0-40°C





PRODUCT DETAILS

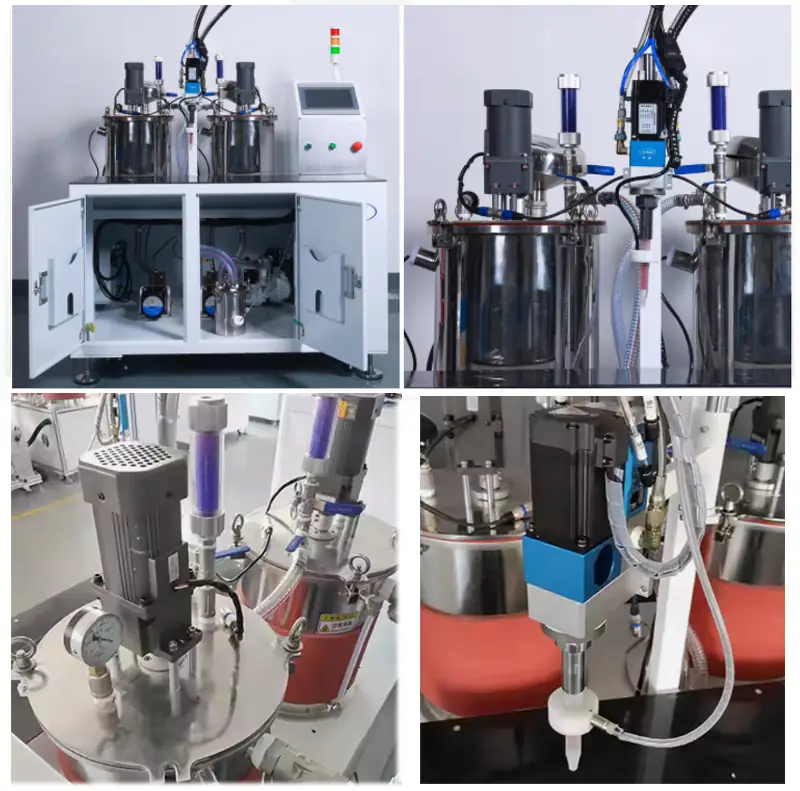

Detailed display

automatic glueing machine.jpg

Structure diagram





automatic-glue-coating-machine

Product description

1. Mixing ratio 100:100~100:20,or 100:20~100:100 adjustable:dynamic or static mixing mode,uniformly and thoroughly mixed.;
2. Exclusive control systemhelps avoid nonuniform gluepotting, glue drawing, and airbubble.;
3. Glue level alarm makessure glue short alarm.;
4,Vacuuming or heating systemoptional, applicable to differentliquid mixing and potting craft.;
5, Touch screen with Chinese andEnglish operation interface, easyfor learn and operation; capableof saving 30 groups of pottingparameters no need to set theparameter for the same product.;
6, Save labor. Productivity of onemachine equals to 5-6 labor intraditional way;
7, Save glue. A/B glue is pottedafter being mixed according torequirements to save glue asmuch as possible.;
8. A/B alue is stored separately intwo different glue tanks to makesure glue is stored for quite longtime without curing

Dispensing process

glue-dispenser-automatic

Commonly used glue

hot-melt-glue-applicator

Multi-valve picture display

Applicationis

desktop-automatic-glue-dispenser

OUR FACTORY (A3)

cnc-glue-dispenser-machines

Logistics packaging collection

adhesive dispensing robot.jpg

SOLUTION

2-parts AB adhesive materials 1

Material

Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.

This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).

Control

1. The machine is user friendly, and operating by Window base software.

2.The software is design and developed by Second Intelligent.

3.With over 15 years in dispensing and potting, the software has included all of the functions that meets dispensing and potting needs. And it has been fine tuned and debugged well to provide good quality output.

4.The software has English instruction, and we welcome your language as well.

5.It is absolutely user friendly. With this computer system, it comes with an internet remote control access function, this allow us to help operator to conduct troubleshooting of the software, and can be used as an online instruction as well. It is welcomed, easy and helpful for international service and support.

silicone glue dispensing machineliquid glue dispensing machine
liquid glue dispensing machine

LED Driver, Power-supply

Our two-component vacuum chamber potting machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

liquid glue gun dispenser

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

robot glue dispensing machine

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

glue applicator machine manufacturers

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).

FAQ

1.Are you trading company or manufacturer?2021-08-26T11:19:43+08:00

We are direct manufacturer.

2.What is your terms of packing?2021-08-26T11:20:44+08:00

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?2021-08-26T11:21:07+08:00

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?2021-08-26T11:24:19+08:00

EXW, FOB,CIF…

5.Can you produce according to the sample testing?2021-08-26T11:22:35+08:00

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?2021-08-26T11:22:44+08:00

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?2021-08-26T11:22:53+08:00

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?2021-08-26T11:24:59+08:00

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?2021-08-26T11:25:18+08:00

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?2021-08-26T11:26:02+08:00

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.

Technical Parameter

ModelSEC-400Z/ZH
Working ranges400(X)╳300(Y)╳100(Z)mm
Travel speed0-500mm/sec
Mixing accuracy±2%/
Dispensing accuracy±2%
Mixing ratio100:100~100:20 or 100:20~100:10 Adjustable ratio
 Dispensing speed1g/sec~15g/sec or 5g/sec~30g/sec
Operating methodMovement control system
Working viscosity<100000CPS
Metering methodStepper motor/Rotate plunger pump/Servo motor, piston pump
Transfer methodServo motor/ball-screw
Power supplyAC380V 50HZ 3.0KW
Machine dimension2350(L) ╳1600(W)╳2100(H)mm
Machine weightAbout 600KGn
Working environmentHumidity:20-90%, Temperature: 0-40℃
CCD visual cameraHigh definition fiducial CCD camera
ComputerComputer, monitor, mouse and keyboard
Operating systemWindows7
Control softwareSecond Fluent
Communication protocol of the front and rear machinesSMEMA
Machine dimensionL779*W1255*H1500mm
Machine weight800Kg
Power supplyAC220V,50/60Hz,2Kw
Air pressure0.65MPa±0.02MPa,0.2m³/h

Main configuration

Part

Unit

QTY

Note

PC computerSet1

Second Original

MonitorSet1

DELL

XYZ robotic systemSet1

Servo motor, ball-screw

Movement controlSet1

Second Original

Material tankPiece2

Tank size (option)

Metering pumpunit2

Screw pump/Gear pump/Piston pump (according to the materials)

Mixing valvePiece1

Static or Dynamic valve

Automated valve clean tankPiece1

Automatic clean

Vacuum pumpPiece1

Imported
