Dispensing technology is widely used in the consumer electronics industry, primarily for key processes such as bonding, sealing, thermal conductivity, electrical conductivity, protection, and encapsulation. Here are some typical application scenarios:
1. Structural Bonding and Fixing: Bonding of mid-frames in mobile phone/tablet assembly, fixing of camera modules, fingerprint recognition modules, side buttons, battery bonding, speakers/earpieces, laptops/smartwatches, etc.
2. Sealing and Waterproofing: Waterproofing of electronic devices, sealing and moisture protection for outdoor electronic products such as action cameras and smart speakers.
3. Thermal Conductivity and Dissipation: Chip heat dissipation. Applying thermal grease or thermal gel between heat-generating chips such as CPUs and GPUs and heat sinks to improve heat dissipation efficiency; 5G devices/routers.
4. Conductive Connection: Electromagnetic shielding (EMI shielding), antenna/sensor connections.
5. Component Protection: Chip Packaging (Underfill)、Circuit Board Conformal Coating、Coil Fixing
Automatic feeding by platen pump + Glue processing in transit tanks
+ piston pump for metering + Dispensing Valve
The lithium battery cell coating process is a precise and continuous core manufacturing process. Its core lies in coating the positive and negative electrode slurries of the battery onto the metal foil current collector with extremely high consistency and a preset thickness through precise methods such as slit extrusion. The coating is then immediately placed into a segmented temperature-controlled oven for drying to cure the coating and evaporate the solvent. The entire process ensures that the areal density, blank size and surface quality of the electrode sheet are uniform and stable through fully automatic tension control, online real-time thickness measurement and defect detection, thereby preparing a reliable and defect-free electrode substrate for subsequent processes.
RTV effectively suppresses the movement of plug-in components.

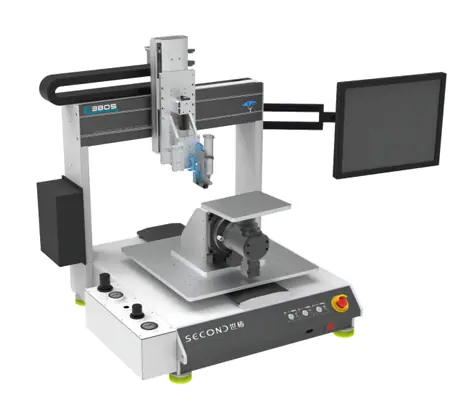

●Adopting high-precision stepper motor + precision imported synchronous belt drive, it can ensure the accuracy and have higher cost performance;
●The size remains unchanged, and the stroke is increased by 20-25%6, making it more compatible;
●Rich product variety, single platform and dual platform optional, to meet the application of different scenes;
●Rich expansion modules to meet the application needs of multiple industries and processes;
●The platfomm and X/Y module base are made of mineral casting, and the
key surfaces are processed by grinding to ensure higher precision and
sta bi lity.
●Gantry type structure, withstand large loads, stable structure, and
●Powerful vision positioning system, can meet the Mark point positioning.
grasping edge positioning, 3D scanning positioning.
●Strong expandability, can extend the AOl inspection 3D inspection, UV
exposure curing and other functions.
●Powerful platfomm compatibility, contact and non-contactdispensing.
single-head and multihead synchronized dispensing, automatic compensation and adjustment of the distance between the two heads,five-axis dispensing function basedon the needle Ay’R displace ment, etc.
Performance:
Simple and practical, easy to program, realize automatic dispensing operation at the most economical price
Economical double Y platform:
■ With higher flexibility
■ Alternate operation to improve production efficiency
■ Powerful application expansion module, more extensive application
■ Expandable double Y double rotation to achieve six-axis alternate dispensing function
● Adopting stepper motor + precision imported synchronous belt drive, it can ensure high accuracy and have higher cost performance.
● The size remains the same, but the travel is increased by 20-25%, making it more compatible
● A wide variety of products, single platform and dual platform options to meet the needs of different scenarios
● A variety of expansion modules to meet the needs of multiple industries and multiple process applications
Do not hesitate to contact us for further information, thanks in advance for your support!
