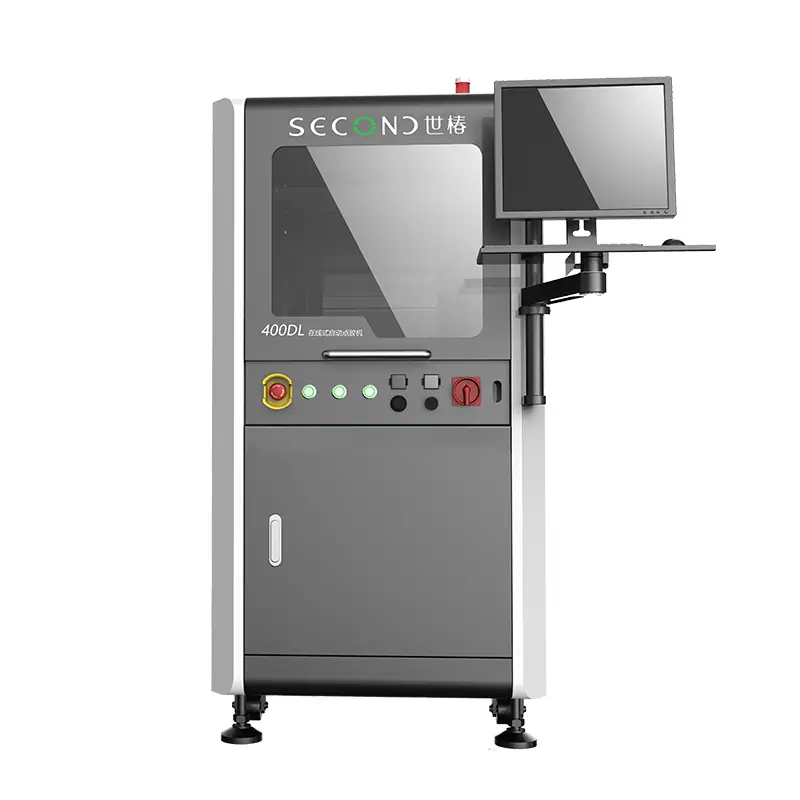

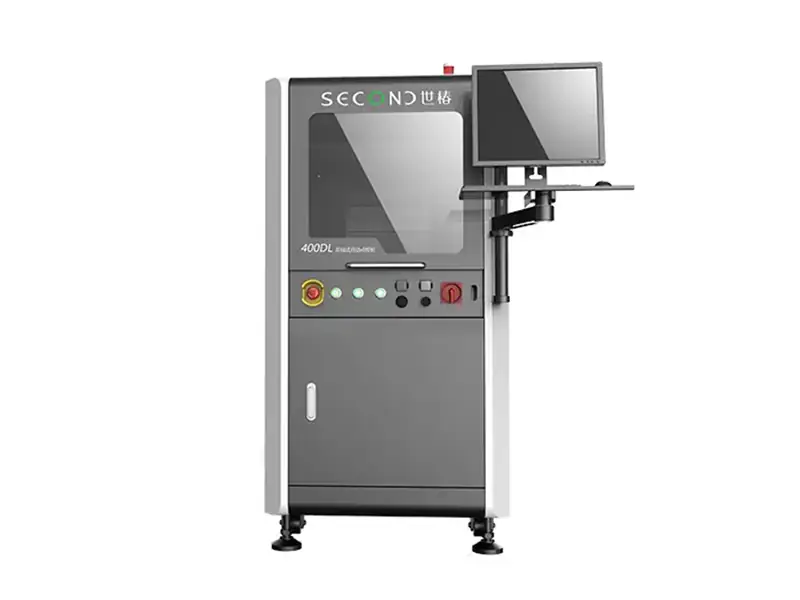

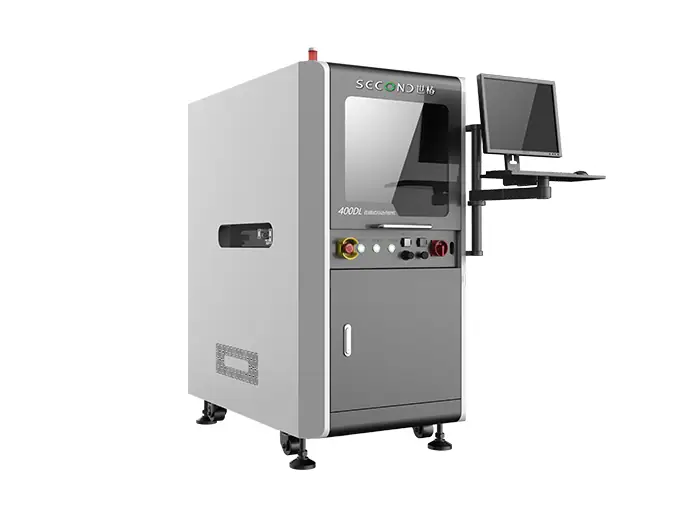

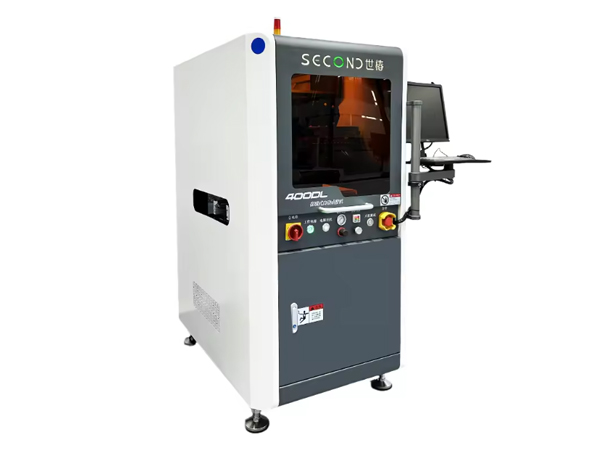

Epoxy dispenser machine performance:
CCD video-assisted programming, large field of view to take pictures as a whole, automatic identification of product location.
Independently researched and developed R-axis needle head linkage rotation function, equipped with ceramic rotary valve, which is absolutely leading in the application field of conductive adhesive.
Gantry dispensing platform can be equipped with a variety of glue supply systems to meet multi-process and realize one machine with multiple uses.
The online dispenser can be flexibly equipped with automatic width adjustment, memory, weighing, code scanning, improve the information management level of the entire line of equipment.
●High stability:
Marble integrated platform, stable equipment structure. First-line brand components are selected, with fewer vulnerable parts and fewer faults.
●Flexibility:
The automatic width adjustment of the track can adapt to dispensing products of different sizes.

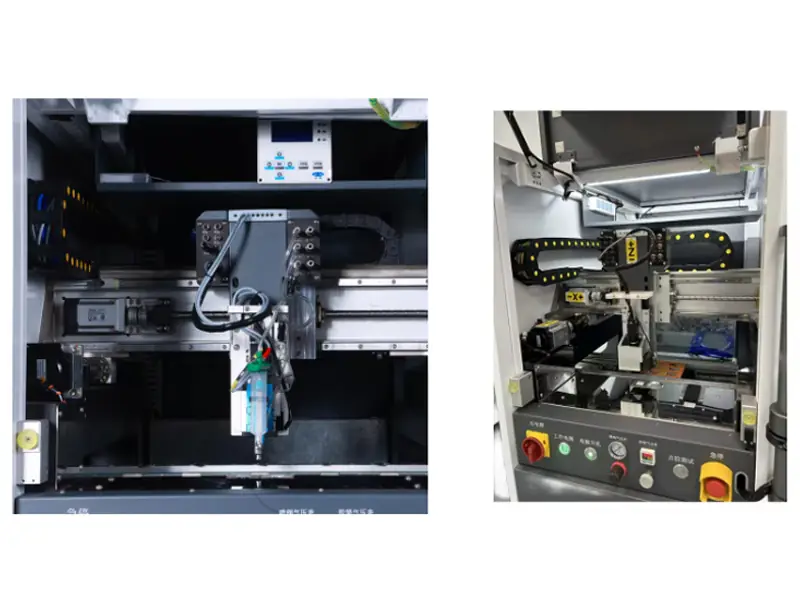

The needle head can be tilted and rotated, automatically aligned, automatically measured in height, automatically weighed, automatically wiped, and dual valve synchronous/asynchronous, etc., which can be flexibly equipped with various functional modules to meet various dispensing processes and achieve high-precision dispensing.
| Specification | ||||
| Model | SEC-400DL | SEC-600DL | SEC-1240DL | |
| Dispensing range | X400*Y400*Z60mm | X600*Y600*Z60mm | X1200*Y400*Z100mm | |
| Travel system | Servo-motor, lead-screw | Linear-motor | ||
| XY speed | Max: 1000mm/s | Max: 1500mm/s | ||
| Z speed | Max: 200mm/s | |||
| XYZ repeating accuracy | ±0.015mm | ±0.025mm | ±0.01mm | |
| Z-axis payload | 5Kg | 20kg | 5Kg | |
| Number of tracks | Single-track (Optional dual-track) | Single-track | ||
| Number of track sections | 1 section (standard) | |||
| Type of conveyor track | ESD, 5mm flat-belt (Optional for double-chain) | |||
| Conveying speed | Max: 300mm/s | |||
| Conveyor adjust method | Program adjustable (Optional for automatic) | |||
| Conveyor payload | Max: 1.7Kg | |||
| Ground height to the track | 900±20mm | |||
| CCD visual camera | High-definition (CCD) | |||
| Visual lighting | LED Red/Blue/White | |||
| Industrial PC | Industrial computer, LCD monitor, mouse and keyboard | |||
| Operating system | Windows 10 | |||
| Dispensing software | Second Fluent | |||
| Front-to-back machine communication protocol | SMEMA | |||
| Machine dimensions | L779*W1255*H1680mm | L1060*W1450*H1680mm | L1860*W1150*H1680mm | |
| Machine weight | 800 kg (Est.) | 650 kg (Est.) | 720 kg (Est.) | |
| Power supply | AC220V, 50/60Hz, 2kW | |||
| Air pressure | 0.65MPa±0.02MPa, 0.2m³/h | |||
Improve productivity:
Automatic assembly line operation, reduce manual intervention, and improve utilization rate.
It can operate on two tracks, reduce waiting time and improve production efficiency. Dual-track operation can also meet the dispensing of two products at the same time.
Expandability:
It can be configured with a scanning system, connected to the MES system, realize big data interaction, and improve the level of workshop information management.
Application range:
It is widely used in SMT industry, 3C electronics industry, LED lighting industry, and is suitable for automated assembly line operation.
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
