Single liquid screw glue dispensing valve :
●Screw potting valve is a way of engaging the outer screw with the inner screw, each pitch
has a displacement size as a measure.
●Accurate dosage and stable dispensing
●Suitable for micro-dosing
●The valve is self-sealing and suitable for a wide
range of medium and high viscosity fluids
High Viscosity Adhesive Pressure Plate Pump :
Performance:
Suitable for pumping high-filler and high-viscosity glue
● Provide high output pressure
With pneumatic motor, pressure output ratio is 43:1;
(Example: According to the factory standard air pressure of 0.6Mpa, it can provide 25.8Mpa glue supply pressure)
● Provide large displacement: one circulation pump can deliver 170CC of fluid
● Has excellent wear resistance
a. The plunger rod is made of specially treated carbon steel or ceramic material;
b. The key structure that withstands impact and abrasion is nested with tungsten steel;
● Unique sealing structure design and the use of special sealing materials;
The above characteristics can greatly extend the life of the seal
● Easy installation and maintenance
The plunger rod and seal are easy to replace; Optional maintenance kit;
2 component adhesive dispenser valve :
Features:
1. Acting on the switching and mixing of two-component fluids in the flow channel, adopting pull-back type glue shut-off and dynamic mixing.
2. Simultaneously control A, B liquid into the dynamic mixing tube mixing.
3. Suitable for low, medium and high viscosity fluids, can withstand low and medium pressure glue supply.
4. It can be connected with various types of dynamic mixing tubes and is suitable for various forms of double liquid dispensing equipment.
5. Make the mixing more uniform by electric stirring.
Two-component Screw valve assembly dispensing Valve:
●Screw potting valve is a way of engaging the outer screw with the inner screw, each pitch
has a displacement size as a measure.
●Accurate dosage and stable dispensing
●Suitable for micro-dosing
●The valve is self-sealing and suitable for a wide
range of medium and high viscosity fluids

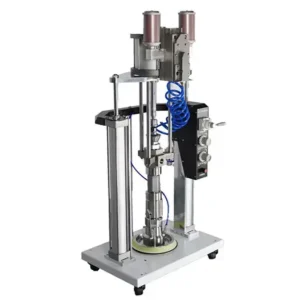

Platen Plunger Pump :
Functional features:
● Higher pressure ratios, 36:1 available
● Conveys a wide range of fluids from low to high viscosity, suitable for 5 gallon packages of all types of glue.
● Higher outlet pressure, the maximum pressure can reach 400Bar, more suitable for the application of ultra-high viscosity glue.
● Equipped with a special regulator to reduce reversing pressure pulsation, better dispensing effect.
● Suitable for all kinds of medium and high viscosity liquid
transportation, such as glass glue, silicone glue, RTV glue, thermally
conductive gel, thermally conductive silicone grease and so on.
1.When loading glue for the first time, click the A/B cylinder to press the glue up, load glue barrel A and glue barrel B,
exhaust the air in the pipeline, and start one of the cylinders.
After that, you only need to replace the glue barrel that has run out of glue.
2.For example, when glue barrel A is used up, click cylinder A to press the glue up, and then click cylinder B to press the glue down,
so that glue can be supplied without stopping the machine. After opening buckle A, rotate glue barrel A counterclockwise
to take out glue barrel A.
3.Put the new plastic barrel A into the plastic barrel seat A and tighten it, then fasten the buckle A.
