Product Description:

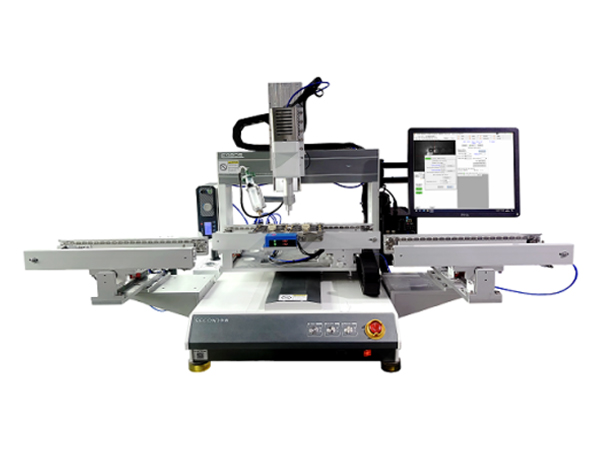

SEC-E480SV-L Desktop Precision Dispensing Platform – A Flexible and Efficient Tool for Precision Dispensing. Addressing the stringent requirements of high-precision, high-efficiency dispensing processes in consumer electronics, automotive electronics, and other fields, Second Intelligent simultaneously showcased the SEC-E480SV-L desktop precision dispensing robot platform. This equipment features a unibody die-cast body made of aerospace-grade aluminum, boasting high structural strength and stable operation, while combining the advantages of compact size and high rigidity.
Details:
Function specification:
1. High-Precision Motion Control Ensures Micron-Level Dispensing Quality
Equipped with a servo motor, ball screw, and self-developed motion control system, the machine achieves a repeatability accuracy of ±0.015mm at high speeds, providing a solid guarantee for precision dispensing. The machine’s working range is flexible, with an X-axis travel of 380-480-580mm selectable and infinitely expandable to adapt to dispensing needs of workpieces of different sizes. Optional custom modules such as aluminum profile conveyor lines, dual-station systems, and R-axis rotation are available to meet diverse production line layouts.
2. Intelligent Vision System for a One-Stop Dispensing Solution
The machine can be equipped with a vision positioning system to achieve intelligent functions such as automatic calibration, dispensing detection, laser height measurement and compensation, and product information scanning. It also supports MES system integration, facilitating factory digital upgrades. The multi-functional dispensing control system based on an industrial PC, paired with a high-definition digital camera, supports various motion modes including point-to-point, continuous linear interpolation, circular arc, 3D curves, and selective coating, flexibly handling various complex dispensing trajectories.
3. Over 3000 mature process cases, rapid response to customized needs.
Leveraging over 3000 modular and mature process options, as well as self-developed core components such as valve bodies and nozzles, Shichun Intelligent can complete professional verification and meet customers’ customized delivery requirements within one week. The equipment is compact and lightweight, allowing for flexible deployment on various production lines, making it an ideal choice for precision dispensing in industries such as consumer electronics, automotive electronics, and hydrogen energy.

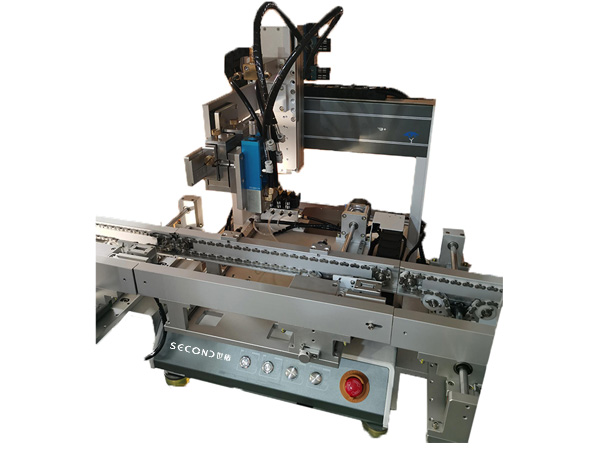

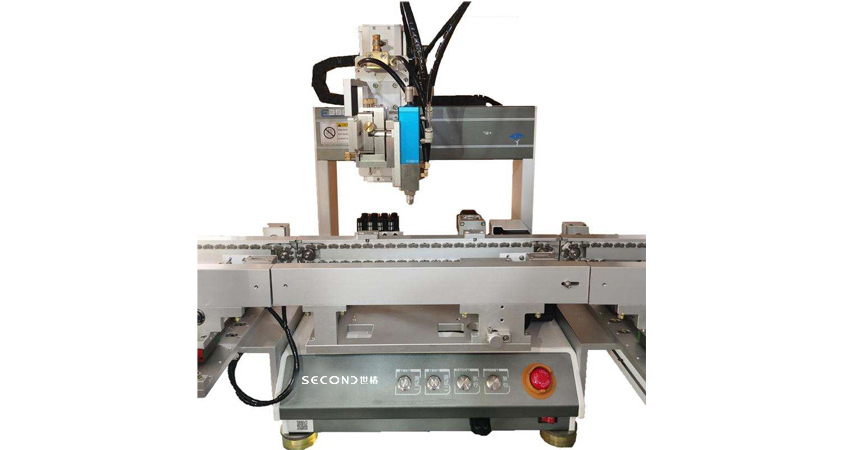

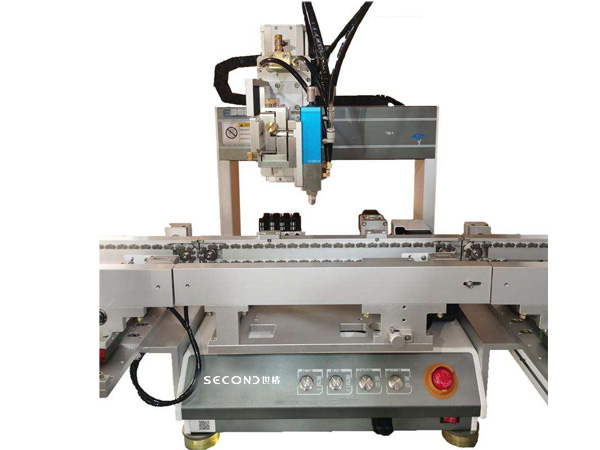

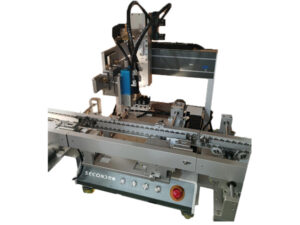

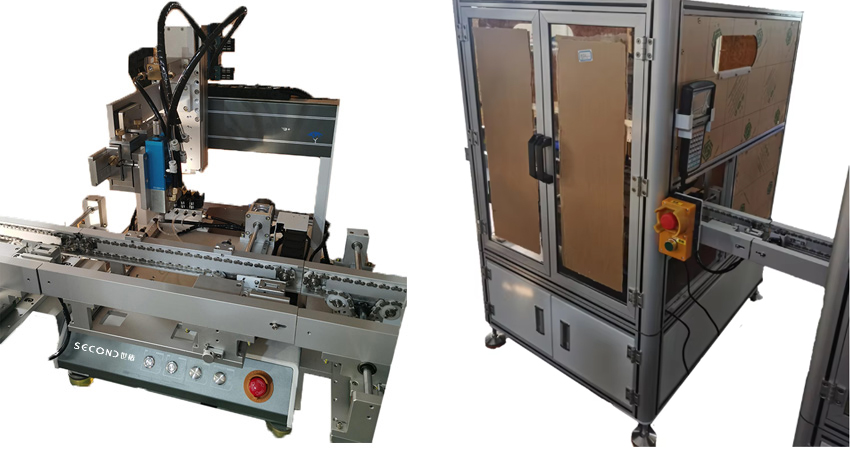

Detailed display diagram
Structure diagram
Product Description

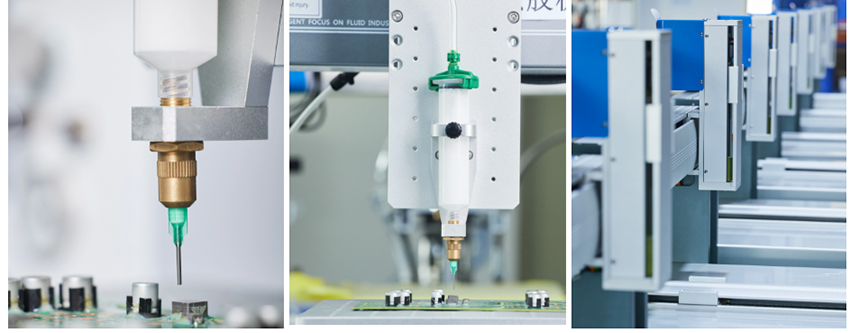

Dispensing process:

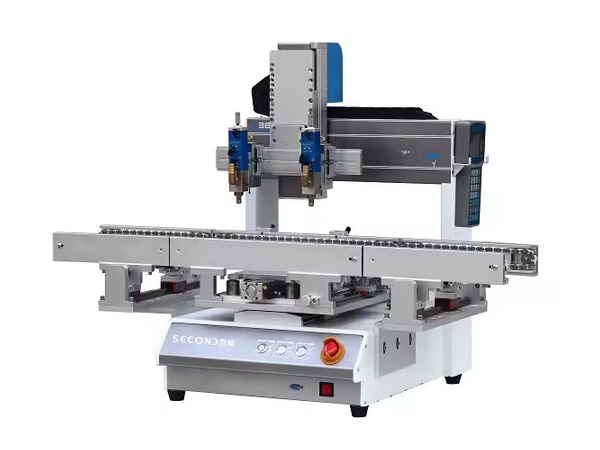

Multi-valve picture display
Applications:
Applicable Industries and Typical Processes:
Consumer Electronics: Applying structural adhesive and hot melt adhesive around the casing of electronic watches; applying sealant around the casing of routers; applying conductive adhesive, thermally conductive adhesive, and epoxy resin bonding to the surface of ICs on circuit boards, etc.
Automotive Electronics: Applying sealant, thermally conductive adhesive dispensing , and conductive adhesive to the control boxes and internal circuit boards of automotive electric drive systems, etc.
PCB Circuit Boards: Filling the bottom of ICs with epoxy resin, applying conductive adhesive, coating with conformal coating, and applying silicone protective coating.
Camera Assembly: Applying epoxy resin and hot melt adhesive bonding, etc.
