E-380R with 30cc dispensing syringe

Home|MACHINES|Desktop, Benchtop Dispensers|E-380R with 30cc dispensing syringe

E-380R with 30cc dispensing syringe

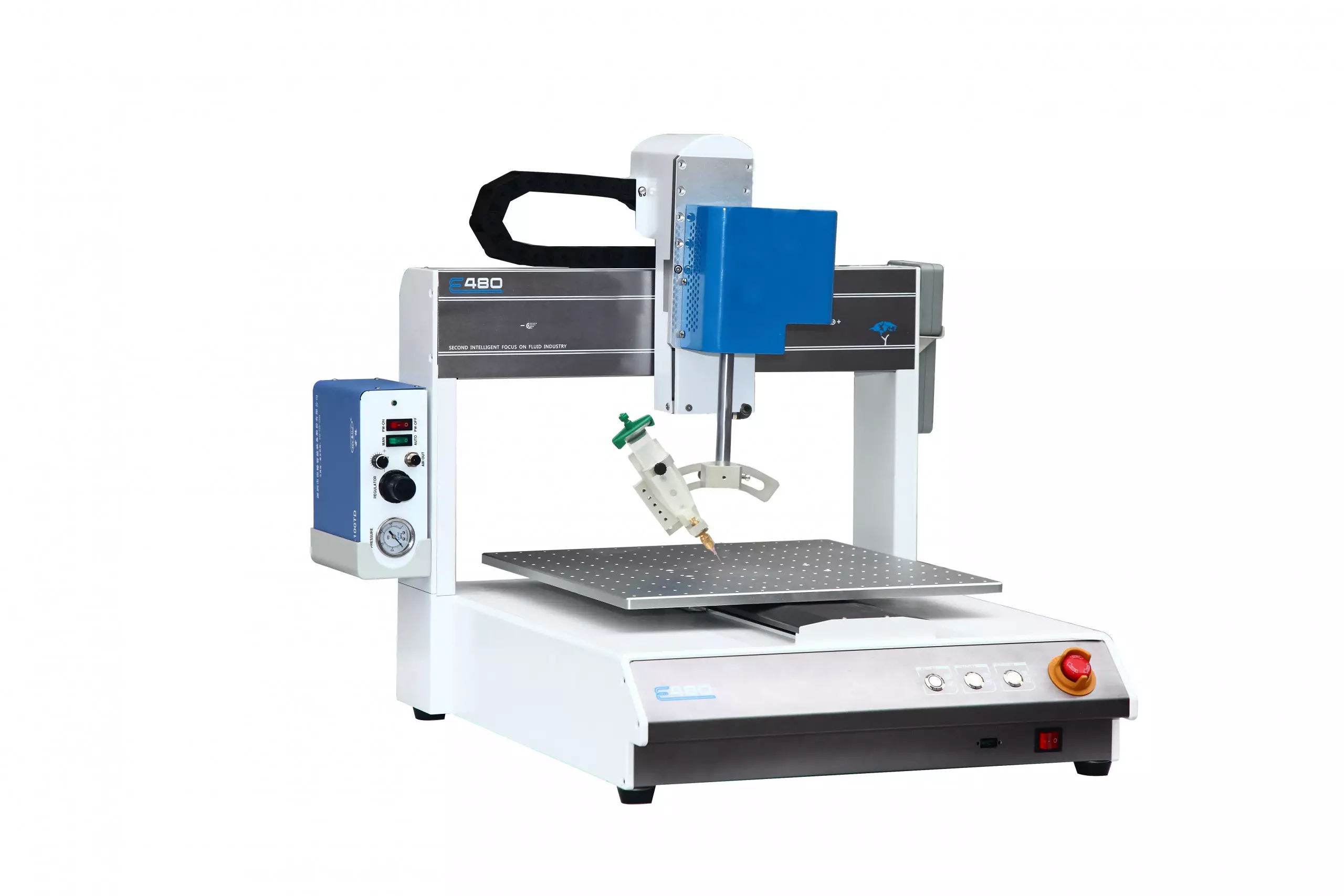

This is professional, heavy-duty industrial adhesive fluid, glue automated desktop dispensing machine.

This machine equips with 4-axis, besides XYZ axis, another additional axis is R-axis, it is able to rate back and forth to cover 360 degree of dispensing, especially suitable to dispense the product with odd edge or in circular shape. It can pair and work with different dispensing valves and material filling systems, such as 5cc – 50cc and so on syringe.

Description

Features:

  1. One-piece aluminum die-casting body, gantry, strong structure, and stable operation.
  2. The machine has compact size, but larger working strokes.
  3. It adopts quality transmission mode of stepper motor and synchronous belt, which has the advantages of low cost and low noise.
  4. 360-degree rotating dispensing head, which can realize multi-angle, multi-directional, side, and corner dispensing applications of special products.
  5. Can be equipped with 5-55cc syringes, various valves and other different dispensing methods.
  6. Hollow shaft design, can be equipped with hose swivel joint to avoid hose entanglement.

Application:

Automated desktop dispensing machines are widely used in the communications, electronics, PCB industries, including mobile phone button dispensing, coil dispensing, PCB board bonding sealant, LCD sealant, IC packaging, IC bonding, circuit components and substrate bonding, printing Glue the circuit board and so on.

Specifications:

Model

SEC-E380R

SEC-E480R

Working range

380(X)╳380(Y)100(Z)mm

480(X)╳480(Y)╳100(Z)mm

Machine dimension

520*583*745 mm

620*683*745 mm

Rotate angle

±360º

Memory storage

999 program setup (each program store up to 65535 spots)

Y/Z payload

7kg/3kg

Movement patterns

4 axis spot to spot, continue line, arc

Resolution

0.01mm

Repeat accuracy

±0.025mm

Operating method

LCD, Teach pendant

Movement method

Micro stepper motor, belt

Power supply

AC220V  50-60HZ   0.7KW

Machine dimension

520*583*645 mm

620*683*645 mm

Machine weight

Approx. 53KG

Approx. 65KG

Working environment

Humidity: 20-90%, Temperature 0-40℃

Supporting System

1.5 gallons material pressure tank

Material

This desktop dispenser setup is suitable for 1-part fluid, glue automatic dispensing purpose. Please feel free to send your MPP information; Material, Product, Production details and requirement to us, our engineers will provide free evaluation and solution.



MANUFACTURING

Although the desktop industrial glue dispenser seems to have only XYZ axis, it seems to just has a simple structure, but professional production lines, such as EMS manufacturing factories are generally require very precise, some are up-to nanometer. A professional industrial desktop dispenser may has to travel back and forth for several kilometers and dispense thousands of times, so do not underestimate the quality requirements of a desktop dispensing robot. We provide professional, heavy-duty automatic dispensing machines. "Dispensing is no small matter, our quality starts from the desktop."

Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1
Auto desktop glue dispensing machines production floor Second Ingelligent Equipment photo 1

Available in stock:

Most models of our desktop / benchtop dispensing machines are available in stock for fast delivery, between 10-15 days, we accept URGENT order in case if needed. In an average month, we stock-up about 100 units of standard sizes of the machines. Please contact us now to discuss and arrange.

Auto desktop glue dispensing machines warehouse stock
Auto desktop glue dispensing machines warehouse stock
Auto desktop glue dispensing machines warehouse stock
Auto desktop glue dispensing machines warehouse stock
Auto desktop glue dispensing machines warehouse stock
Auto desktop glue dispensing machines warehouse stock

CASE

epoxy resin dispenser

What's the different between END-series and E-series desktop dispensing machines?

We provide both E-series automated desktop dispensing machines and EDN-series desktop dispensing machines. E-series desktop model is latest model built with one-piece aluminum die-casting body and gantry. EDN-series model is built with aluminum profiling structure. They both good precision, and durable by design and material, EDN-series will be more use for larger size and customization. Please feel free to send your inquiry and requirement to us, our professional engineers will analyst and recommend the right model professionally.

30cc syringe fluid glue desktop dispensing machine

E-series

30cc syringe fluid glue desktop dispensing machine

EDN-series

LED Driver, Power-supply

Our two-component vacuum chamber potting machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).

FAQ

1.Are you trading company or manufacturer?2021-08-26T11:19:43+08:00

We are direct manufacturer.

2.What is your terms of packing?2021-08-26T11:20:44+08:00

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?2021-08-26T11:21:07+08:00

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?2021-08-26T11:24:19+08:00

EXW, FOB,CIF…

5.Can you produce according to the sample testing?2021-08-26T11:22:35+08:00

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?2021-08-26T11:22:44+08:00

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?2021-08-26T11:22:53+08:00

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?2021-08-26T11:24:59+08:00

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?2021-08-26T11:25:18+08:00

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?2021-08-26T11:26:02+08:00

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.

Technical Parameter

Model SEC-400Z/ZH
Working ranges 400(X)╳300(Y)╳100(Z)mm
Travel speed 0-500mm/sec
Mixing accuracy ±2%/
Dispensing accuracy ±2%
Mixing ratio 100:100~100:20 or 100:20~100:10 Adjustable ratio
 Dispensing speed 1g/sec~15g/sec or 5g/sec~30g/sec
Operating method Movement control system
Working viscosity <100000CPS
Metering method Stepper motor/Rotate plunger pump/Servo motor, piston pump
Transfer method Servo motor/ball-screw
Power supply AC380V 50HZ 3.0KW
Machine dimension 2350(L) ╳1600(W)╳2100(H)mm
Machine weight About 600KGn
Working environment Humidity:20-90%, Temperature: 0-40℃
CCD visual camera High definition fiducial CCD camera
Computer Computer, monitor, mouse and keyboard
Operating system Windows7
Control software Second Fluent
Communication protocol of the front and rear machines SMEMA
Machine dimension L779*W1255*H1500mm
Machine weight 800Kg
Power supply AC220V,50/60Hz,2Kw
Air pressure 0.65MPa±0.02MPa,0.2m³/h

Main configuration

Part

Unit

QTY

Note

PC computer Set 1

Second Original

Monitor Set 1

DELL

XYZ robotic system Set 1

Servo motor, ball-screw

Movement control Set 1

Second Original

Material tank Piece 2

Tank size (option)

Metering pump unit 2

Screw pump/Gear pump/Piston pump (according to the materials)

Mixing valve Piece 1

Static or Dynamic valve

Automated valve clean tank Piece 1

Automatic clean

Vacuum pump Piece 1

Imported
