Automatic industrial Reverse Osmosis tricot leaf prepping machine SEC-S8060WG

This is a fully automatic industrial RO cartridge element tricot, leaf cutting, inserting, folding machine. It is suitable for preparing the materials for 4040-8040, ie, 4-8 inches.

Description

Introduction

The equipment is suitable for the RO membrane tricot leaf folding process. Only one person is required to look at the equipment and be responsible for the replenishment of raw materials and the collection and transportation of folded membrane. The process of fixing the length of the membrane material, cutting, and folding, etc., is all done automatically by the equipment.

How it works?

This is a fully automatic machine. Load the spacer and membrane to its rack on the machine, and set the cutting and folding parameters, the machine will perform atuoatic feeding, cuting, inserting, and folding, there's absolute no operator needs to assist the process in the middle, unless there's alarm. After completed, the machine will alarm to ask to remove the completed products, then can setup and run again. It is fully automatic with good hoourly capacity.

Specification



Model

SEC-S8040-WG

Diameter range of spacer

Φ90-500 mm

Diameter range of membrane

Φ90-600 mm

Cutting accuracy

±0.25mm

Cutting speed range

0-400mm/s

Membrane folding range

Standard 800-1200 mm (500-1200mm can be customized)

Control System

PLC + Touch screen

Working method

Automatic

Roll material width range

950-1100mm

Unloading method

Automatic unloading

Alarm method

Raw material shortage alarm, Membrane sampling hole detection alarm

Production capacity

120PCS/H

Power

4.0KW

Power supply

AC220V/50HZ

Dimension

L4800*W1800*H1800mm

Weight

1500KG

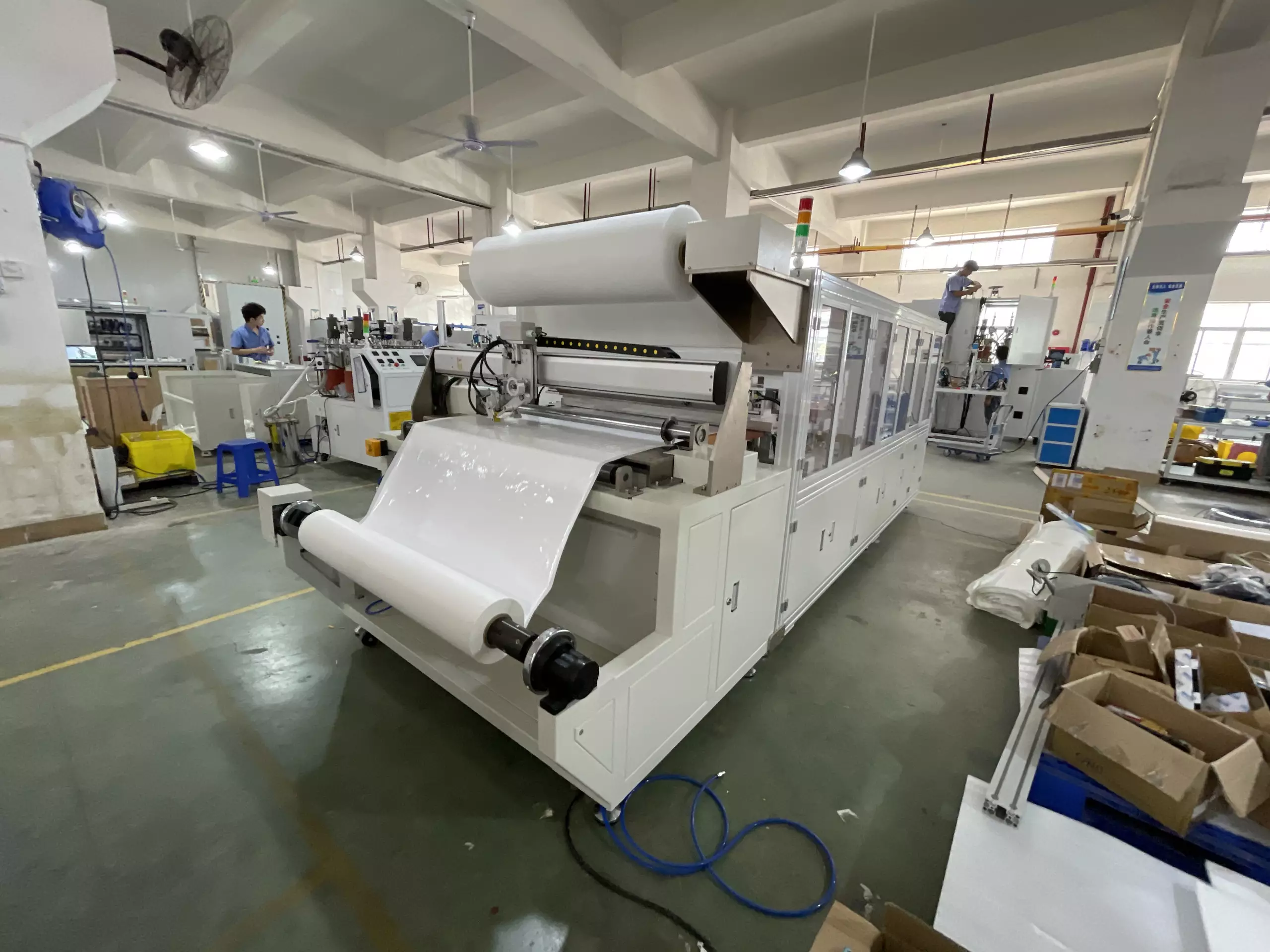

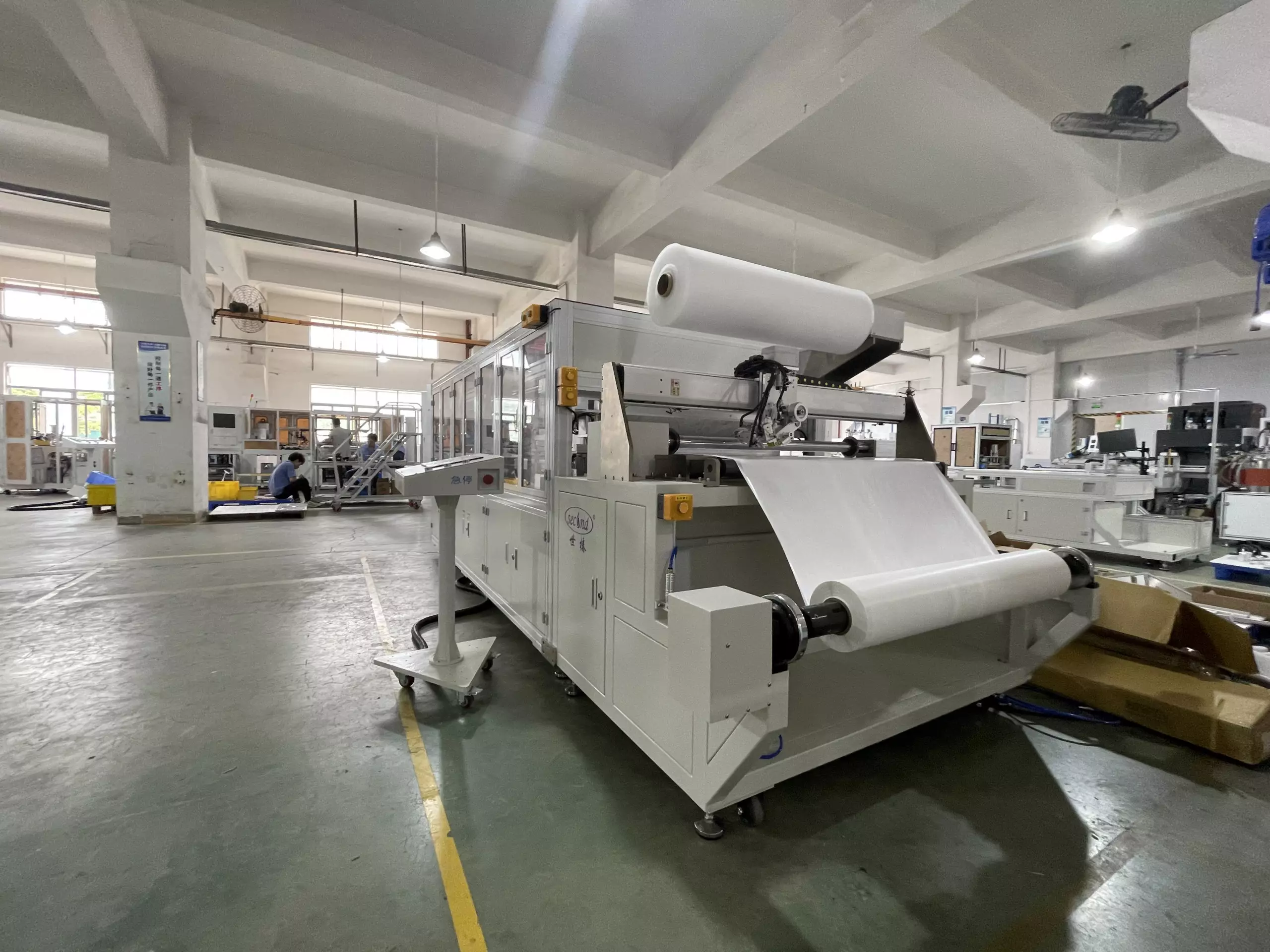

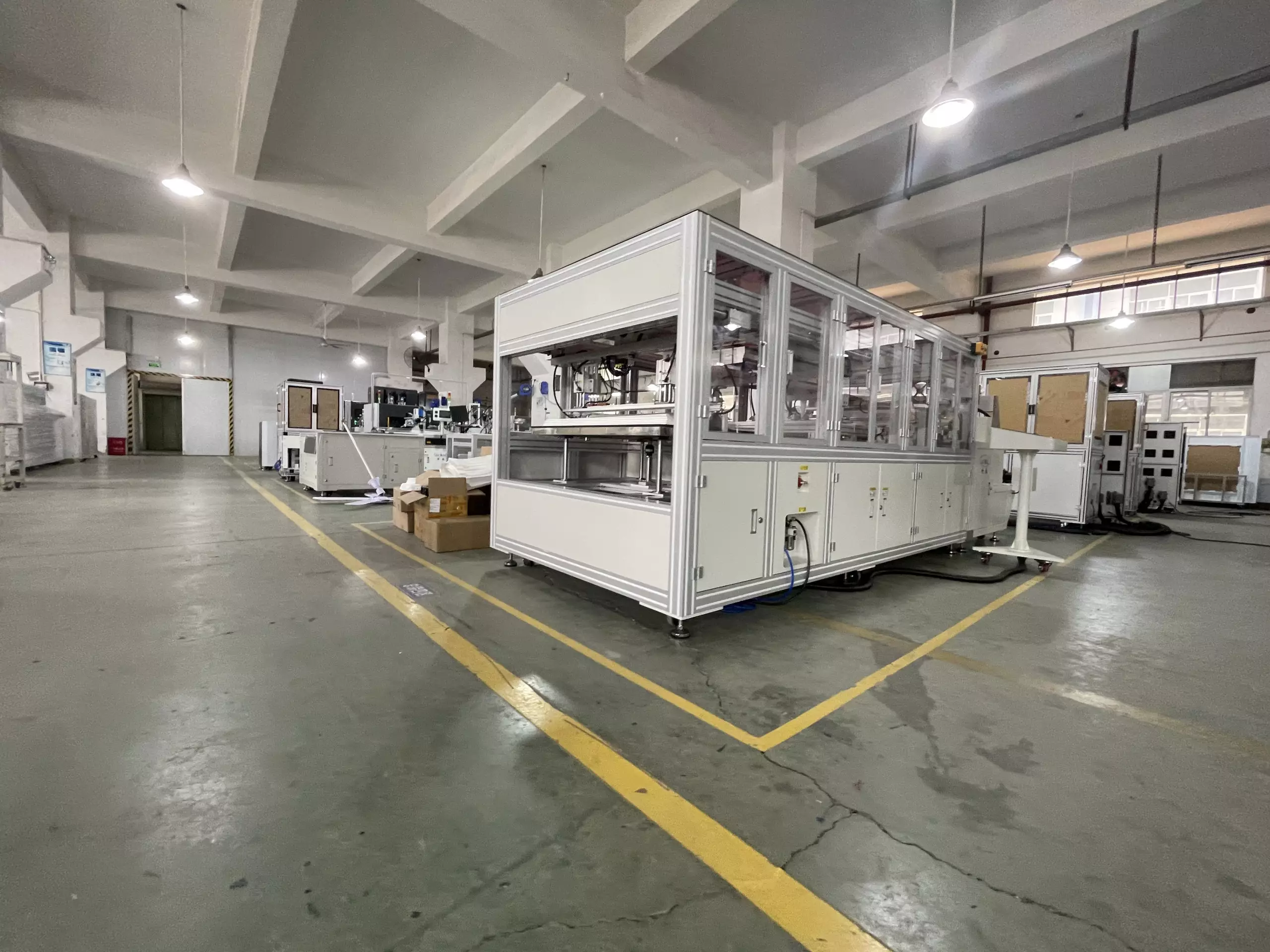

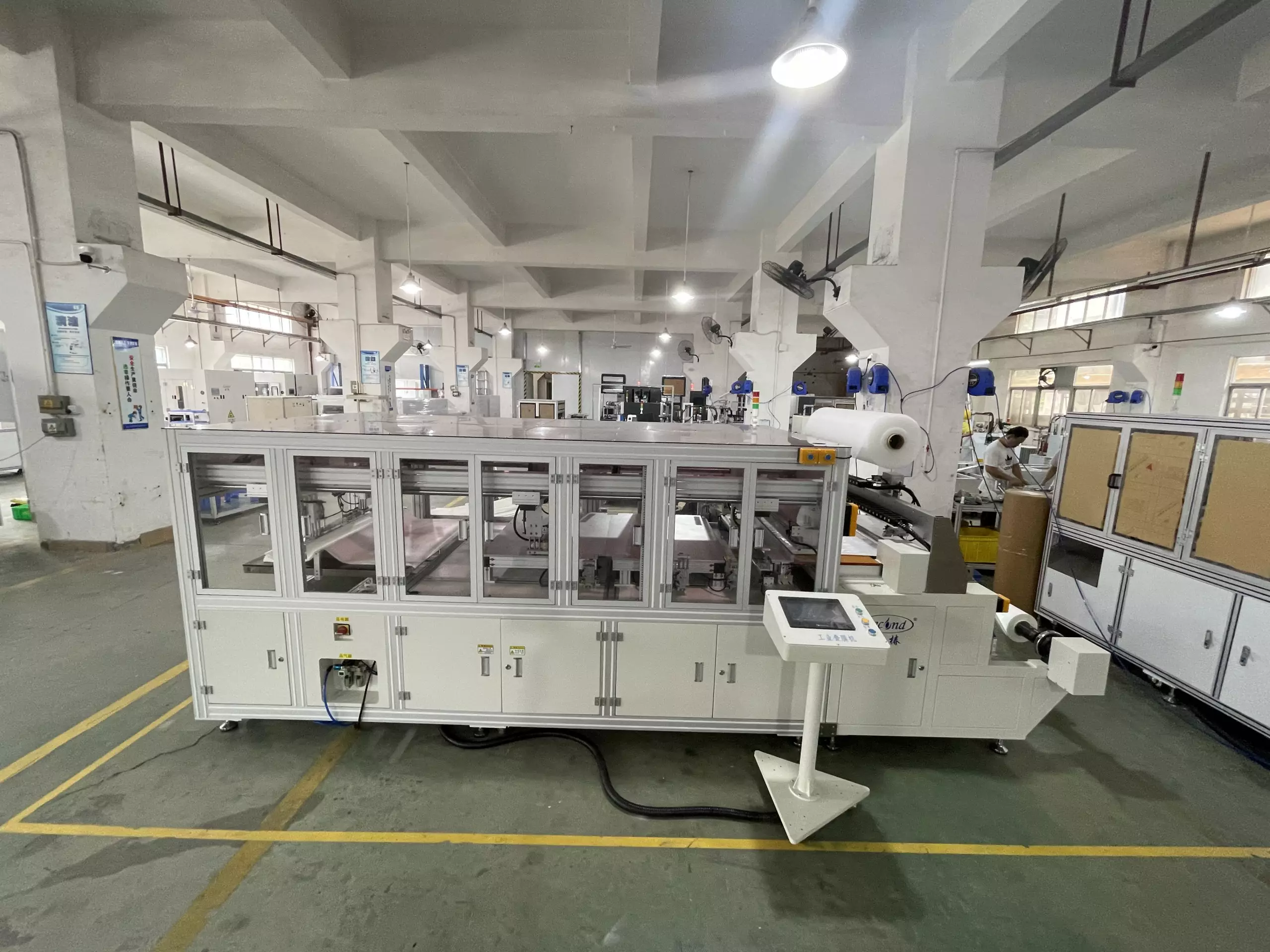

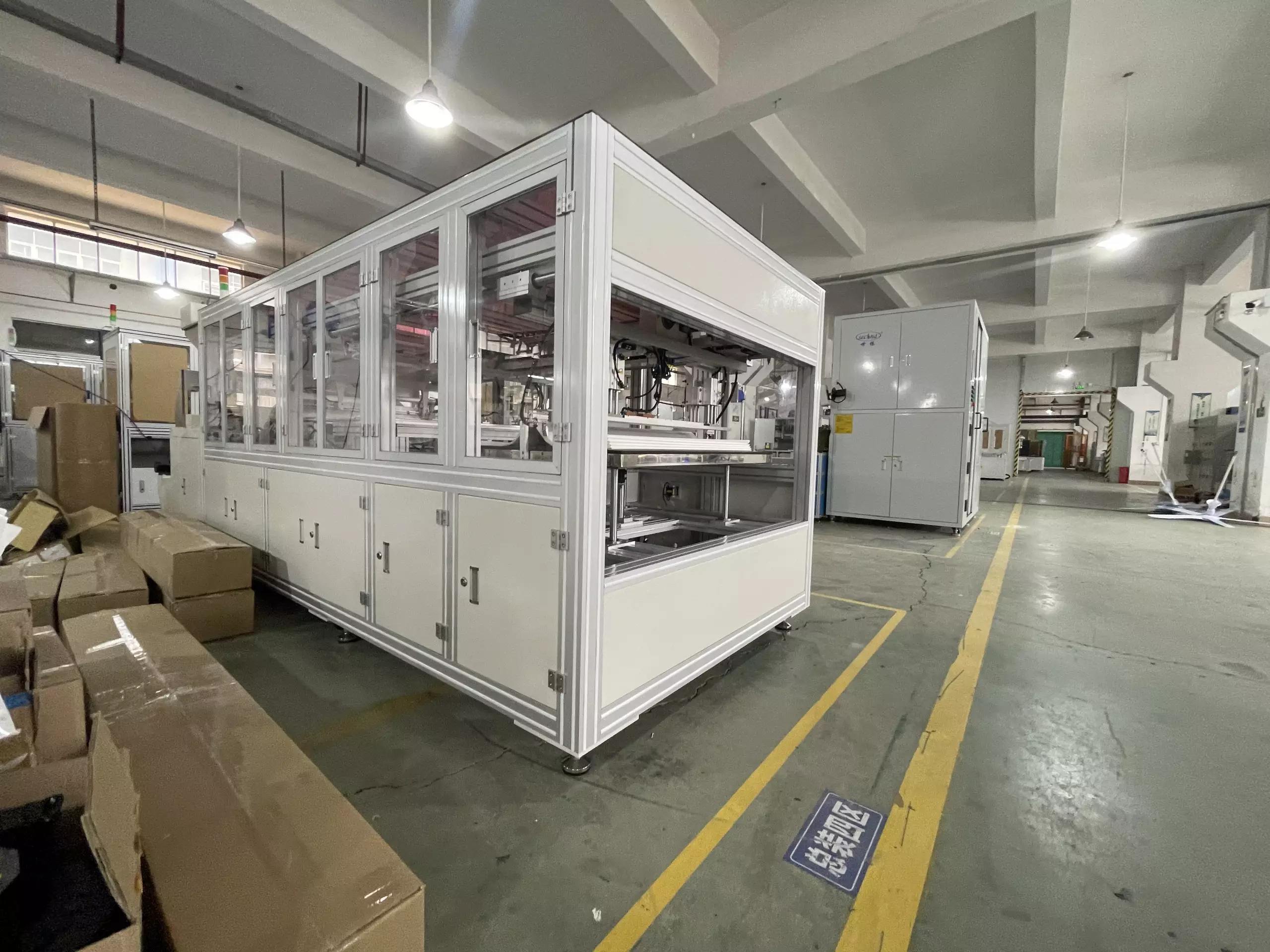

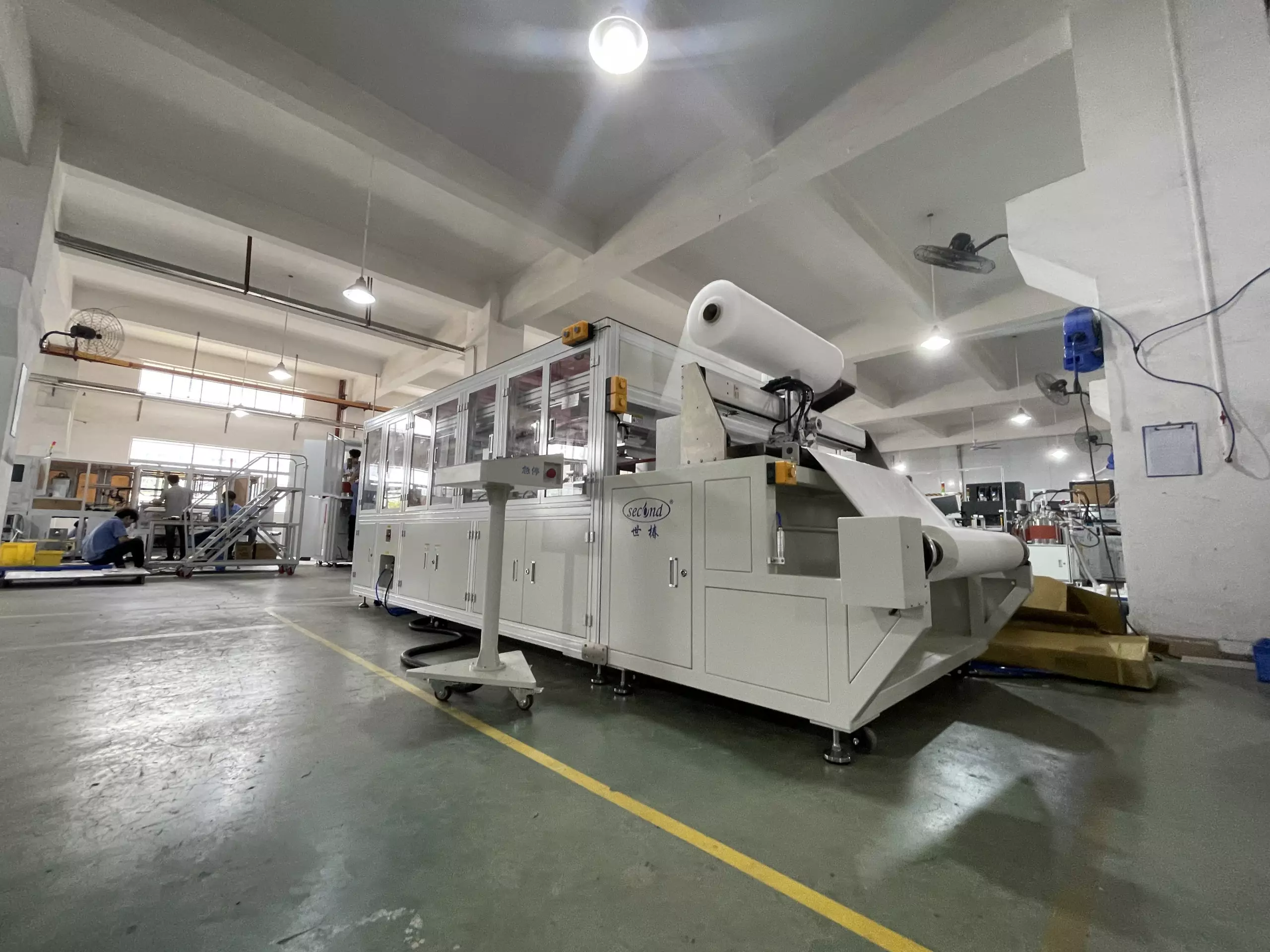

Automatic industrial ro tricot leaf prepping machine SEC-S8060WG
Automatic industrial ro tricot leaf prepping machine SEC-S8060WG -1
Automatic industrial ro tricot leaf prepping machine SEC-S8060WG -1

MANUFACTURING

 This is RO and water filter fabricating machines and equipment production floor. From the house to industrial types of RO, they were produce in this department.

Automatic industrial ro tricot leaf prepping machine SEC-S8060WG -1
Automatic industrial ro tricot leaf prepping machine SEC-S8060WG -1
Automatic industrial ro tricot leaf prepping machine SEC-S8060WG -1

The machine is effective and efficient for different type of element withing the ranges.
