Two Components Automatic Glue Dispenser Machine

4 axis high precision Servo motor screw Benchtop robot desktop glue dispenser machine SEC-E480

Performance:

Visual Five-axis Platform

● Dual rotary sations for greater flexibility

● Five-axis linkage operation, realize multi-attitudecontinuous dispensing

● Compatible with a variety of application expansionmodules for a wider range of applications

Material ref.:

UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, silicone, RTV, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal paste, solder mask paste , clear paint, screw fixer, etc.

Category: Desktop Glue Dispensing Machine Solutions Tags: #adhesive dispensing machine, #Benchtop robot, #desktop glue dispenser, #gluedispensing, #smt glue machine, #table top glue dispenser, automated glue dispensing systems, glue dispenser automatic machine, glue dispenser machine, uv glue dispensing machine

Description

Description

Features:

● Adopting stepper motor + precision imported synchronous belt drive, it can ensure high accuracy and have higher cost performance.

● The size remains the same, but the travel is increased by 20-25%, making it more compatible

● A wide variety of products, single platform and dual platform options to meet the needs of different scenarios

● A variety of expansion modules to meet the needs of multiple industries and multiple process applications

Application:

Applied to the electronics industry PCB electronic parts fixing and protection, mobile phone, notebook shell bonding, LCD glass, LED dispensing, optical lens dispensing and packaging, auto parts, hardware parts to achieve bonding and fixing

Product features:

● One-piece casting, strong structure, stable operation; smaller size, larger stroke
● Adopting the transmission method of stepper motor plus synchronous belt, it has the advantages of low cost and low noise!
● Flexible matching of different glue supply/control systems; realize dispensing of different products with different processes

Specification

Mdoel	SEC-E380SV	SEC-E480SV	SEC-ED540SV
Dispensing desk	Single-desk (Y-axis)		Dual-desk (2 Y-axis)
Dispensingrange	X380/Y380/Z100mm	X480/Y480/Z100 mm	X500,Y1/400,Y2/400,Z100mm
Machine dimensions	L520 x W583x H750mm	L620 x W683x H750mm	L712 x W683x H680 mm
Max payload	Y20kg / Z15kg	Y20kg / Z15kg	Y20kg / Z15kg
Max travel speed	X/Y800,Z100 mm/s	X/Y800,Z100 mm/s	X/Y800,Z100 mm/s
Travel system	Servo motor, lead screw
Positioning accuracy	X/Y/Z:±0.015
Memory storage	120G
operating system	Win7 and above
Control system	Second Fluent
visua system	German HD digital camera
light source	LED red / blue / white ，Coaxial light source
Movement method	Point-to-point, continuous direct selection, arc, 3D curve, etc.
Power input	AC220V 50/60Hz 1.2kw
Working environment	Relative humidity 20-90%, temperature 0-40℃
Machine weight	40kg (est.)	55kg (est.)	60kg (est.)

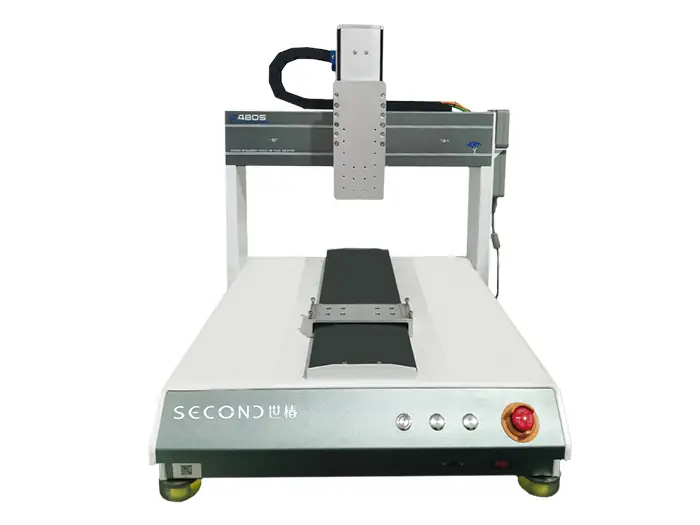

Detailed display diagram

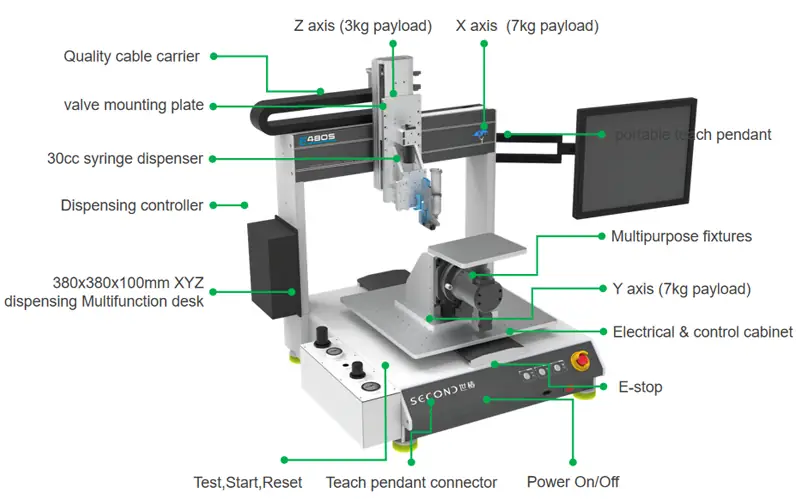

Structure diagram

Product Description

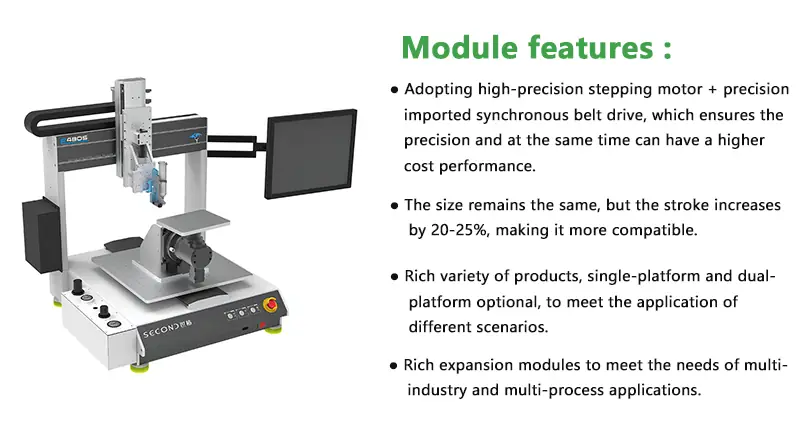

Module features :

Dispensing process:

Commonly used glue:

Multi-valve picture display:

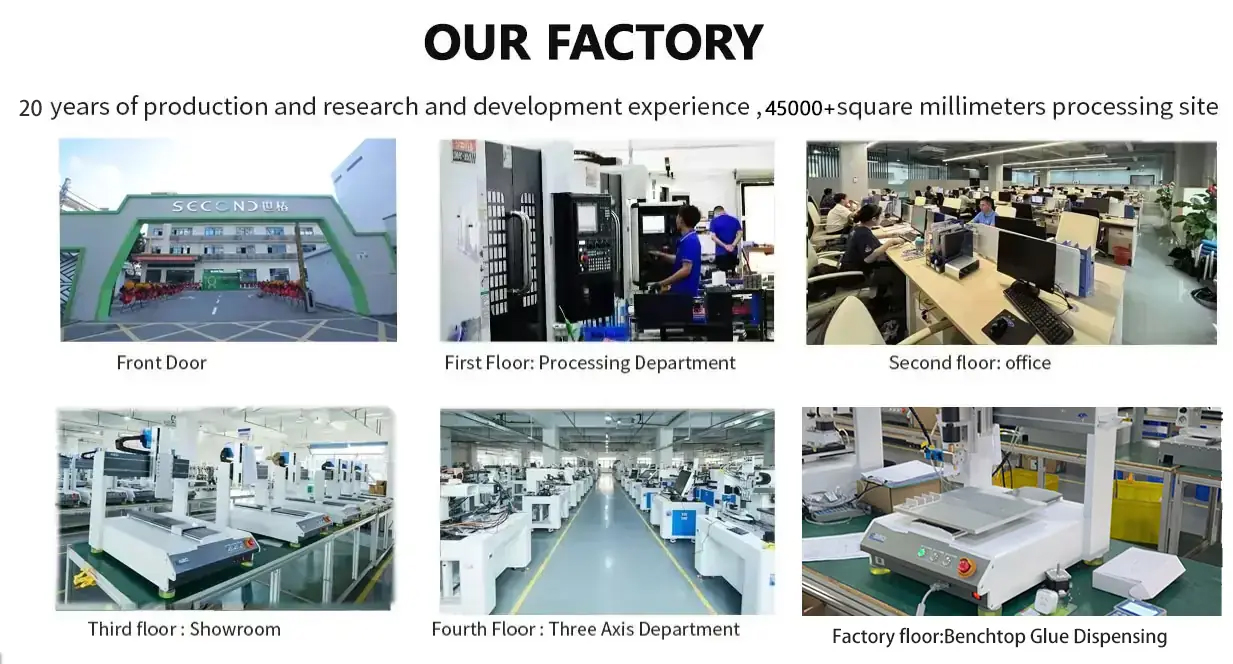

OUR FACTORY (A3)

Logistics packaging collection

What's the different between END-series and E-series desktop dispensing machines?

We provide both E-series automated desktop dispensing machines and EDN-series desktop dispensing machines. E-series desktop model is latest model built with one-piece aluminum die-casting body and gantry. EDN-series model is built with aluminum profiling structure. They both good precision, and durable by design and material, EDN-series will be more use for larger size and customization. Please feel free to send your inquiry and requirement to us, our professional engineers will analyst and recommend the right model professionally.

E-series Desktop Glue Dispensing Machine SEC-E480

Desktop Glue Dispensing Machine SEC-E380

LED Driver, Power-supply

Our two-component vacuum chamber potting machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).

FAQ

1.Are you trading company or manufacturer?ehaitech2021-08-26T11:19:43+08:00

1.Are you trading company or manufacturer?

We are direct manufacturer.

2.What is your terms of packing?ehaitech2021-08-26T11:20:44+08:00

2.What is your terms of packing?

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?ehaitech2021-08-26T11:21:07+08:00

3.What is your terms of payment?

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?ehaitech2021-08-26T11:24:19+08:00

4.What is your terms of delivery?

EXW, FOB,CIF…

5.Can you produce according to the sample testing?ehaitech2021-08-26T11:22:35+08:00

5.Can you produce according to the sample testing?

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?ehaitech2021-08-26T11:22:44+08:00

6.Do you test your goods before delivery?

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?ehaitech2021-08-26T11:22:53+08:00

7.How do you make your business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?ehaitech2021-08-26T11:24:59+08:00

8.What is the working principle of the Glue Dispensing Machine?

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?ehaitech2021-08-26T11:25:18+08:00

9.What is the difference between a glue dispenser and a potting machine?

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?ehaitech2021-08-26T11:26:02+08:00

10.What kind of glue does the dispenser generally use?

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
