Second Double liquid static glue dispensing valve

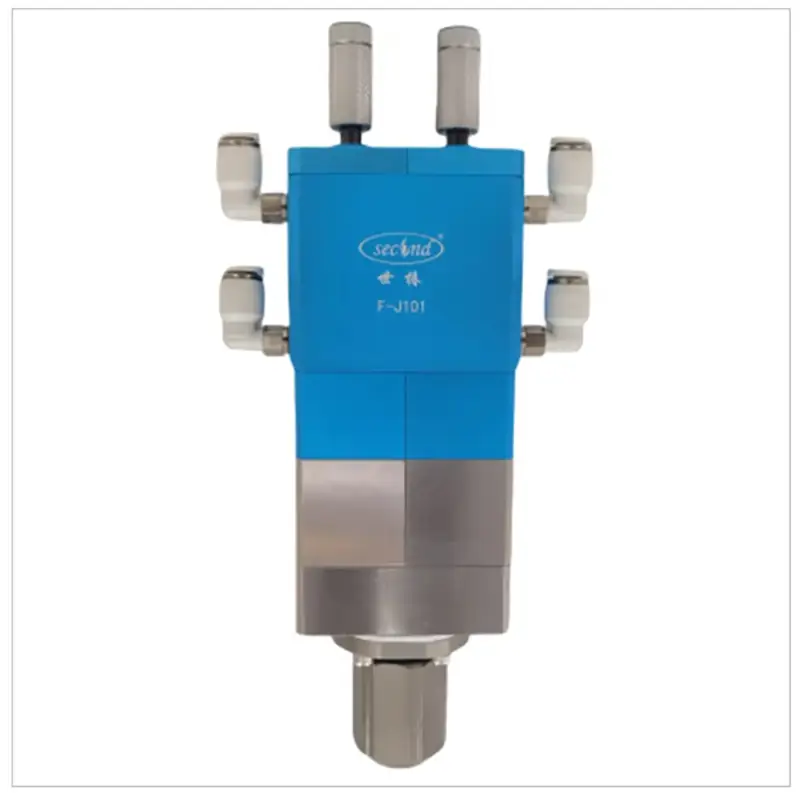

F-J series two-liquid static glue dispensing valve is a two-component back-suction static mixing switch valve, which acts on the switch and mixing of two-component glue in the flow channel. It uses a back-suction switch to control the two glues A and B to enter the mixing tube, and then apply them to the product after static mixing! It is suitable for a variety of two-component mixing and coating processes.
Features
● It acts on the switch and mixing of two-component fluids in the flow channel, using pull-back switch and static mixing.
● It controls the A and B liquids to enter the static mixing tube for mixing at the same time.
● It is suitable for medium and low viscosity fluids.
● It can be connected to various types of static or dynamic mixing tubes and is suitable for various forms of dual-liquid dispensing equipment.
It is suitable for various hybrid ratio glue and adopts a suction mode, and the phenomenon of brushed, ticking, leakage and other phenomena.Simple operation and convenient installation.
It is suitable for various hybrid ratio glue and adopts a suction mode, and the phenomenon of brushed, ticking, leakage and other phenomena.
Simple operation and convenient installation.
● It acts on the switch and mixing of two-component fluids in the flow channel, using pull-back switch and static mixing.
● It controls liquid A and liquid B to enter the static mixing tube for mixing at the same time.
● It is suitable for medium and low viscosity fluids.
● It can be connected to various types of static or dynamic mixing tubes, and is suitable for use in various forms of dual-liquid dispensing equipment.
| Item | Parameter |
| Model | F-J101 |
| Dimension | 230*105*40mm |
| Weight | 1700g |
| Driving method | Pneumatic |
| Inlet size | Rc1/4 |
| Channel material | Stainless steel |
| Stem material | Stainless Steel + heat treated + lated/ceramic |
| Applicable viscosity | 0-100000cps |
| Sealing material | NBR+PTFE+PA |
| Piston drive air pressure | 0.2~1Mpa |
| Inlet pressure | ≤0.7Mpa |
| Flow rate | 15L/min(water/1Mpa) |
| Seal life | ≤300000 times |
| Operation frequency | ≤14 times/s |
Double liquid static glue dispensing valve can be applied to the following fields:
● Automation
● Electronics
● Mechanical engineering
● Automotive electronics
● Medical
● Pharmaceuticals
● Information technology
● Consumer electronics
Suitable for dispensing substrates of various shapes and surface materials.
Durable Construction: Made of ultra-high hardness stainless steel SUS440C, the dispensing valve is durable and can withstand the rigors of continuous use in industrial environments.
Easy Integration: The dispensing valve is designed to be easily integrated into your existing SECOND AB 2K two-part component dispensing and filling machine, minimizing downtime and improving production efficiency.
Maintenance Friendly: The modular design of the valve allows for quick and easy disassembly for cleaning and maintenance. Reduces reliance on special tools. Avoids the need for long downtime.
Glue and craft：
F-J101 Double liquid static glue dispensing valve, using the most advanced dispensing technology, can achieve extremely high precision dispensing, especially suitable for high viscosity and ultra-high viscosity media. It can be widely used in a variety of different liquids,
such as:
● SMT adhesive
● Filled conductive adhesive
● Conductive silver glue
● Solder paste
● Flux
● Silicone
● LED phosphor
● Bottom filler
● Hot melt adhesive
Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.
This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
