SEC-MEA inspection machine

PEM H2 fuel cell battery fabricating machine

SEC-MEA inspection machine

High expansibility, high compatibility, meets different materials requirements, with smart auto material sizes inspection.

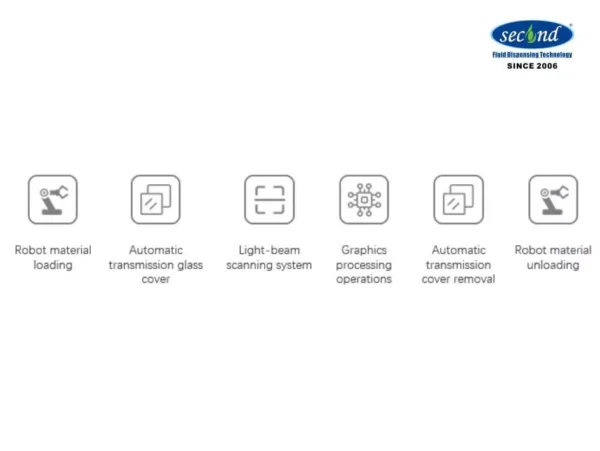

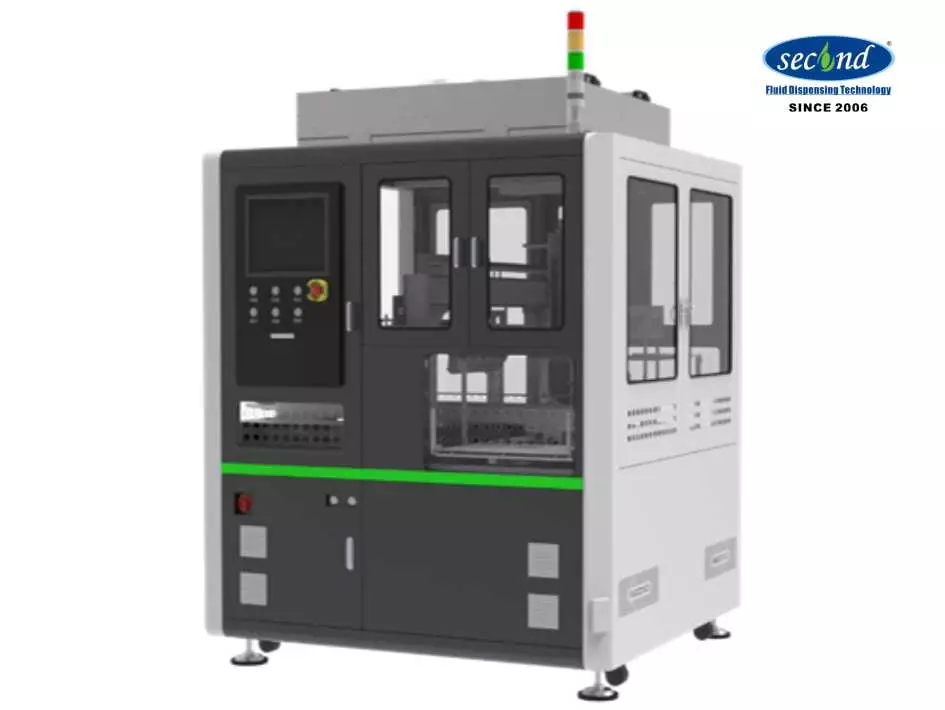

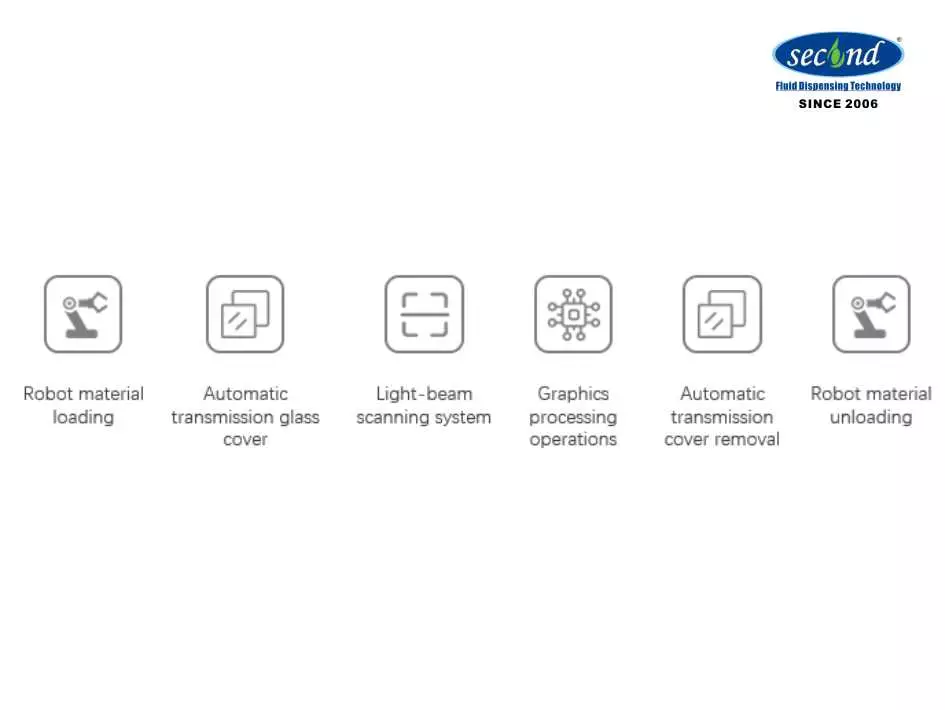

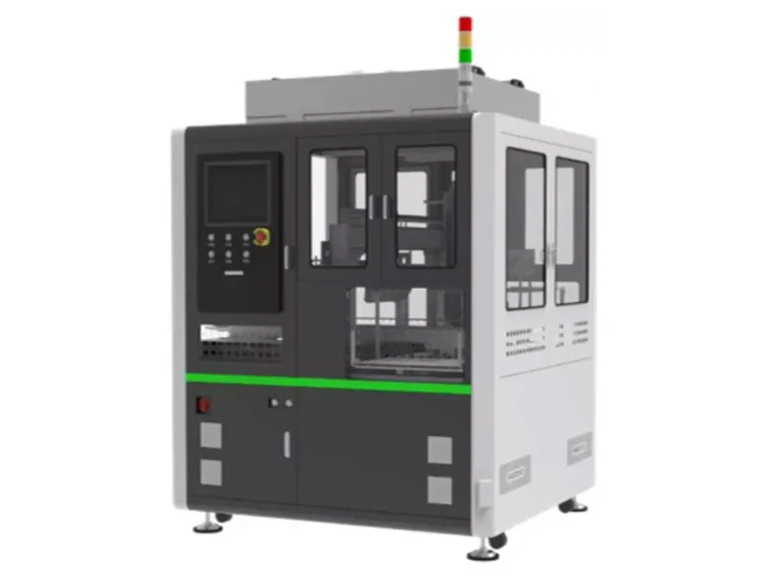

The system is designed for the MEA materials’ sizes auto inspection purposes, it can be working alone, or working in an inline system. It is developed for high-precision performance auto inspection of the MEA materials’ sizes. The loading and unloading of the materials are achieved by a robot. During the inspection, the system is able to apply a layer of high-transmission glass cover on the MEA to enhance the inspection as need. To ensure the smoothness of the material, the equipment uses a high-precision, high-definition line scan camera for scanning and imaging. After the inspection is completed, the robot is able to sort out OK or rejected products and unload them separately.

Category: Hydrogen Fuel Cell Fabrication Machine Tags: #andoeplate, #bipolarplate, #cathodeplate, #electrolyzer, #fuelcellbattery, #grahiteplate, #h2fc, #hydrogenbattery, #hydrogenfuelcell, #MEA, #pemfuelcell, #pemhydrogen, #sofc

Description

Description

Introduction：
Hydrogen fuel cell battery is getting more important as an alternative power source for automotive vehicles, and also more and more stationary power supply are being developed. It is also a type of green energy, it has zero emission. Most of the machines and production lines we listed on this web-site have been built and sold to many clients already, and they have been proved success and reliable.
The company has begun to enter into the field of hydrogen fuel cell equipment in 2014. After years of researches and developments, combined the good experience in automated adhesives dispensing knowledge and the hydrogen fuel cell battery fabricating know-how, the company has successfully developed and sold various type of PEM FC bipolar plate automatic dispensing, sealing, and packaging machines as well as production lines. We also provide the membrane electrode assembling, packaging, machine, and production lines as well as automatic battery stacking machine, air tightness testing machine, testing and inspecting machines, fully automatic stack system, assembly production lines and other related equipment. We have established a subsidiary company name Suzhou Second Hydrogen Energy Technology Co., Ltd for this section of business, Shenzhen Second Intelligent Equipment Co. Ltd. is the mother-company. Please feel free to contact us, we provide free evaluation, proposal, and looking into long-term cooperation partnership to develop the businesses, and gives the Earth one more green energy option.

Equipment introduction：

This machine can be using for various materials’ sizes detection, such as from the edge of CCM, GDL to the edge of the PET, and can also be extended to the other related materials size detection if needed
The system adapts high-definition line scan camera
The grating-ruler triggers the visual system to capture of the image
High quality SEC self-developed detection system, able to detect high accuracy to ±0.02mm
System equips with large detection data storage capacity

Main functions

Hihg-defination line scan
Smart auto scale displacement sensor
Quality shock pad
High precision granite machine station

Optional functions：

FFU fan filter unit
High precision non-contact digital sensor
High translucent quartz glass cover
Fully automatic silo
High precision linear motor

Specification

Machine footprint	LengthWidthHeight：1700mm1700mm2000mm
Machine weight	1800kg
Applicable product range	Max:500300(mm), Min:100100(mm)
Pix accuracy	≤0.02mm/pixel
Resolution	16384*1
Inspection accuracy	±0.02mm
Imaging mode	1-line
B&W / Color	Black & white
Scan speed	200mm/s
Operating method	PC
NG unloading	Material collecting bin
Power supply	AC220V,50/60Hz,3.5Kw
Air supply	0.5~0.7Mpa
Working environment	Temperature：22.5±3℃，Humidity：20~90%

Supportive dispensing systems

Hydrogen fuel cells have been developed for many years, and the current technology is very mature, and the scientists have solved many technical problems. Now it is necessary to break through the bottleneck of mass production, so that the cost of each battery stack can be greatly reduced. To achieve this, automatic equipment production must be employed. We have prepared it for you here. Welcome your inquiry, we provide standard equipment and custom equipment. Whether it is for business operation or environmental protection, it is beneficial for us to have more green new energy like H2FC.

PEM H2 fuel cell battery fabricating machine 1

MANUFACTURING

LED Drive Power

The SECOND glue potting equipment is used in the LED drive power supply to play a role in heat dissipation, moisture proof, waterproof, and flame retardant.

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equipped with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
