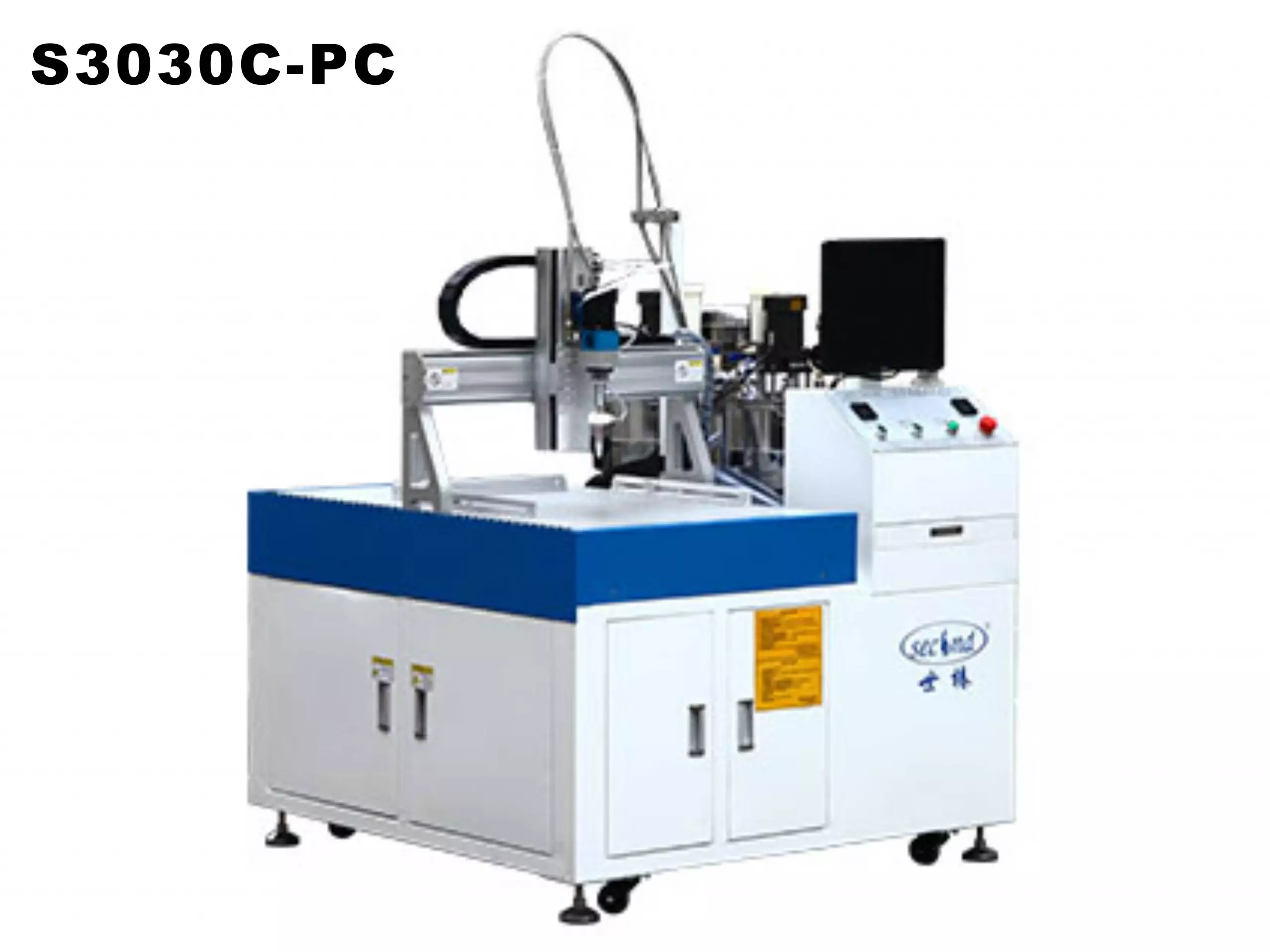

2-part AB adhesive materials auto potting casting machine - S3030C-PC

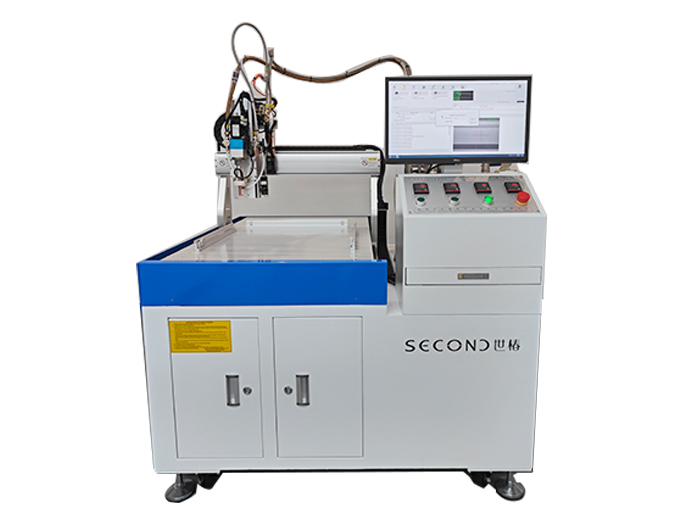

SEC-S3030C 3 axis two 2 component ccd visual glue dispensing machine automatic AB glue epoxy resin dispenser mixing potting machine robot

The machine equips with 3 axis robotic system. It is operated by Second originally developed software, windows based. It can not only set trajectories such as set points, lines, circles, and arcs, but also has advanced functions such as three-dimensional potting through program setting. It is automatic metering, mixing, and dosing base on pre-determined ratio. The machine equips with automatic refill, and degassing system. It can also add agitate stirring, tank heating, and automatic valve cleaning. The operation is simple and user friendly, which greatly saves the manual mixing time, improves efficiency, and also save material and labor cost.

Able to dispensing various type of two-component adhesive material on electric components. For PCB, electronic components, lighting, household appliances, igniter, automotive supplies, vacuum cleaner, filter, and many other fields. （NOTE：The main different between S3030C and S3030C-X is the machine’s casing design. S3030C-X is the latest design.）

Category: Tags: , , ,

Description

Features:

  • Works with XYZ Cartesian dispensing robot.
  • It is able to dispense beads, lines, arc, circle, and other graphical patents.
  • Automatic refilling, degassing, metering, mixing, and dosing homogenously and continuously.
  • Able to dispense beads, lines, circular, arc, and graphical patterns.
  • Compact machine body with 500mmx700x100 XYZ dispensing range.

Benefits:

  • This is a compact machine but with flexible design to meet various daily small to medium scale of encapsulating production.
  • Reduces materials waste or product waste.
  • Easy for production operating and managing.
  • User-friendly and low maintenance machine.



Specifications:

Model

SEC-S3030C

Dispensing range (max.)

500(X)╳700(Y)╳100(Z)mm

Travel speed

0-300mm/sec

Mixing accuracy

±2%

Dosing accuracy

±2%

Mixing ratio

100：100～100：20 or 100：20~100：10 adjustable

Dosing speed

1g/sec～15g/sec or 5g/sec～30g/sec

Workable viscosity

<100000CPS

Operating system

PC computer or HMI touchscreen

Metering system

Step motor + Gear pump / Screw ump, or servo + piston pump

Travel/transporting system

Micro step motor + synchronize belt

Power supply

AC220V  50HZ  2.5KW

Machine footprint

1300(L) ╳1250(W)╳1600(H)mm

Machine weight

About 330KG

Working environment

 Temp.：0-40℃，Humidity：20-90%

Included functions:

1

Material automatic refill pump (automatic draw material into machine tank)

2

Degassing system (draw out air to make sure no bubble)

3

Upper and lower material level sensors (avoid too much or too little material)

4

Air filter (make sure incoming pressurized air is clean)

5

Buffer tank (catch accident spilled material)

6

Silica gel (for dehumidify)

7

XYZ axis dispensing robot

Additional configurations / functions list (these are options base on materials and production requirements with additional cost)

1

Available in touch screen operation

2

Available in 15, 30, 70 liters tanks’ sizes (customize is welcome with additional cost)

3

Available in Dynamic or Static valve (depends on materials)

4

Agitate motor (tank stir)

5

Tank heating jacket (Silicone heater with auto regulator)

6

Heating hoses (depends on materials)

7

Visual-assisting CCD camera, for simple trajectory design. When uses, operator do not need to look at nozzle, simply just look at the monitor to set the dispensing trajectory via the lens. (PLC control machine will not apply)

8

Automatic CCD fiducial camera, reading the marking points and perform automatic position correcting. (PLC control machine will not apply)

9

Mixing valve and mixing nozzle automatic flushing clean system

10

Pump pressure sensor (Monitoring the materials’ pump pressure, in case if over or under pressure, it will stop and alarm to alert)

11

Mixer tube clogging sensor (for dynamic valve, monitoring the mixing tube in case if clogged, it will alarm in 1-3 sec. to alert )

12

Pump sizes, available in 3cc, 8cc, 12cc, 24cc, and so on… (it is determined by dosing speed, and volume)

13

Available in multiple dispensing valves or nozzles, such as  1, 2, 4, 6

14

Secondary pumps (e.g. when transit material from a larger pump to a second pump with very small volume required, it is determined by the dosing volume)

15

Pallet or fixture (depends on)

16

Internet remote access (For PC computer model machine only)

17

Machine additional safety protection (Moving robot cover, or safety light curtain)

PRODUCT DETAILS

Supporting Systems

2-part ab adhesive material potting casting machine optional functions
2-part ab adhesive material potting casting machine optional functions

Material

Two parts silicone, resin, epoxy, polyurethane and other AB fluids, adhesive glues material that require to be automatic degassing, mixing, potting, casting base on ratio and dosing continuously, homogenously.



2-parts AB adhesive materials 1
2-parts AB adhesive materials 1

MANUFACTURING

As two-component materials' applications are getting more and more important for various types of manufacturing demands, the needs of the automated mixing and potting machines are increased also.

CASE

epoxy resin dispenser

In this case, customer needs to dispense 2-parts AB adhesive materials to seal off the LED lights for waterproof. Our engineer recommended S3030C. The machine equips with automatic CNC Cartesian robot, and AB materials onboard material prepping tanks. The machine provides automatic material drawing, degassing, metering, mixing, and dosing function, which allows the machine to perform automatically and free the operator for other work. Moreover, dosing materials on such small items can cause repeating work-injury, so with robot, it is safe and effective. Contact us for free evaluation and proposal.

SOLUTION

2-parts AB adhesive materials 1

Material

Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.

This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).

Control

1. The machine is user friendly, and operating by Window base software.

2.The software is design and developed by Second Intelligent.

3.With over 15 years in dispensing and potting, the software has included all of the functions that meets dispensing and potting needs. And it has been fine tuned and debugged well to provide good quality output.

4.The software has English instruction, and we welcome your language as well.

5.It is absolutely user friendly. With this computer system, it comes with an internet remote control access function, this allow us to help operator to conduct troubleshooting of the software, and can be used as an online instruction as well. It is welcomed, easy and helpful for international service and support.

glue dispenser robotsliquid glue dispensing machine
liquid glue dispensing machine

LED Driver, Power-supply

Our two-component vacuum chamber potting machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

liquid glue gun dispenser

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

robot glue dispensing machine

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

glue applicator machine manufacturers

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).

FAQ

1.Are you trading company or manufacturer?2021-08-26T11:19:43+08:00

We are direct manufacturer.

2.What is your terms of packing?2021-08-26T11:20:44+08:00

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?2021-08-26T11:21:07+08:00

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?2021-08-26T11:24:19+08:00

EXW, FOB,CIF…

5.Can you produce according to the sample testing?2021-08-26T11:22:35+08:00

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?2021-08-26T11:22:44+08:00

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?2021-08-26T11:22:53+08:00

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?2021-08-26T11:24:59+08:00

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?2021-08-26T11:25:18+08:00

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?2021-08-26T11:26:02+08:00

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.

Technical Parameter

ModelSEC-400Z/ZH
Working ranges400(X)╳300(Y)╳100(Z)mm
Travel speed0-500mm/sec
Mixing accuracy±2%/
Dispensing accuracy±2%
Mixing ratio100：100～100：20 or 100：20~100：10 Adjustable ratio
 Dispensing speed1g/sec～15g/sec or 5g/sec～30g/sec
Operating methodMovement control system
Working viscosity<100000CPS
Metering methodStepper motor/Rotate plunger pump/Servo motor, piston pump
Transfer methodServo motor/ball-screw
Power supplyAC380V 50HZ 3.0KW
Machine dimension2350(L) ╳1600(W)╳2100(H)mm
Machine weightAbout 600KGn
Working environmentHumidity：20-90%， Temperature: 0-40℃
CCD visual cameraHigh definition fiducial CCD camera
ComputerComputer, monitor, mouse and keyboard
Operating systemWindows7
Control softwareSecond Fluent
Communication protocol of the front and rear machinesSMEMA
Machine dimensionL779*W1255*H1500mm
Machine weight800Kg
Power supplyAC220V,50/60Hz,2Kw
Air pressure0.65MPa±0.02MPa，0.2m³/h

Main configuration

Part

Unit

QTY

Note

PC computerSet1

Second Original

MonitorSet1

DELL

XYZ robotic systemSet1

Servo motor, ball-screw

Movement controlSet1

Second Original

Material tankPiece2

Tank size (option)

Metering pumpunit2

Screw pump/Gear pump/Piston pump (according to the materials)

Mixing valvePiece1

Static or Dynamic valve

Automated valve clean tankPiece1

Automatic clean

Vacuum pumpPiece1

Imported
