This is automatic degassing, metering, mixing, and dosing base on pre-determined ratio. The machine equips with automatic refill, and degassing system. It can also add agitate stirring, tank heating, and automatic valve cleaning. The operation is simple and user friendly, which greatly saves the manual mixing time, improves efficiency, and also save material and labor cost.

It suits for mixing and potting various types of two components materials, that requires to use manually or potable mixing head. Able to apply material on electric (wire) road board industry, electronic components industry, electric light source industry, small home appliance industry, igniter industry, automotive supplies industry, vacuum cleaner industry, filter industry and many other fields. (NOTE:The main different between S8700E and S8700E-X is the machine’s casing design. S8700E-X is the latest design. And the S8700E-ARM is equipping with Articulating Arm.)

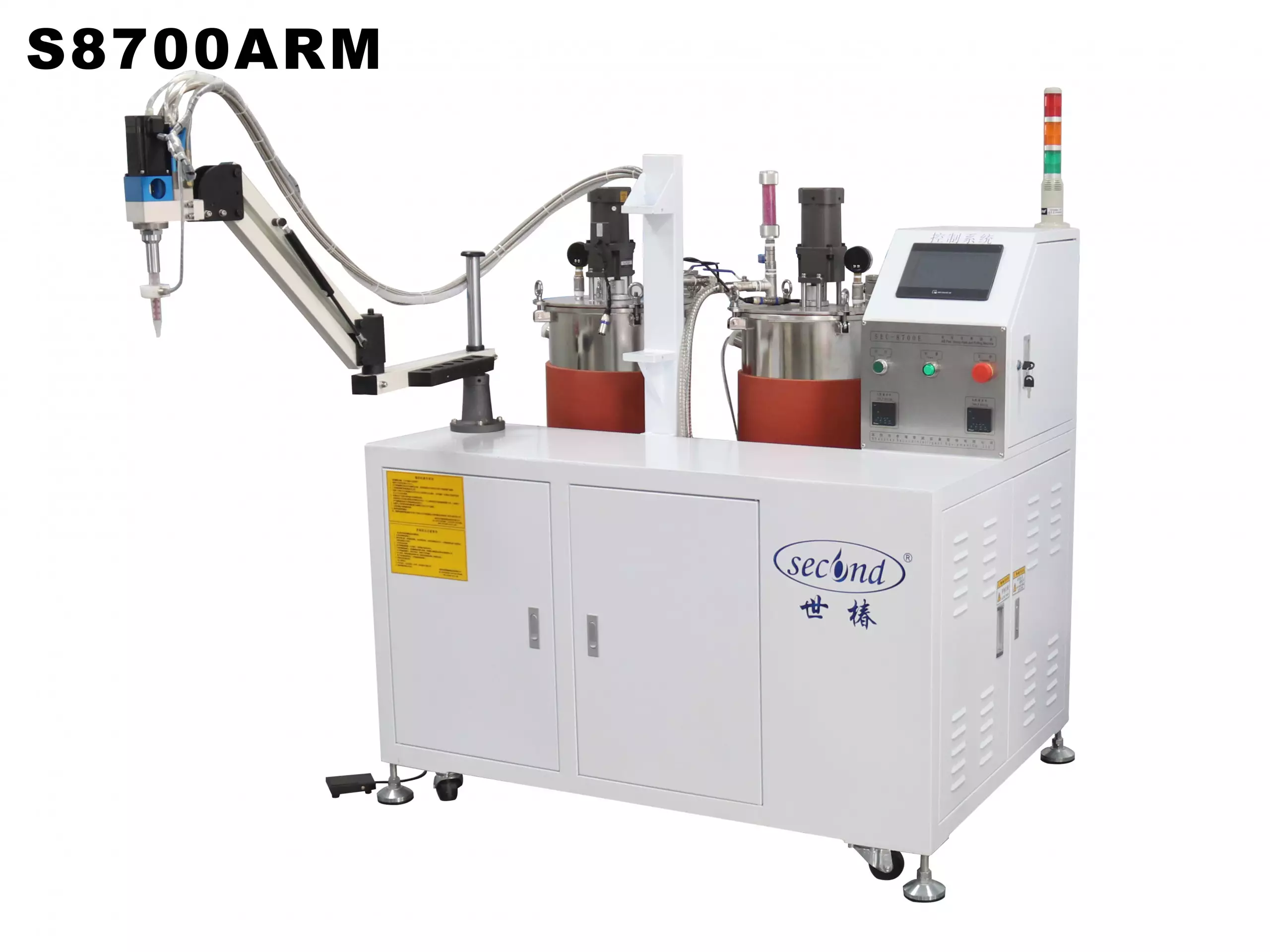

  • Equips with manual potting head.
  • Able to pair with longer material hoses.
  • User-friendly HMI touchscreen control and operating.
  • Automatic refilling, degassing, metering, mixing, and dosing homogenously and continuously.


  • Flexible to work with different length of material supplying hoses to reach and adapt to different production needs and environments.
  • With portable potting head, it is flexible to work and adapt with manual, different machines, conveyor or robot to provide 2-part adhesive materials potting function.
  • Budget-wise without XYZ robot
  • Compact machine size and able to wheel and work in different departments as where the project needs.




Operating pattern

Single, automatic, continuous

Working viscosity


Mixing ratio


Dispensing accuracy


Mixing ratio

100:100~100:20 or 100:20~100:10 Adjustable

Dispensing speed

1g/sec~15g/sec  or  5g/sec~30g/sec

Operating method

PLC, touchscreen

Metering method

Stepper motor, gear pump/screw pump servo motor, piston pump

Operating method

Footswitch/On Off switch

Anti clogging time set


Power supply

AC220V  50HZ  2.0KW

Machine dimension

1300(L) ╳900(W)╳1550(H)mm

Machine weight

About 280KG

Working environment

Temperature: 0-40℃, Humidity 20-90%

Included functions:


Material automatic refill pump (automatic draw material into machine tank)


Degassing system (draw out air to make sure no bubble)


Upper and lower material level sensors (avoid too much or too little material)


Air filter (make sure incoming pressurized air is clean)


Buffer tank (catch accident spilled material)


Silica gel (for dehumidify)


Portable mixing head (allow to potting manually or adaptor to existing machine)

Additional configurations / functions list (these are options base on materials and production requirements with additional cost)


Available in touch screen operation


Available in 15, 30, 70 liters tanks’ sizes (customize is welcome with additional cost)


Available in Dynamic or Static valve (depends on materials)


Agitate motor (tank stir)


Tank heating jacket (Silicone heater with auto regulator)


Heating hoses (depends on materials)


Mixing valve and mixing nozzle automatic flushing clean system


Pump pressure sensor (Monitoring the materials’ pump pressure, in case if over or under pressure, it will stop and alarm to alert)


Mixer tube clogging sensor (for dynamic valve, monitoring the mixing tube in case if clogged, it will alarm in 1-3 sec. to alert )


Pump sizes, available in 3cc, 8cc, 12cc, 24cc, and so on… (it is determined by dosing speed, and volume)


Available in multiple dispensing valves or nozzles, such as  1, 2, 4, 6


Secondary pumps (e.g. when transit material from a larger pump to a second pump with very small volume required, it is determined by the dosing volume)


Pallet or fixture (depends on)


Supporting Systems

2-part ab adhesive material potting casting machine optional functions
2-part ab adhesive material potting casting machine optional functions


Two parts silicone, resin, epoxy, polyurethane and other AB fluids, adhesive glues material that require to be automatic degassing, mixing, potting, casting base on ratio and dosing continuously, homogenously.


2-parts AB adhesive materials 1
2-parts AB adhesive materials 1


As two-component materials' applications are getting more and more important for various types of manufacturing demands, the needs of the automated mixing and potting machines are increased also.

2-part ab adhesive material potting casting machine with portable mixing head
2-part ab adhesive material potting casting machine with portable mixing head
2-part ab adhesive material potting casting machine with portable mixing head
2-part ab adhesive material potting casting machine with portable mixing head
2-part ab adhesive material potting casting machine with portable mixing head


epoxy resin dispenser

In this case, client need to pot AB adhesive materials to seal the electric driver. The production volume is not high, so engineer recommended to use S8700E with portable mixing head. With the machine, it can provides AB materials auto refilling, degassing, metering, ratio mixing and potting continuously and homogenously. S8700E is one of our most popular AB materials encapsulating models machine, annual sold around 400-600 units. The machine is well tested and proved stable and with user-friendly HMI touch screen control. Since the machine is in mass production, the machine budget is consider budget and competitive. Contact us now for your free evaluation and solution.


2-parts AB adhesive materials 1


Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.

This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).


1. The machine is user friendly, and operating by Window base software.

2.The software is design and developed by Second Intelligent.

3.With over 15 years in dispensing and potting, the software has included all of the functions that meets dispensing and potting needs. And it has been fine tuned and debugged well to provide good quality output.

4.The software has English instruction, and we welcome your language as well.

5.It is absolutely user friendly. With this computer system, it comes with an internet remote control access function, this allow us to help operator to conduct troubleshooting of the software, and can be used as an online instruction as well. It is welcomed, easy and helpful for international service and support.

LED Driver, Power-supply

Our two-component vacuum chamber potting machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.


EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).


1.Are you trading company or manufacturer?2021-08-26T11:19:43+08:00

We are direct manufacturer.

2.What is your terms of packing?2021-08-26T11:20:44+08:00

Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.

3.What is your terms of payment?2021-08-26T11:21:07+08:00

Depends on terms and conditions, negotiable.

4.What is your terms of delivery?2021-08-26T11:24:19+08:00


5.Can you produce according to the sample testing?2021-08-26T11:22:35+08:00

Yes, we can produce according to the tested result. We can also product base on your design.

6.Do you test your goods before delivery?2021-08-26T11:22:44+08:00

Yes, we will test 100% before delivery.

7.How do you make your business long-term and good relationship?2021-08-26T11:22:53+08:00

We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

8.What is the working principle of the Glue Dispensing Machine?2021-08-26T11:24:59+08:00

Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.

9.What is the difference between a glue dispenser and a potting machine?2021-08-26T11:25:18+08:00

Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.

10.What kind of glue does the dispenser generally use?2021-08-26T11:26:02+08:00

As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.

Technical Parameter

Model SEC-400Z/ZH
Working ranges 400(X)╳300(Y)╳100(Z)mm
Travel speed 0-500mm/sec
Mixing accuracy ±2%/
Dispensing accuracy ±2%
Mixing ratio 100:100~100:20 or 100:20~100:10 Adjustable ratio
 Dispensing speed 1g/sec~15g/sec or 5g/sec~30g/sec
Operating method Movement control system
Working viscosity <100000CPS
Metering method Stepper motor/Rotate plunger pump/Servo motor, piston pump
Transfer method Servo motor/ball-screw
Power supply AC380V 50HZ 3.0KW
Machine dimension 2350(L) ╳1600(W)╳2100(H)mm
Machine weight About 600KGn
Working environment Humidity:20-90%, Temperature: 0-40℃
CCD visual camera High definition fiducial CCD camera
Computer Computer, monitor, mouse and keyboard
Operating system Windows7
Control software Second Fluent
Communication protocol of the front and rear machines SMEMA
Machine dimension L779*W1255*H1500mm
Machine weight 800Kg
Power supply AC220V,50/60Hz,2Kw
Air pressure 0.65MPa±0.02MPa,0.2m³/h

Main configuration





PC computer Set 1

Second Original

Monitor Set 1


XYZ robotic system Set 1

Servo motor, ball-screw

Movement control Set 1

Second Original

Material tank Piece 2

Tank size (option)

Metering pump unit 2

Screw pump/Gear pump/Piston pump (according to the materials)

Mixing valve Piece 1

Static or Dynamic valve

Automated valve clean tank Piece 1

Automatic clean

Vacuum pump Piece 1
