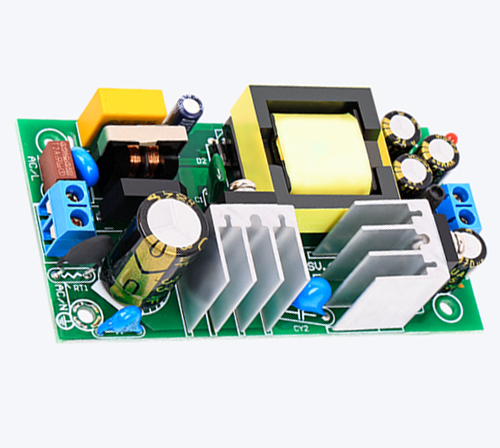

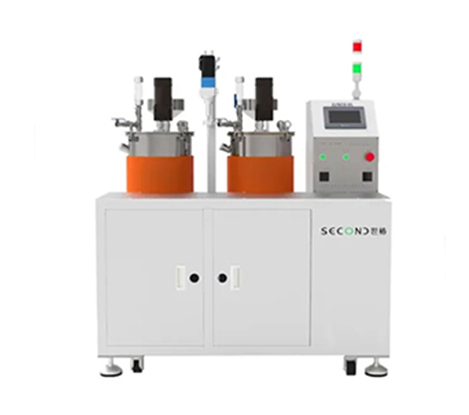

Vacuum potting of various circuit boards and component modules achieves waterproofing and corrosion resistance, ensuring long-term stable and reliable operation of electronic products.
Industry Features:
● Visual inspection + vacuuming + production line integration. Suitable for potting irregularly shaped, three-dimensional structures, components with wires, difficult placement and positioning, challenging to remove bubbles, and products with insufficient bottom filling, suitable for high-volume, multi-variety products.
● High-precision metering + micro-volume control, high-precision three-axis and multi-axis motion/positioning. Suitable for potting miniaturized, micro-sized components requiring high-density integration.
Vacuum degassing→negative pressure penetration→curing and sealing—vacuum potting ensures that circuit boards and component modules are “fully filled, tightly sealed, and durable.”
Core Process Steps:
Pre-treatment – Clean the circuit board and module surfaces to ensure good adhesive adhesion.
Adhesive Degassing – Degas the mixed adhesive under vacuum before potting to prevent air bubbles from being introduced.
Vacuum Potting – Place the product in a vacuum chamber and evacuate. Potting is performed under negative pressure, allowing the adhesive to penetrate component gaps, solder joints, and dead corners.
Restoring to Normal Pressure – Refill with air, using the pressure difference to further fill tiny gaps with the adhesive.
Cure and Molding – Curing according to the adhesive’s properties to form a continuous and dense protective layer.
RTV effectively suppresses the movement of plug-in components.
Shenzhen Second Intelligent Equipment Co., Ltd. has successfully completed the design, manufacturing, testing, and delivery of the SEC-S400-ZL-4T Two-Component Vacuum Potting Machine for a RFID Antennas Worldwide Leader in Morocco, supporting the production of LF Antenna Coil components for automotive applications.
This project represents an important milestone for Second Intelligent in the field of automotive electronics potting solutions, demonstrating its capability to provide high-precision dispensing and vacuum potting systems for global electronic component manufacturers.
The customized potting system was developed according to customer’s requirements for:
● High reliability
● Precise two-component epoxy dispensing
● Bubble-free potting
● Stable production performance
● High production capacity
● Automotive-grade quality standards
performance:

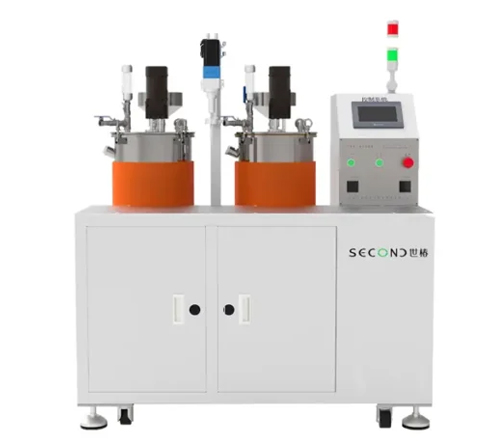

■ Through the precise control of the metering motor by PLC, the two-component glue can be accurately proportioned, automatically mixed, and automatically quantitatively discharged;
■ With functions such as vacuum feeding, vacuum degassing, heating, stirring, and automatic cleaning, it can cope with various complex glue environments; ■ Unique industrial design, elegant appearance, compact structure, stable operating system, friendly operating interface, and high cost
performance;
easy to operate;

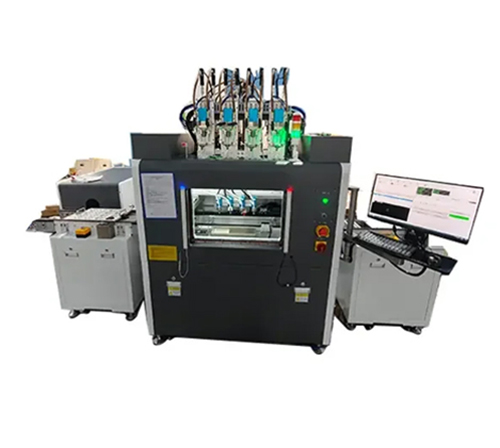

In-line vacuum potting machine system :

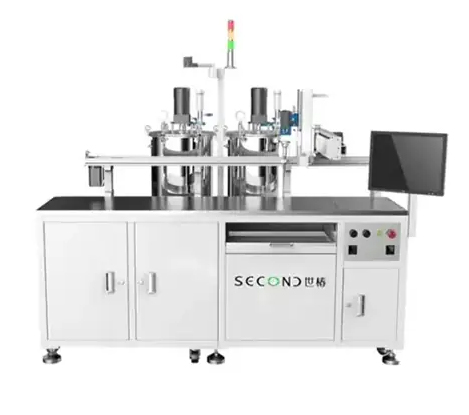

●A/B two-component glue. There are separate storage tank. The storage tank can be manually feeding or vacuum feeding. Optional glue heating and stirring functions；
●A/B glue flows into A/B metering pump through the feeding tube.Through the software control, it reaches the double liquid valve through the glue pipeline with a certain proportion and flow rate；
●Through the mixing tube to the A/B two-component glue is fully mixed , in order to achieve the purpose of curing, out of the glue time set according to program parameters, simple and convenient；
●Because the A/B glue is only mixed in the mixing tube, so cleaning only the mixing tube part；
●Adoption of four tank, refilling without stopping function
Feature:
● With a three-axis motion platform and SECOND’s unique control software, it can set points, lines, circles, arcs and other trajectories;
● At the same time, it can automatically proportion and mix two-component glues as needed, and has functions such as vacuum feeding, vacuum degassing, stirring, heating, and automatic cleaning;
● Simple operation, greatly saving manual proportioning and mixing time, improving efficiency, saving costs, and high cost performance!
● Works with XYZ Cartesian dispensing robot .
● Automatic refilling, degassing, metering, mixing, and dosing homogenously and continuously.
Do not hesitate to contact us for further information, thanks in advance for your support!
