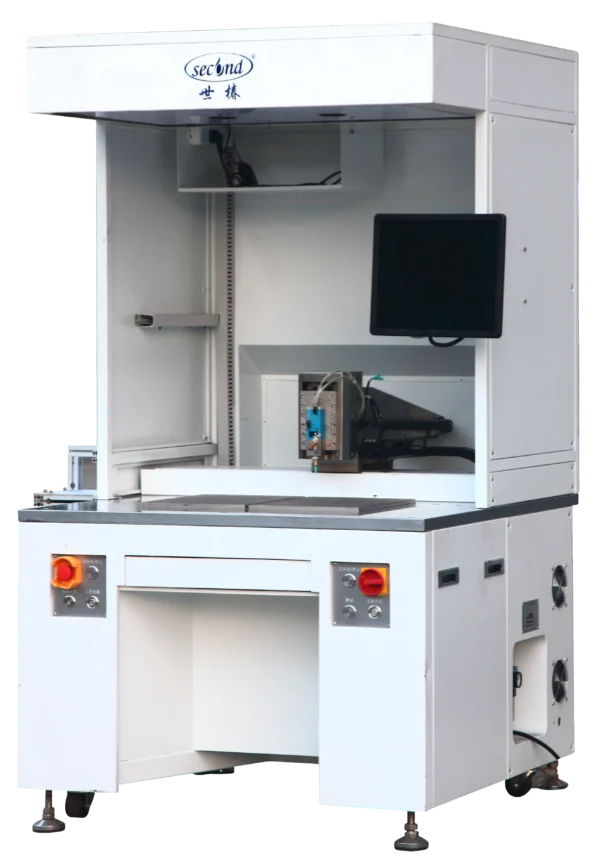

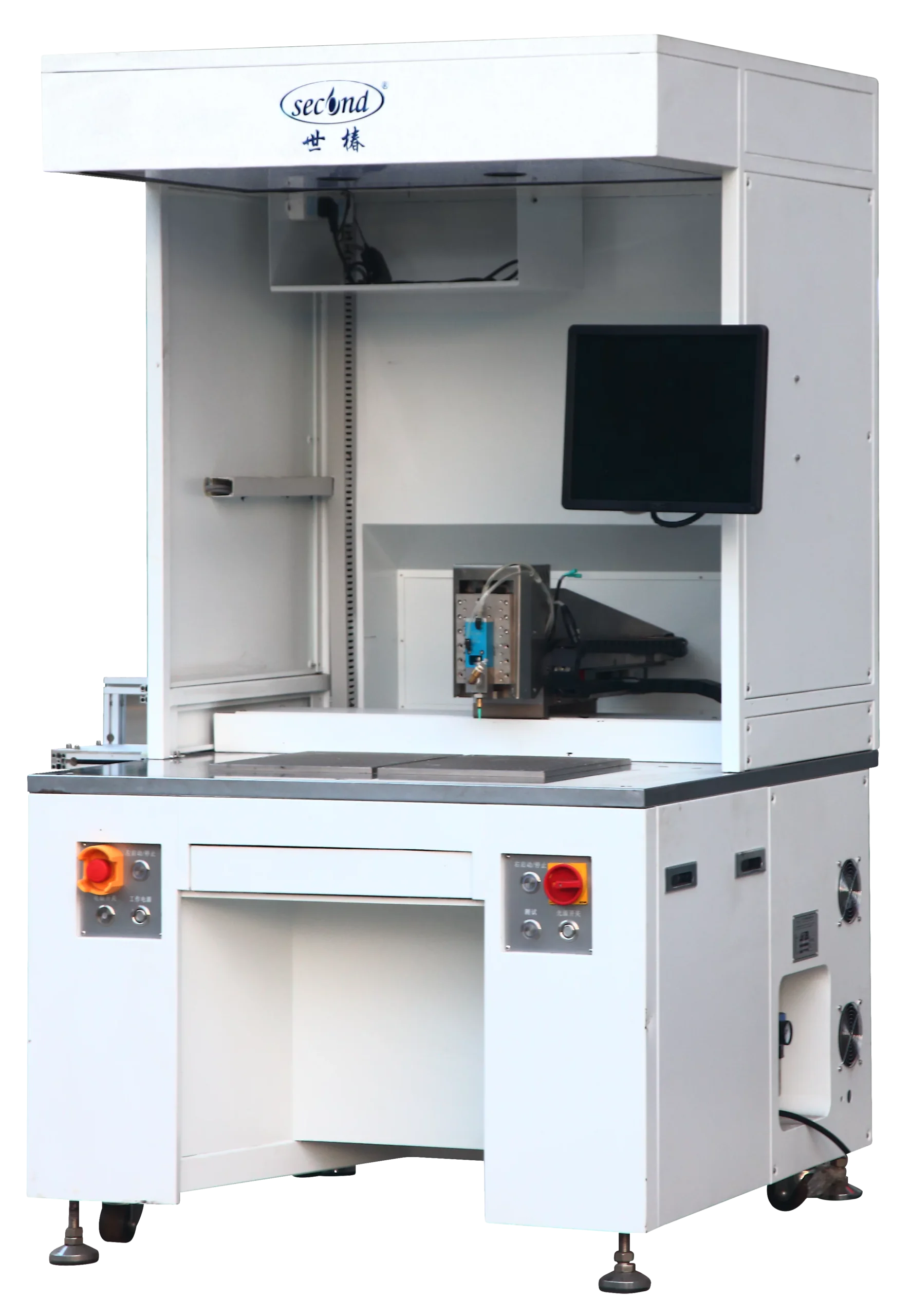

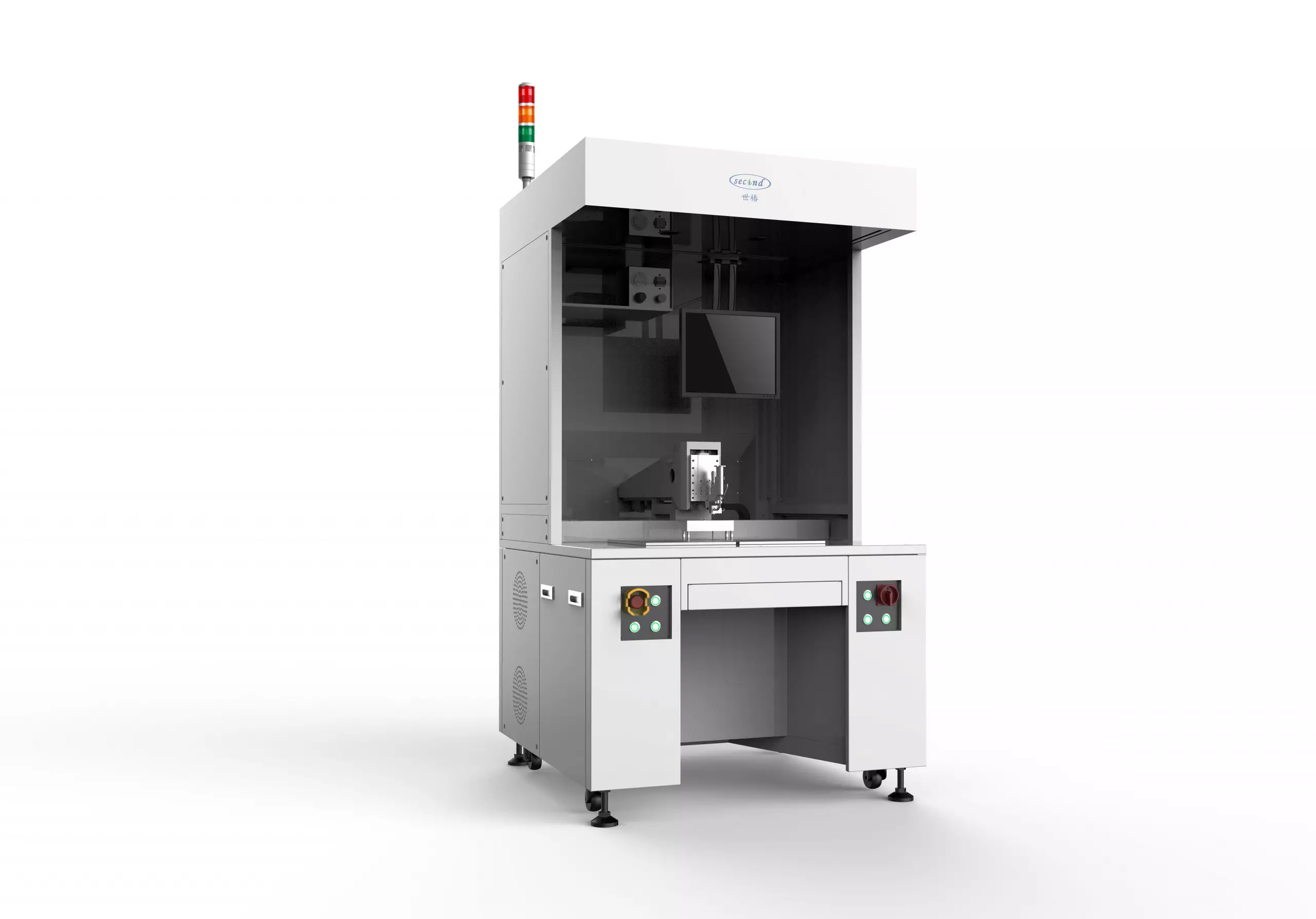

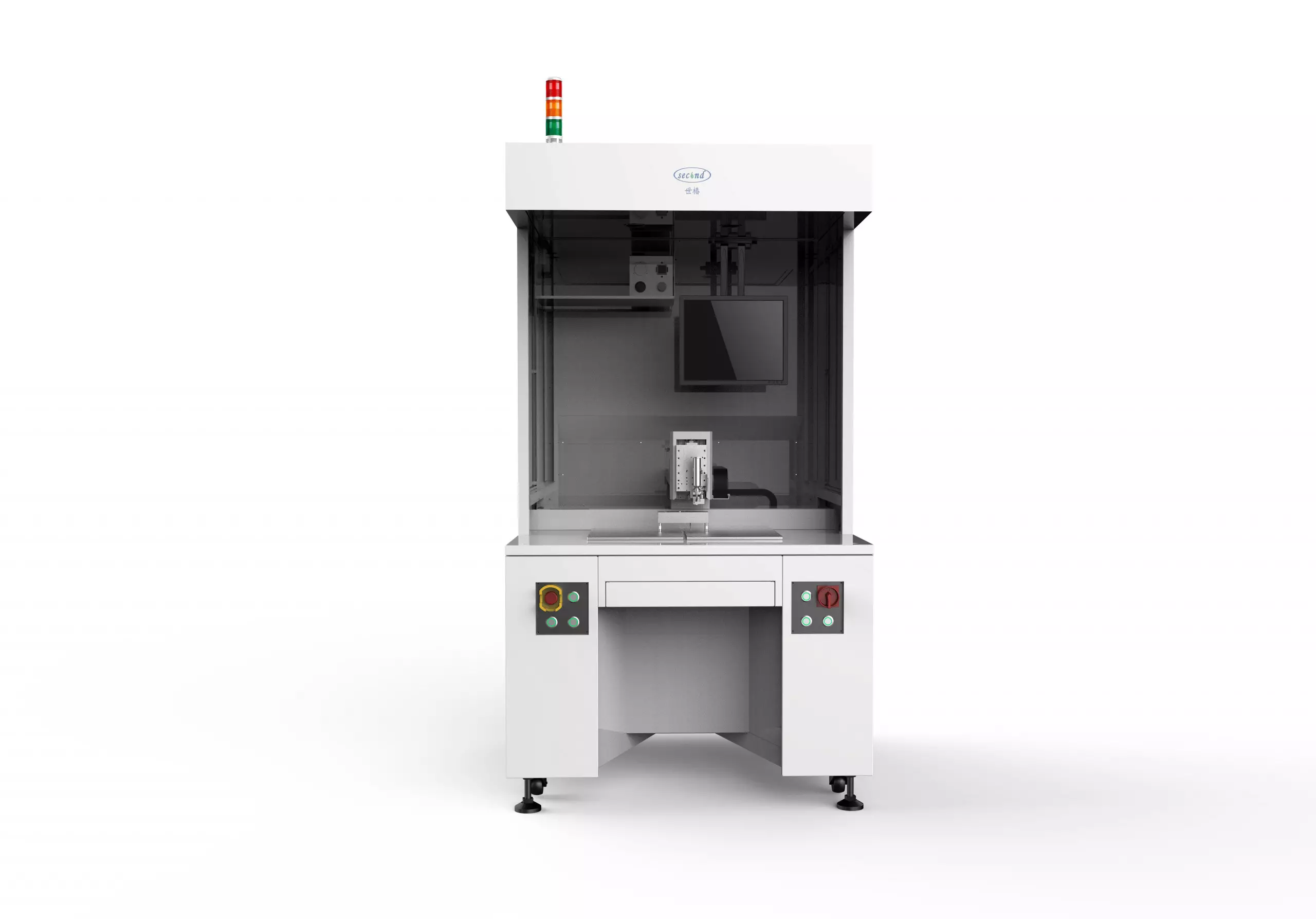

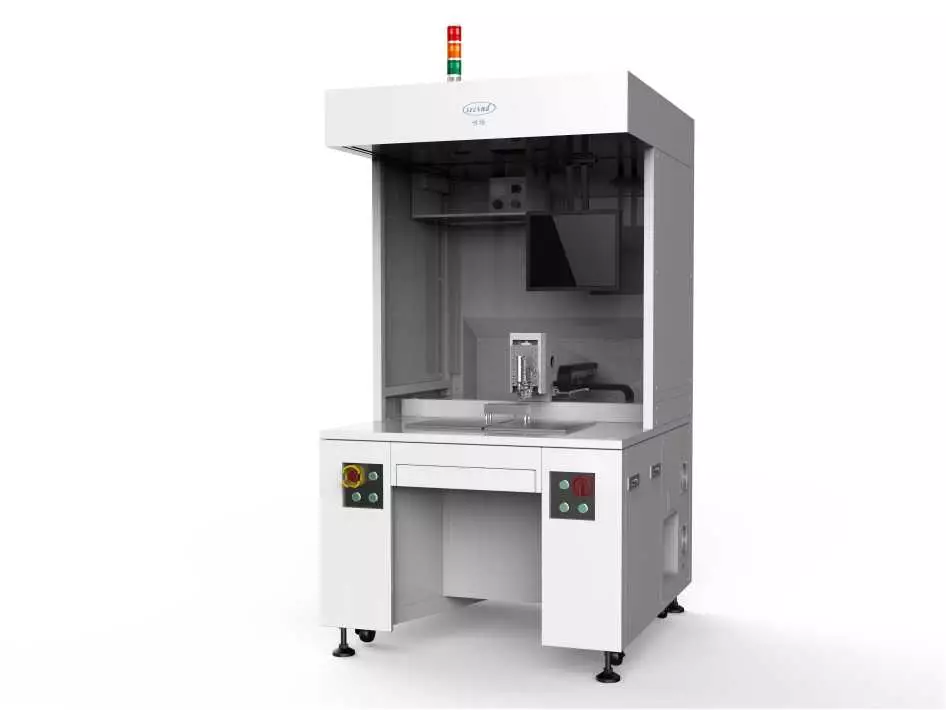

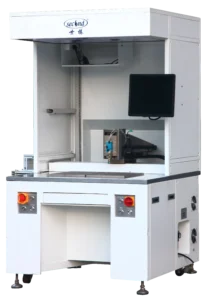

This industrial adhesive dispensing machine equips with smart-scanning system, the camera will capture the randomly placed products, and analyst to dispense. It is suitable for dispensing processes that has bigger dispensing spot, tolerance, and products that can be placed directly on the open and flat dispensing desk, such as charging plugs, electronic transformers, power-adapter dispensing and assembling.
Stability
This robotic system is applying cantilever structure, with XYZ three-axis movement design, it is light and flexible. It is using good quality parts and component to assure operating stability with low-maintenance.
User-friendly:
The dispensing machine equips with smart-scan visual system, therefore no jig is required, and the products can be randomly and disorderly placed manually. Reduced technical requirements and time for the machine operator.
Increase productivity:
Dual-dispensing-desks achieves uninterrupted dispensing operation and improves dispensing efficiency.
This dispensing machine equips with wide-angle image capture smart camera, it is able to perform automatic dispenisng on the products that are ramdomly place on the dispensing desk.
MaterialThe machine is able to equip with different dispensing systems for various types of ahesive glues, both single or two-components.
It is widely used in SMT industry, telecommunication, and consumer electronics industry, LED lighting industry, and is suitable for automated assembly line operations.
Model | SEC-D300 |
Dispensing range | 2×（150*200）*100mm |
Travel system | Servo-motor, ball-screw |
XY axis travel speed | Max：500mm/s |
Z-axis speed | Max：200mm/s |
XYZ repeat accuracy | ±0.02mm |
Z-axis payload | 5Kg |
Ground to working height | 810mm±20mm |
CCD visual | High definition camera and lens（CCD)2 units |
Visual light | LED projecting light |
Control system | Industrial computer, LCD monitor, key-board and mouse |
Operating system | Windows 10 |
Dispensing software | Second Fluent |
Machine dimensions | w1350mm*L1320mm*H2000mm |
Machine weight | 650Kg (est.) |
Power supply | AC220V,50/60Hz,2Kw |
Air-pressure | 0.65MPa±0.02MPa，0.2m³/h |
Applied to the home appliance, telecommunication, auto electronics, and various EMS production process. It is suitable for dispensing processes that has bigger dispensing spot, tolerance, and products that can be placed directly on the open and flat dispensing desk, such as charging plugs, electronic transformers, power-adapter dispensing and assembling.
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
