Functional features:
Suitable for pumping high-filler and high-viscosity glue
● Provide high output pressure
With pneumatic motor, pressure output ratio is 43:1;
(Example: According to the factory standard air pressure of 0.6Mpa, it can provide 25.8Mpa glue supply pressure)
● Provide large displacement: one circulation pump can deliver 170CC of fluid
● Has excellent wear resistance
a. The plunger rod is made of specially treated carbon steel or ceramic material;
b. The key structure that withstands impact and abrasion is nested with tungsten steel;
● Unique sealing structure design and the use of special sealing materials;
The above characteristics can greatly extend the life of the seal
● Easy installation and maintenance
The plunger rod and seal are easy to replace; Optional maintenance kit;
Multi functional trimming machine
Automatic cartridge grooming machine (trimming, leak testing, O-ring assembling, labeling, recording) SEC-S1860WT
Second piezoelectric jet valve
The FP series piezoelectric valve injection is a single-component volumetric metering valve. Its application scenarios are almost the same as those of pneumatic injection valves, but it uses piezoelectric drive. Compared with pneumatic injection valves , it has a higher dispensing rate and higher glue consistency, and can achieve a smaller amount of glue dispensing! It is widely used in a variety of high-precision dispensing occasions!
Universal Membrane Electrode Dispenser
Gasket strip/metal plate runner 3D visual inspection machine – SEC-H500-3D
Broken-gasket auto inspection, full coverage detection of whether the gasket has broken-glue (short dispense)
Gasket inspection: full coverage inspection of dispensed gasket contour (profile), not limited to:
Product thickness, surface level difference, runner depth, runner width and other dimensions detection.
Epoxy dispenser machine performance:
CCD video-assisted programming, large field of view to take pictures as a whole, automatic identification of product location.
Independently researched and developed R-axis needle head linkage rotation function, equipped with ceramic rotary valve, which is absolutely leading in the application field of conductive adhesive.
Gantry dispensing platform can be equipped with a variety of glue supply systems to meet multi-process and realize one machine with multiple uses.
The online dispenser can be flexibly equipped with automatic width adjustment, memory, weighing, code scanning, improve the information management level of the entire line of equipment.

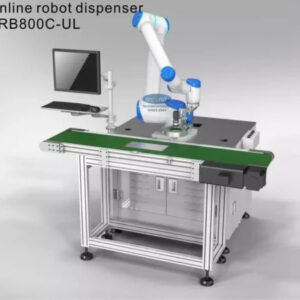

Six-Axis Robotic Arm Dispensing System :
This is automated industrial adhesive material dispensing robot works with Scara turntable dispensing machine SEC-NR550-UR
