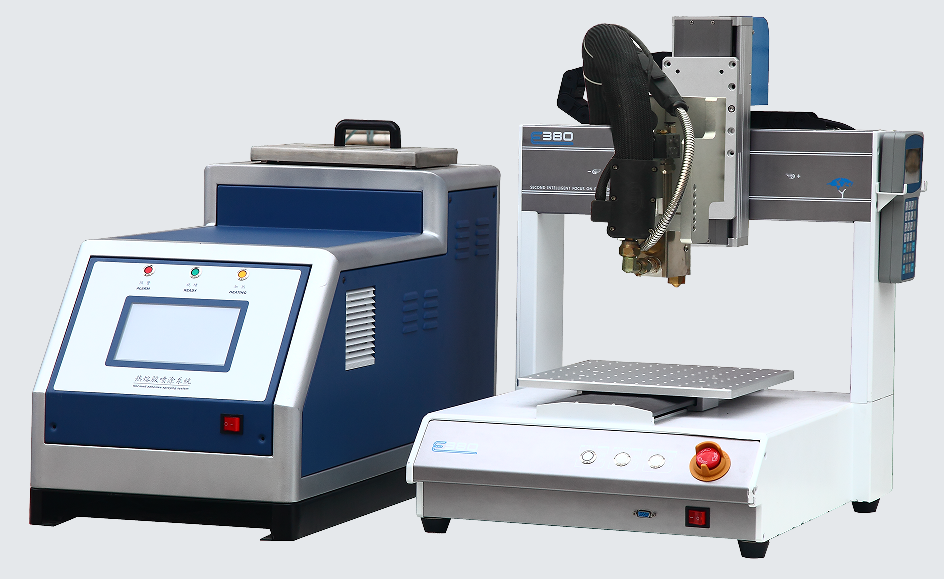

In industrial automated bonding and coating production lines, hot melt adhesive machines act as indispensable core fluid dispensing equipment. Boasting merits including solvent-free eco-friendliness, ultra-fast curing, high dispensing precision and superior production efficiency, hot melt systems have largely replaced conventional glue application equipment. They are widely adopted across hygiene products, packaging, electronics, automotive manufacturing, cosmetics and numerous other sectors. Modern intelligent hot melt adhesive machines integrate fully automatic workflows: solid hot melt melting, pressure-stabilized material feeding, precision spraying and consistent coating. They effectively resolve long-standing industry pain points of traditional gluing processes, such as excessive glue waste, uneven coating, low throughput and environmental pollution, making them critical supporting machinery for intelligent manufacturing transformation.
Established as a specialist in fluid dispensing and hot melt adhesive technology, Second Intelligent has developed a standardized, diversified portfolio of hot melt adhesive machines. The full product range is compatible with mainstream hot melt adhesives including EVA, PO, PSA and PUR, paired with complete dedicated accessories and multi-type spray guns to meet automated gluing requirements for diverse working conditions, precision standards and production capacities.
I. Core Working Principle of Hot Melt Adhesive Machines
The core operating logic relies on three integrated systems: constant-temperature melting, pressure-stabilized glue feeding and precision dispensing. Equipped with independent temperature control heating modules, the machine rapidly melts block or pellet solid hot melt adhesives into liquid glue with stable viscosity. Dedicated feed pumps driven by servo motors deliver steady conveying power, transferring liquid glue through insulated sealed hoses to end actuators including spray guns and dispensing valves. According to production process specifications, the equipment executes automated operations such as dot dispensing, line coating, blade coating and atomized spraying. Throughout the entire cycle, temperature, flow rate and pressure are precisely regulated to guarantee consistent, uniform gluing results.
Unlike traditional glue equipment, hot melt systems eliminate energy-intensive drying curing procedures and achieve instant room-temperature curing, drastically shortening production cycle times. Hot melt adhesives feature 100% solid content with zero Solvent volatilization, complying with strict modern industrial safety and environmental protection regulations.
II. Core Components & Functional Advantages

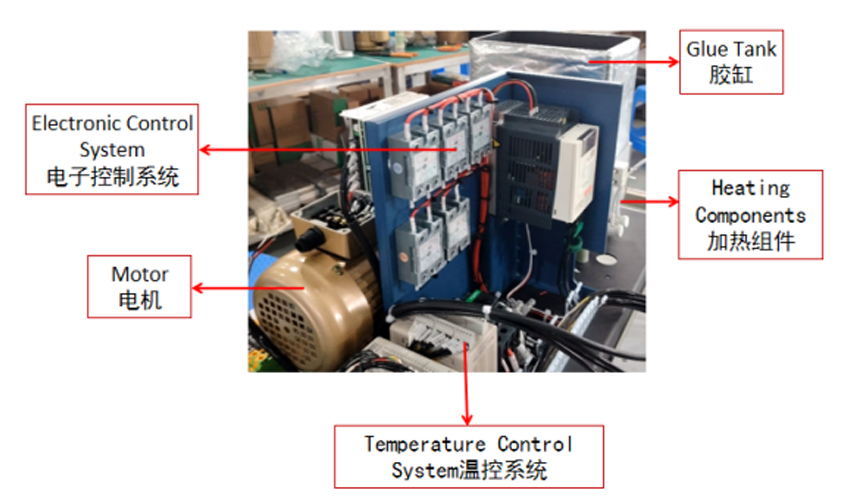

A high-performance, stable standardized hot melt adhesive machine consists of six core modular assemblies operating synergistically to form a complete automated gluing system. Customized functional options are available to accommodate special production environments.
1. Melt Tank Module
The melt tank serves as the core vessel for storing and melting hot melt adhesives. Multiple capacity options (5L, 6L, 10L, 25L, 50L) are offered for flexible selection based on production tact time and daily glue consumption, catering to both small-batch precision manufacturing and large-scale mass assembly lines. For special hot melts filled with pigments, fillers or prone to sedimentation and delamination, an optional stirring mechanism prevents glue precipitation, stratification and inconsistent mixing to sustain stable adhesive performance.

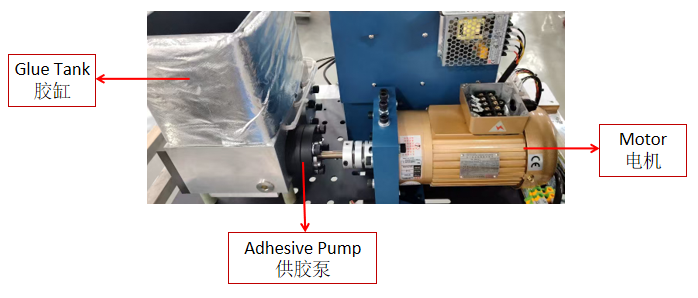

2. Feed Pump Assembly
Pumps are the critical components governing glue output flow and delivery pressure, with differentiated configurations for adhesives of varying viscosity and process requirements:
● Gear pumps (standard configuration): Ideal for general EVA, PO and PSA hot melts, featuring consistent output, reliable operation and cost competitiveness.
● Piston pumps (premium option): Designed for high-viscosity adhesives and high-pressure feeding processes, delivering stable high pressure to eliminate interrupted dispensing, leakage and flow fluctuation.
3. Drive Motor System
High-precision drive motors continuously output stable power, synchronizing pump operation and dynamically adjusting glue flow and delivery pressure. Constant glue output and uniform dispensing force fundamentally eliminate quality defects including uneven coating thickness, partial glue shortage and overflow, supporting non-stop operation on high-speed automated production lines.
4. Temperature Control System
As the intelligent core module of the machine, the temperature control system accurately regulates heating throughout melting and conveying. Matched with specialized heating elements, it maintains constant temperature for melt tanks, hoses and terminal spray heads. Consistent temperature transport stabilizes adhesive viscosity, preventing thermal carbonization from overheating or solidification from low temperatures. The adhesive remains at optimal fluidity at all times, significantly enhancing bonding and coating quality.
5. Electronic Control System
All core electrical components adopt internationally renowned brands such as Schneider. The mature, stable intelligent electric control system features visual parameter adjustment, one-click start/stop, automatic fault diagnosis and parameter memory. User-friendly with rapid response, the system supports long-duration continuous heavy-duty operation, lowering equipment failure rates and post-installation maintenance costs for high-volume industrial production.
III. Matching Heated Hoses: Ensuring Constant-Temperature Glue Transport

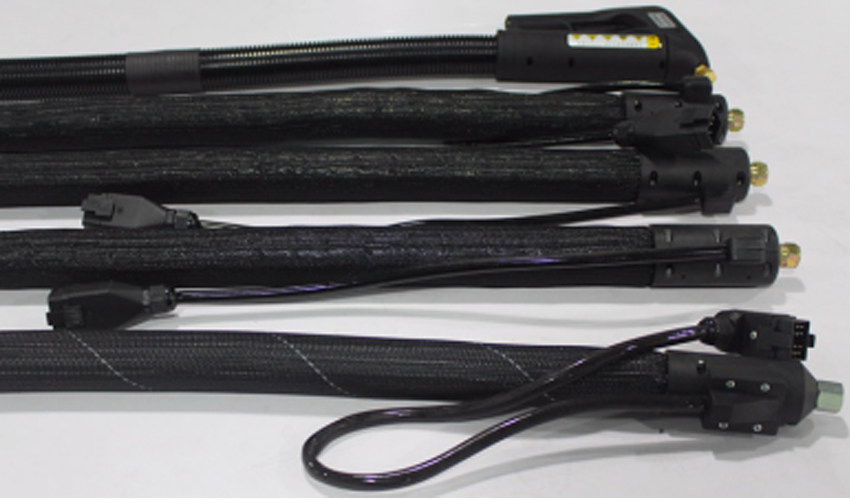

Heated hoses connect the main hot melt machine to spray guns, directly determining dispensing stability during long-distance glue delivery. Custom insulated heated hoses integrate efficient internal heating systems and multi-layer thermal insulation, maintaining constant glue temperature in transit to resolve common issues including viscosity spikes, partial solidification and hose blockage caused by heat loss over extended transport distances. Hoses can be customized to various lengths and inner diameters to fit different line layouts, variable delivery distances and glue throughput demands, sustaining glitch-free consistent dispensing under complex working conditions.
IV. Multi-Type Spray Gun Configurations for Full-Spectrum Gluing Processes
To satisfy differentiated gluing requirements across industries, hot melt machines support a full lineup of dedicated spray guns compatible with dot dispensing, line coating, blade coating, atomized spraying and large-area continuous coating, delivering exceptional process adaptability.

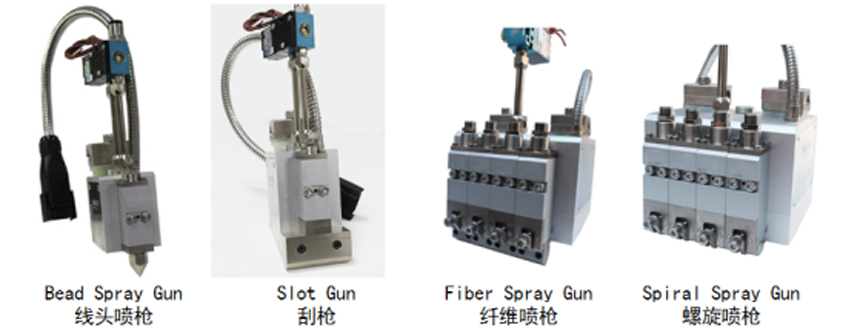

1.Bead Spray Guns: Versatile general-purpose tools for precision dot and linear dispensing, suitable for fixed-point gluing, continuous edge sealing and standard line coating, featuring high precision and uniform glue bead formation.
2.Slot Guns: Contact-type applicators supporting single/multi-layer large-area blade coating with controllable coating thickness, ideal for flat substrates including sheet panels, gift boxes and paper packaging.
3.Fiber Spray Guns: Atomize hot melt into micro-fiber filaments to form ultra-thin full-surface coverage. While maintaining robust bonding performance, they drastically reduce adhesive consumption and cut production material costs.
4.Spiral Spray Guns: Generate uniform mesh-shaped adhesive layers with full coverage and excellent air permeability, boosting lamination adhesion for breathable bonding and wide-format spraying applications.
For wide-format mass production, synchronized multi-gun linkage control is supported, with a maximum spraying width of 1600mm, perfectly matching high-speed wide-format automated lines and drastically lifting overall production throughput.
V. Compatible Adhesive Types Covering Diverse Industrial Demands
Second Intelligent hot melt adhesive machines support mainstream commercial hot melt formulations. Beyond general EVA, PO and PSA adhesives for basic bonding, sealing and coating applications, customized dedicated PUR hot melt systems are available in 5-gallon and 55-gallon models. PUR equipment delivers high-strength, high-temperature and weather-resistant bonding performance, compensating the limitations of standard hot melts. It meets stringent process standards for premium manufacturing and precision component assembly, expanding the scope of applicable industrial scenarios.
VI. Main Industrial Application Scenarios
With core strengths of environmental sustainability, high efficiency, precision and universal adaptability, fully automatic hot melt adhesive machines have become essential equipment for bonding workflows across automated manufacturing sectors:
1.Hygiene Products Industry: Widely applied to interlayer lamination and structural bonding for disposable diapers, sanitary napkins and adult care products. High-speed uniform spraying adapts to ultra-fast mass production lines for hygiene goods.
2.Packaging Industry: Suitable for carton sealing, folding box assembly, paper bag fabrication and label lamination. Fast curing and robust adhesion improve packaging production efficiency and finished product yield rates.
3.Cosmetics Industry: Tailored for precision packaging bonding of lipsticks, perfume bottles and luxury gift sets, featuring zero glue overflow and stringing-free dispensing without compromising product appearance.

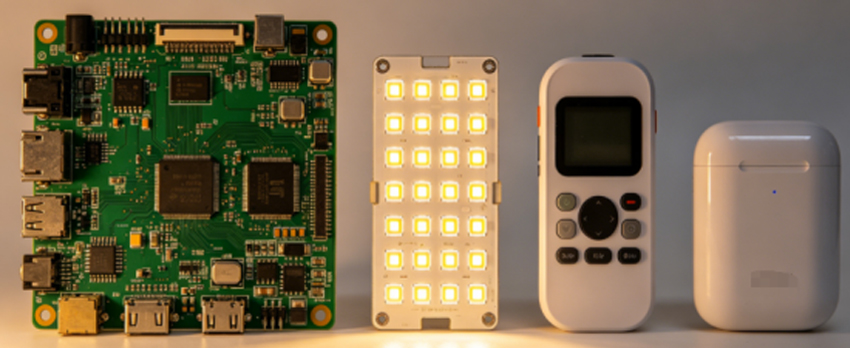

4.Electronics Industry: Used in PCB assembly, LED component mounting and consumer electronics assembly. Precision micro-dispensing delivers reliable insulation and sealing, complying with strict precision electronics manufacturing standards.
5.General Manufacturing & Automotive Industry: Meets process requirements for automotive interior bonding, filter production, home appliance assembly and new energy component lamination. Robust equipment stability supports heavy-duty production demanding long-term reliability.
VII. Conclusion
Accelerated upgrades toward automation, precision and green manufacturing render manual gluing and crude crude adhesive dispensing equipment obsolete for modern production standards. Intelligent hot melt adhesive machines stand out as the preferred solution for automated gluing processes, featuring modular configurations, precision temperature control, pressure-stabilized feeding, multi-process compatibility and eco-friendly high-efficiency operation.
Second Intelligent specializes in R&D for fluid dispensing robot and hot melt adhesive technology. We deliver customized hot melt dispensing solutions tailored to client product processes, production capacities and adhesive properties. Our full-service support covers equipment selection, accessory matching, process commissioning and after-sales maintenance, enabling enterprises to achieve precise, efficient and intelligent transformation of their gluing workflows.
