As smartphones face increasingly stringent requirements for battery life, fast charging, and safety, the battery protection circuit board (PCM), as the “brain” and “safety guardian” of the battery, is facing unprecedented challenges in its manufacturing process. How can we prevent short circuits or failures caused by moisture, corrosion, and vibration? This article will delve into the industry’s currently recognized optimal solution—an online fully automated precision dispensing and coating solution—to help companies achieve zero-defect manufacturing.
Ι. Why is Protective Adhesive Indispensable for Mobile Phone Battery Control Boards?
Mobile phone battery protection boards typically consist of ICs, MOSFETs, resistors, capacitors, and FPCs. Within the confined space of a mobile phone, the battery protection board faces three major threats:
Moisture and Salt Spray Corrosion: Sweat or accidental water ingress causes electrochemical migration, leading to short circuits.
Vibration and Drop Stress: Solder joints and components develop micro-cracks over long-term use.
Conductive Foreign Matter: Tiny metal particles from manufacturing or use can bridge circuits.
Protective adhesive ( conformal coating System or underfill dispensing system ) forms an insulating protective layer on the component surface, effectively isolating moisture and buffering stress, reducing PCM failure rates by over 90%.
1.Traditional Manual Dispensing vs. Inline Equipment: Why the Necessity of Upgrading?
Many manufacturers still use manual or semi-automatic dispensing, but its drawbacks are becoming increasingly prominent:
Comparison Dimensions | Manual/Semi-automatic dispensing | Inline Precision coating equipment |
consistency | Uneven glue application, presence of air bubbles or dew points | Precise measurement down to ±0.01mg, with zero variation. |
accuracy | It is difficult to control the gap within 0.5mm. | Minimum line width 0.3mm, precisely avoiding the gold fingers. |
efficiency | Relying on skilled workers, slow speed | High-speed injection of 200 points/second, fully automated production line. |
glue waste | Frequent needle replacements waste a lot of money | Non-contact spraying, glue utilization rate >99%. |
MES Integration | Untraceable | Data is uploaded throughout the entire process, allowing for the traceability of every single battery. |
Conclusion: For high-density, high-value components like mobile phone battery control boards, inline precision coating has gone from an “optional” to a “standard feature.”

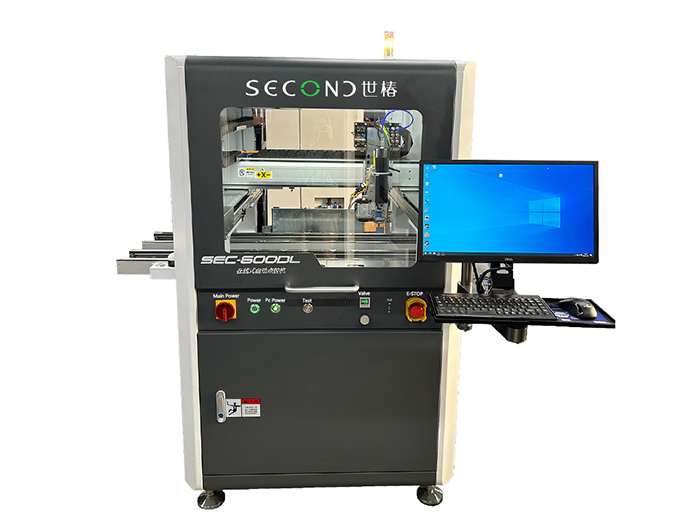

SMT automatic glue dispenser SEC-DH600L
Second Intelligent high precision smt automatic glue dispenser machine apply epoxy resin to the bottom of the PCB board for underfill
Second Intelligent smt automatic glue dispenser automation SEC-DH600L has the following advantages:
● CCD visual programming precise positioning, visual correction, improve programming efficiency and dispensing accuracy;
● Chinese and English operating system, the software interface layout is clear, the operation is simple, easy to learn and understand;
● Support visual inspection, integrated control of dispensing and visual inspection, multi-purpose machine, effective control of dispensing yield;
● It can be equipped with a lin e laser scanner for 3D path guidance and flexible dispensing;
● The software can support a variety of dispensing systems and functional module applications, such as automatic needle alignment, automatic
height measurement, dispensing weighing compensation, five-axis linkage and other functions, which can effectively overcome the difficulties of
various dispensing processes and help improve quality;
III. Analysis: Inline Precision Dispensing Solution for Mobile Phone Battery Control Boards
A mature online precision dispensing solution should include the following core technology modules:
1. Vision Positioning System
● Function: Automatically identifies the Mark points on the PCB board using a high-resolution CCD camera, compensating for incoming material position deviations.
● Value: Even with a 0.1mm offset in the battery control board fixture placement, the dispensing path can still precisely adhere to the pad edges.
2. Non-Contact Jet Valve
● For the densely packed 01005 and 0201 components on the battery protection board, traditional contact needles can bend the components. The spray valve “shoots” the adhesive droplets to the designated location at high speed, eliminating the risk of contact due to Z-axis movement.
● Minimum adhesive volume can reach 1nL, suitable for filling narrow gaps.

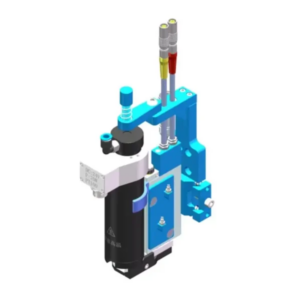

Piezoelectric jet valve F-P102
3.Dual Valve/Tilting Rotation Mechanism
● Mobile phone battery control boards often have vertical structures such as sides and connector roots. An angled rotating dispensing valve can achieve ±35° tilt dispensing, covering all dead angles.
● Dual valves operate synchronously, nearly doubling efficiency. 4. Closed-Loop Adhesive Dosing and AOI Inspection Integration
● Real-time detection of adhesive dot diameter and height, automatically compensating for changes in adhesive viscosity.
● Integrated with online AOI (Automatic Optical Inspection) at the back end, automatically identifying adhesive leakage, overflow, and stringing, immediately triggering an alarm or rejecting defective products.
Ⅳ.Practical Application Scenarios: Three Typical Dispensing Processes
This solution can be configured with three core processes for different mobile phone battery protection board designs:
1. Frame Sealing
Apply a ring of conformal adhesive around the protection board to form a “dam” and prevent moisture from entering from the sides. Requirements: Smooth trajectory, no accumulation at corners.
2. Partial Encapsulation
Apply a “cap-like” encapsulation to ICs or MOSFETs to improve thermal conductivity and shock resistance. Requirements: Complete adhesive coverage, no voids.
3. Lead Wire Reinforcement
Apply UV adhesive to the connection between the connector gold wire and the solder pad to enhance bending life. Requirements: Adhesive amount accurate to nanoliters, no contact contamination.
Ⅴ.Five Key Indicators for Selecting Inline Dispensing Equipment
When selecting equipment, companies should focus on the following performance parameters:
1.Repeatability: Must reach ±0.01mm level.
2.Minimum Dispensing Volume: Able to stably output adhesive dots below 0.002mg.
3.Adhesive Compatibility: Supports various media such as hot melt adhesives, UV adhesives, silicone, and epoxy resins.
4. Software Programming: Supports CAD import or direct image programming, enabling new machine model changeovers within 5 minutes.
5.Maintenance Costs: Are the nozzles of the spray valve easily damaged? Can they be quickly disassembled and cleaned?
Ⅵ. Success Story: Application Results from a Top 5 Battery Module Manufacturer
Customer Pain Points: A customer produces 3 million mobile phone battery protection boards per month. Due to uneven adhesive application by manual dispensing, the customer return rate is as high as 1.2%, and abnormal temperature rise occurs during fast charging.
Solution Implementation: Deploy two online fully automatic spray dispensing machines, coupled with automatic loading and unloading and AOI inspection.
Results:
● Improved Yield: 100% protective adhesive coverage, customer return rate reduced to 0.08%.
● Improved Efficiency: Coating time for each battery control board reduced from 6 seconds to 1.2 seconds.
● Cost Savings: 35% reduction in adhesive usage, saving 4 dedicated dispensing workers.
● Quality Traceability: Adhesive pattern images and adhesive quantity data for each battery board are uploaded to the MES system, enabling full lifecycle management.
VII. Future Trends: Intelligent Closed-Loop Coating
With the development of AI technology, online precision coating solutions are moving towards a “self-learning” stage. The equipment can automatically correct the dispensing parameters of adjacent products based on defects detected by real-time AOI, achieving dynamic compensation for incoming material warpage and changes in environmental temperature and humidity.
Conclusion:
The dispensing of protective adhesive for mobile phone battery control boards is no longer a simple matter of “applying it on,” but rather a high-precision manufacturing revolution focused on accuracy, efficiency, and data. Adopting an online precision coating solution not only solves the current pain points of short circuits and rework, but is also an essential path for enterprises to move towards Industry 4.0 and enhance their core competitiveness.
Second Intelligent has played an important role in theresearch, development, manufacturing, pre-sales and after-sales services of fluid dispensing robot, potting and coating solutions which range from various types of automatic fluid dispensing, potting, two-component potting machines and coating machines with desktop, free-standing, inline or cobot combined systems, and widely used in global electrical, electronics, home appliances, automobile, telecom, pharmaceutical, automotive electronics, semiconductor, aerospace, LED and more.
