Amid rapid iteration in automotive electronics, 3C consumer electronics and semiconductor manufacturing, fluid processes including PCBA component sealing, RTV silicone dispensing, potting and conformal coating machine have become critical procedures restricting product yield and production line throughput. As a domestic supplier of automated fluid application solutions, Shenzhen Second Intelligent Equipment Co., Ltd. continuously delivers mature equipment such as the benchtop dispenser machine SEC-E480SP and in-line dispenser SEC-DH600L in batches to Fortune 500 corporations and industry leaders at home and abroad. With domestically manufactured precision fluid equipment, we help global manufacturing plants realize capacity expansion, yield improvement and digital transformation.
Two Decades of Deep Cultivation in Fluid Automation: Solid Strength Wins Trust from Global Top-tier Customers
Founded in 2005, Second Intelligent has focused on precision dispensing, potting and coating for over 20 years. It is a national-level Specialized, Refined, Unique and Innovative “Little Giant” enterprise. The company has more than 400 employees, two production bases with a combined area of over 30,000 m², and holds more than 300 core technical patents. Its products have passed authoritative certifications including ISO9001, IATF16949 and CE.
After years of technical accumulation, the company independently develops and manufactures core components covering motion control, dispensing valves, glue feeding systems and visual inspection, breaking the monopoly of overseas equipment. Our products are sold to more than 50 countries worldwide. We have established a distributor and technical service network covering Southeast Asia, Europe, Latin America and other regions, serving over 5,000 customers at home and abroad including multiple Fortune 500 enterprises across automotive electronics, new energy, 3C electronics, semiconductors, home appliances and other sectors.
To meet diversified production requirements from top customers, Second Intelligent has built two dispenser product matrices: benchtop offline units and assembly-line in-line machines. The portfolio supports flexible sampling and low-volume, high-mix production as well as continuous high-volume assembly-line operation. It is compatible with 2600ml large-packaged one-component RTV silicone, widely adopted for root sealing and gap sealing dispensing of components on PCBA boards, addressing process pain points of electronic components against moisture, dust and vibration.
Two Flagship Models Covering Two Scenarios: Flexible Standalone Operation and Assembly-line Mass Production

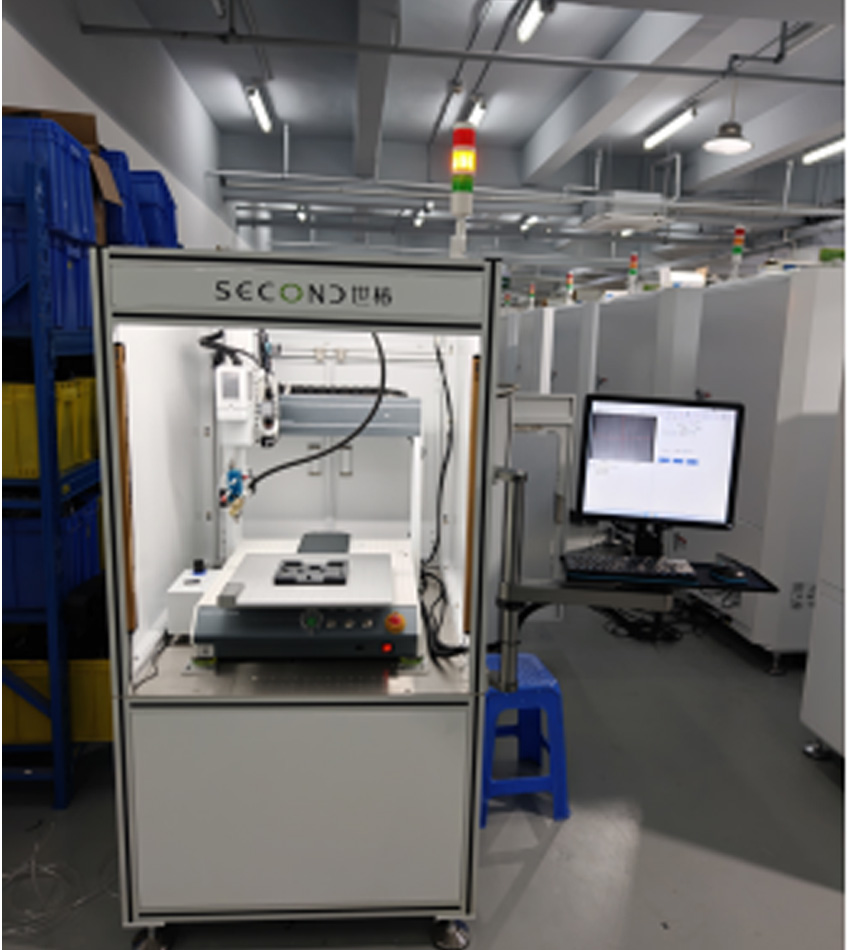

● SEC-E480SP Benchtop RTV Dispenser
Designed for laboratories and flexible low-to-medium volume production lines. The enclosed machine footprint is only 1000×1000 mm with a height of 1726 mm. It can be deployed flexibly and put into operation quickly without factory renovation.
(1)Motion performance: The manipulator features an X/Y/Z working travel of 480×480×100 mm and XYZ repeat positioning accuracy of ±0.015 mm. Equipped with a 5-axis mechanism, it supports rotary & tilt dispensing, easily completing dispensing on special-shaped curved surfaces at component roots.
(2)Intelligent vision system: Integrated with a 1.3MP CCD visual positioning module and laser height sensor. It recognizes and positions Mark points to automatically correct product offset. The laser height sensor detects dispensing surface height in real time with automatic height compensation and out-of-tolerance alarm, preventing dispensing defects caused by product deformation.
(3)Glue feeding & valve assembly: Standard 2600ml pressure tank glue feeding system compatible with large-drum RTV silicone, with buzzer alarm for low glue level. Fitted with FH101 medium suck-back valve. Suck-back shutoff eliminates stringing and dripping, supporting adhesives with viscosity ranging from 0 to 100,000 cps.
(4)Operating system: Win11 industrial control system. It supports continuous interpolation for dots, lines, arcs and irregular curves. MES connectivity is optional for factory production data traceability. Only one operator is required for machine operation.
This model is suitable for new product process verification and frequent model changeover for small-batch production. Many Fortune 500 enterprises widely deploy this machine in R&D workshops and pilot lines, before rolling out in-line mass-production dispensers after process validation.
● SEC-DH600L In-line Dispenser
Built for large-scale assembly-line production. It connects to the customer’s existing chain conveyor to achieve fully unattended workflow: product infeed → visual positioning → dispensing → automatic outfeed. The machine footprint is 1250×1400×1757 mm. It perfectly meets high-volume PCBA sealing dispensing requirements; custom dimensions are available.
(1)High-speed gantry motion mechanism: X/Y working travel of 600×600 mm, maximum XY moving speed up to 800 mm/s, repeat positioning accuracy ±0.015 mm. The full machine adopts an 8-axis configuration integrating conveyor and ZR rotary-tilt mechanism, compatible with multi-angle complex dispensing trajectories.
(2)Automated production line accessories: Chain conveyor with adjustable width from 80 mm to 400 mm. It supports automatic tray feeding, stopping and jacking positioning. An automatic nozzle cleaning module is equipped to clean the needle periodically, reducing manual intervention and supporting long uninterrupted production.
(3)Vision & height sensing: Also equipped with Hikvision CCD vision system plus laser height sensing unit for incoming Mark recognition and automatic trajectory compensation. Compatible with multiple coaxial, ring and bar light sources to handle complex reflective and dark product surfaces.
(4)Mature glue feeding system: Standard 2600ml pressure tank feeding and medium suck-back valve, compatible with RTV silicone, thermal conductive gel and epoxy adhesive. Win10 system, supports SECS/GEM communication and MES connection for uploading and archiving production data.
From benchtop standalone units for R&D sampling to in-line assembly-line machines for mass factory production, Second Intelligent provides Fortune 500 customers with full-lifecycle services including pre-sales process sampling, solution design, equipment delivery and after-sales maintenance.
Sustained Bulk Shipment, Empowering Top Customers with Higher Capacity and Yield
Many Fortune 500 corporations and global manufacturing leaders suffer from pain points in PCBA sealing, automotive controller, power module and power board production via traditional manual dispensing: poor consistency, low efficiency and excessive glue waste. After introducing Second Intelligent equipment, three major values are delivered:
(1)Higher production efficiency: In-line models link with production lines for automatic material flow and less manual loading/unloading. Capacity is even doubled in some projects. Benchtop units shorten changeover and commissioning time for new products, enabling flexible response to mixed orders.
(2)Better product yield: With visual positioning, laser height compensation and rotary-tilt dispensing mechanism, the equipment solves the challenge of dispensing into narrow gaps at component roots. Dispensing trajectory and glue volume remain highly stable, drastically reducing defects such as excess glue and missing glue.
(3)Digitalized control: The machines support connection to customers’ MES systems. Dispensing parameters, production counts and alarm logs are fully traceable, satisfying the strict quality control requirements of Fortune 500 companies.
At present, Second Intelligent dispensers are widely applied for sealing of automotive electronic controllers, power semiconductor IGBT modules, home appliance control boards and communication module PCBA assemblies. We serve leading domestic manufacturers expanding overseas production and deliver directly to overseas factories with installations in Southeast Asia, Europe, Mexico and beyond. Domestic fluid equipment is playing an important role on the global manufacturing stage.
Looking Ahead: Empowering Global Smart Manufacturing Upgrade with Domestic Fluid Equipment
Driven by booming new energy vehicle, power semiconductor and 5G communication industries, sealing and dispensing standards for PCBAs and power devices keep rising. Customers demand higher precision, stability, intelligence and flexibility from dispensing equipment.
Second Intelligent keeps investing in R&D and iterating core products including the benchtop SEC-E480SP and in-line SEC-DH600L. We keep supplying fluid dispensing equipment in batches to Fortune 500 and global manufacturing enterprises. Beyond standalone machines, we deliver complete process solutions. Going forward, Second Intelligent will continue to deepen its presence in dispensing, potting and conformal coating tracks, uphold independent innovation, and leverage Chinese intelligent-manufacturing fluid automation equipment to continuously boost productivity and quality for global manufacturing.
